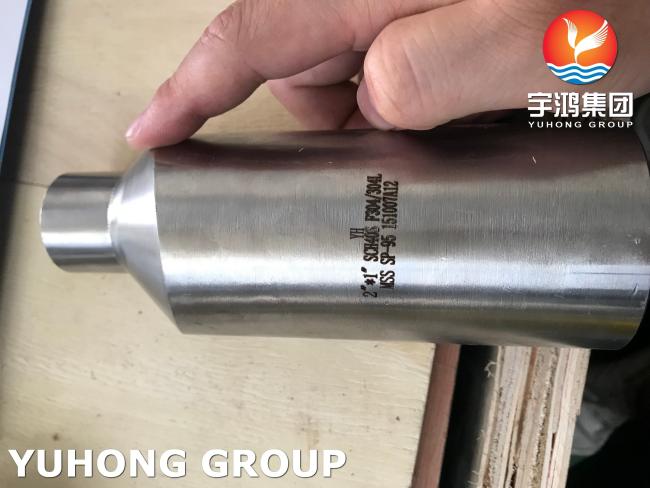

ASTM A182 F304 SWAGE Forged Fitting B16.11 Oil Gas Chemical Petroleum electric power
Price:
Negotiable
MOQ:
1PC
Delivery Time:
Depends on quantity
Brand:
YUHONG
Product Description
ASTM A182 F304 SWAGE Forged Fitting B16.11 Oil Gas Chemical Petroleum electric power
What is A182 F304?
ASTM A182 F304 specification covers forged or rolled alloy and stainless steel pipe flanges, forged fittings, and valves and parts for high-temperature service.
Chemical Composition Of ASTM A182 F304
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
| 304L | min. max. | - 0.030 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 12.0 | - 0.10 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Mechanical Properties of ASTM A182 F304
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Applications
Oil & Gas
Chemicals & Fertilizers Indutries,
Sugar Mils,
Cement Industries,
Ship Building,
Paper Industries,
Petrochemicals, etc.
