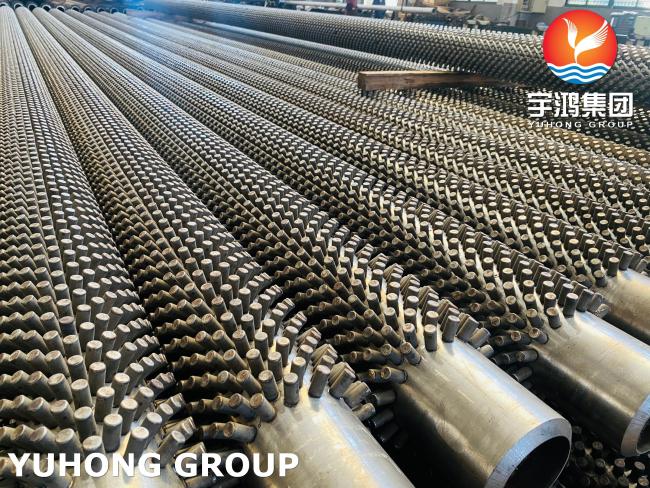

What is studded fin tube?
Studed fin tube is made by electrical resistance welding specially formed studs(round pins ) in rows around the tube. The Studs can be supplied in a variety of sizes and shapes. Stud tube has a very high heat transfer efficiency. The heat exchange efficiency is equivalent to 2-3 times that of the bare pipe.
Features of a Studded Fin Tube:
-It occupies less space and is, therefore, compact
-Highly durable
-Preferred over Finned tubes as they act as heat transfer systems
-Enhanced performance
Manufacturing Range (Studded Fin Tube):
|
Sr. No |
Particulars |
Range |
|
1 |
Base Tube Material |
Stainless Steel, Carbon Steel, Alloy Steel, Titanium , Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit) |
|
2 |
Base Tube Outside Diameter |
60 mm to 200 mm |
|
3 |
Base Tube Thickness |
3 mm to 12.70mm Above |
|
4 |
Base Tube Length |
2000 mm Min To 15000 mm |
|
5 |
Stud Material |
Carbon Steel/Stainless Steel/Alloy Steel |
|
6 |
Stud Thickness |
6mm to 16mm |
|
7 |
Stud Density |
15.88mm or 63 Studs Per Plate Per Meter (Can Be Customized to Clients Requirements) |
|
8 |
Stud Height |
12.7mm to 63.5mm |
|
9 |
Bare Ends |
As per Client Requirement |
Size Reference for Different Types of Finned Tubes
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tueb | 16-63 | 2.1-5 | <17 | ~0.4 |
| Extruded | Single metal combined metal | 8-51 | 1.6-10 | <17 | 0.2-0.4 |
| Low fin tube t-type fin tube | 10-38 | 0.6-2 | <1.6 | ~0.3 | |
| Bamboo tube corrugated tube | 16-51 | 8-30 | <2.5 | / | |
| Wound | l/kl/ll type fin tube | 16-63 | 2.1-5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3-25 | 5-30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8-30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8-30 | 5-35 | φ5-20 | |
Chemical Composition of TP316L
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 |
Equivalent Material of 316L
| Grade | UNS No | Old British | Euronorm | Swedish SS |
Japanese JIS |
||
| BS | En | No | Name | ||||
| 316L | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
Physical Properties of ASTM A312 TP 316L Seamless Pipes
| Grade | Density (kg/m3) |
Elastic Modulus (GPa) |
Mean Co-eff of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) |
Specific Heat 0-1000C (J/kg.K) |
Elec Resistivity (nΩ.m) |
|||
| 0-1000C | 0-3150C | 0-5380C | At 1000C | At 5000C | |||||
| 316/L/H | 8000 | 193 | 15.9 | 16.2 | 17.5 | 16.3 | 21.5 | 500 | 740 |
Mechanical Properties
| Tensile Requirements | TP316 | TP316L |
|---|---|---|
| Tensile Strength min. MPa [ksi] |
515 [75] |
485 [70] |
| Yield Strength min. MPa [ksi] |
205 [30] |
170 [25] |
| Elongation in 2", min, % (*L) |
35 | 35 |
| Elongation in 2", min, %(*T) |
25 | 25 |
Applications:
Steel studded tubes are used instead of finned tubes for heat transfer in the petrochemical industry, generally in furnaces and boilers where the surface is exposed to a very corrosive environment and where very dirty gas streams require frequent or aggressive cleaning.
