ASTM A335 P11 P22 P9 P91 Alloy Steel Studded Fin Tube For Heat Exchangers

ASTM A335 P11 P22 P9 P91 Alloy Steel Studded Fin Tube For Heat Exchangers

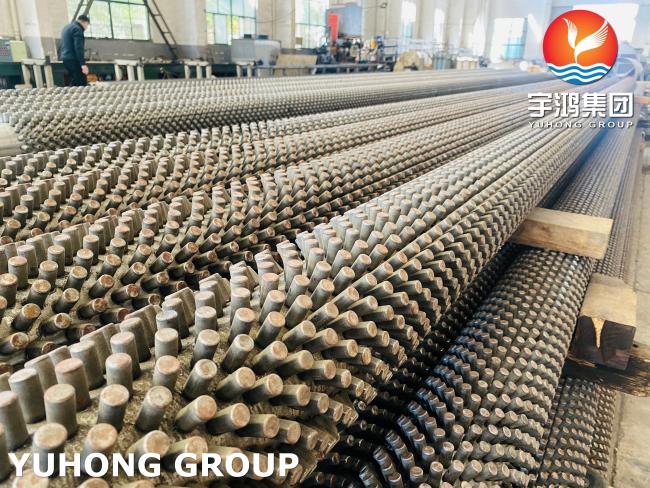

Studded Fin Tube is made by electrical resistance welding specially formed studs(round pins) in rows around the tube. The Studded fin tubes are also named pin fin tube. Studded tubes have a very high heat transfer efficiency. The heat exchange efficiency is equivalent to 2-3 times that of the bare tube. Studded fin tubes are generally used in furnaces and boilers of which the surface is exposed to corrosive environment. It can also increase efficiency in the process of heat recovery and direct flame hostile atmospheres. Studded fin tubes are ideal for processes applications where dirty fuels are used and harsh environments. They can be more easily cleaned especially for operating cases with dirty flue gas produced by burning heavy oil, diesel.

Base Tube Material:

stainless steel, carbon steel,alloy steel

Material Grade:

A335 P1,P5,P9,P11;

A213 T9,T11,T22,TP304,TP316/316L,TP321;

A106GrB;

A210 Gr A1, A210 Gr C; A192

A213 TP304/304L, TP316/TP316L, TP321, TP310S, TP317

Studs Material:

Carbon steel ASTM A510 grade 1005 to 1010

Stainless steel AISI 304, 316, 410, 347, 321.

A193 Grade: B6, B6X, B8, B8a, B8M, B8C. Cr-Mo alloy etc.

Base Tube O.D:31.75-165mm

Stud Height:10-60mm

Stud Pitch: As Customer's Request.

Ends: Plain Ends, Beveled Ends

Bare Tube Length On Both Side:As Customer's Request.

Specifications:

Applications:

• Air Coolers
• Heat Exchangers & Boilers
• Power plants
• Petroleum Industry
• Chemical industry
• Wood industry
• Food industry
• Steel Industry
• Fabrication Industry
• Oil & Gas Plants
• Petrochemical refineries Plants
