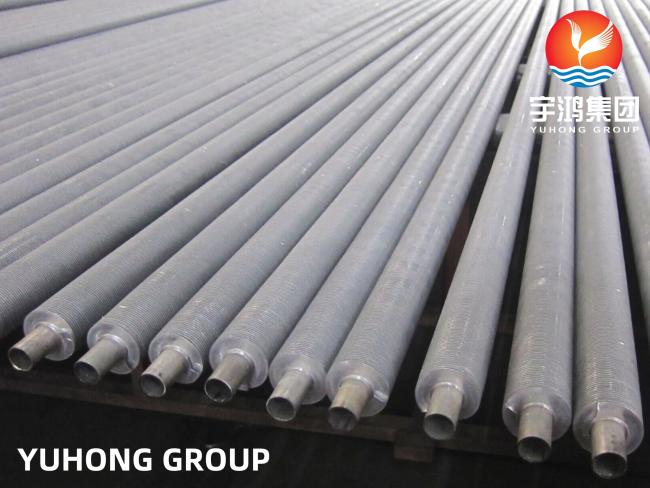

Extruded Embedded Finned Tube Spiral G/L/Ll/Kl Type Aluminum Fin Tube Copper Heat Exchanger Tube for Boiler
Extruded Embedded Finned Tube Spiral G/L/Ll/Kl Type ,Aluminum Fin Tube Copper Heat Exchanger Tube
DESCRIPTION
Application: Mainly used in petrochemical, electric power, paper, tobacco, buildingheating and other industries such as air cooler, air heater and food industry plant proteinpowder, starch and other spray drying system of air heaters.
Working temperature: 230C, using the most advanced CNC L finned pipe throughdigital control to keep segment binding force in the best condition, rolling forming of thetrapezoidal cross section and the heat flux density distribution in size, on the basis ofmaterial saving, greatly improving the thermal efficiency, put an end to the string typefinned tube for segment gap cannot eliminate the contact thermal resistance.
Features
the winding process, high production efficiency, is apart from the uniform,pod heat transfer, wing than high, base tube can be protected from air erosion.
Manufacturing Process
Fin strips (usually aluminum and copper) are folded into an L shape and wound under tension on the surface of the base tube. The feet of the fins are connected together and cover the surface of the fins.
| Base Tube Materials | |
| Carbon Steel Tubes | A179, A192, SA210 Gr A1/C, A106 Gr B, A333 Gr3 Gr6 Gr8, A334 Gr3 Gr6 Gr8, 09CrCuSb, DIN 17175 St35.8 St45.8, EN 10216 P195 P235 P265, GB/T3087 Gr10 Gr20, GB/T5310 20G 20MnG, |
| Alloy Steel Tubes | A209 T1 T1a,A213 T2 T5 T9 T11 T12 T22 T91,A335 P2 P5 P9 P11 P12 P22 P91,EN 10216-2 13CrMo4-5 10CrMo9-10 15NiCuMoNb5-6-4 |
| Stainless Steel Tubes | TP304/304L, TP316/TP316L TP310/310S TP347/TP347H |
| Copper Tubes | UNS12200/UNS14200/UNS70600, CuNi70/30, CuNi 90/10 |
| Titanium Tubes | Gr. 2 |
| Fin materials | |
|
Aluminum (Alu.1100, Alu.1060), Copper, Steel |
|
| Sr. No | Particulars | Range |
| 1 | Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit) |
| 2 | Base Tube Outside Diameter | 12.70 mm to 38.10 mm |
| 3 | Base Tube Thickness | 1.25mm And Above |
| 4 | Base Tube Length | 500 mm Min To 15000 mm |
| 5 | Fin Material | Aluminum, Copper, Stainless Steel, etc. |
| 6 | Fin Thickness | 0.3mm, 0.35mm, 0.4mm, 0.45mm, 0.55mm, 0.60mm, 0.65mm |
| 7 | Fin Density | 236 FPM (6 FPI) to 433 FPM (11 FPI) |
| 8 | Fin Height | 9.8 mm to 16.00 mm |
| 9 | Bare Ends | As per Client Requirement |
| 10 | Manufacturing Capacity | 5,00,000 Meter Per Annum |
L Fin Tube
LL Fin Tube
KL Fin Tube
