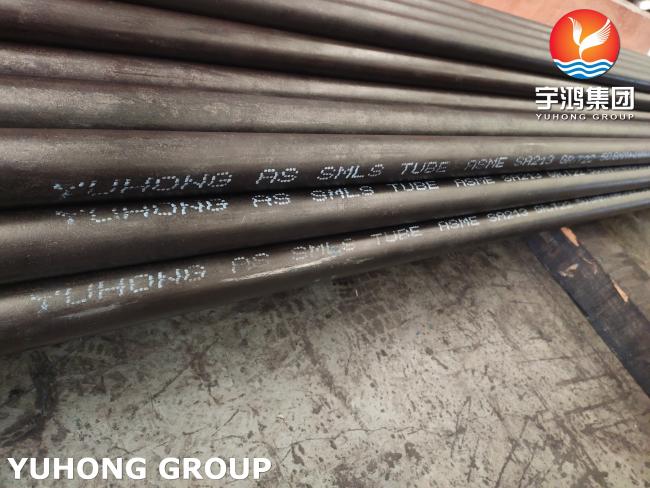

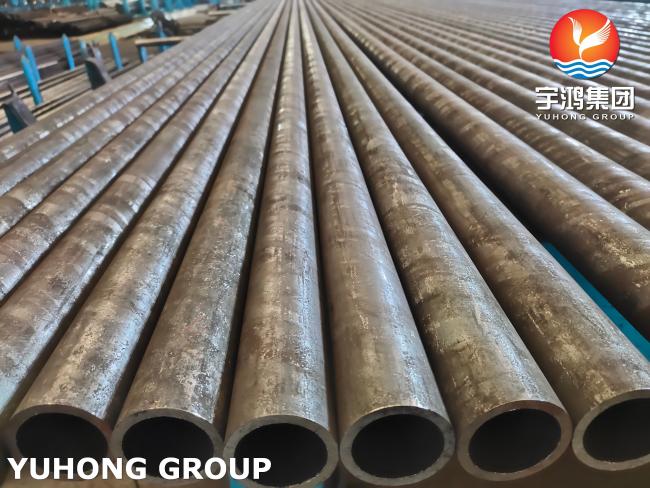

ASTM A213 T22, 1.7335 Alloy Steel Seamless Tube For Boiler And Heat Exchanger
ASTM A213 T22, 1.7335 Alloy Steel Seamless Tube For Boiler And Heat Exchanger
The T22 Tube Materials have low carbon less than 0.15%, manganese, phosphorus, sulfur, silicon and molybdenum in the composition. The ASTM A213 T22 Tube can be welded with conventional methods. Where the oxy-acetylene or submerged arc welding methods are to be employed, the tube has to be post weld heat treated; mostly annealing.
ASTM A213 T22 Alloy Steel Tube is a seamless ferritic Alloy Steel Tube for high temperature applications. ASTM A213 T22 Alloy Steel Tube is also known as chrome moly tube because of the chemical composition of Molybdenum (Mo) and Chromium (Cr). Molybdenum maintain the strength of ASME SA213 T22 tubes as well as the elastic limit, resistance to wear, impact qualities, and hardenability. Moly is the most effective single additive that enhances high temperature creep strength of T22 Tubes.
Specifications:
| Specifications | ASTM A213, ASME SA213 |
| Type | EFW / Seamless / Fabricated |
| Form | Square, Hydraulic, Round, Rectangular, Etc. |
| Size | 1/2” to 5” |
| Length | Double Random, Single Random, & Cut Length. |
| Ends | Beveled End, Plain End, Treaded |
| Schedule | SCH20, 30, 40, STD, 80, XS, 60, 80, 120, 140, 160, XXS |
Chemical Composition:
| C | Mn | P | S | Si | Cr | Mo |
| 0.05-0.15 | 0.3-0.6 | ≤0.025 | ≤0.025 | ≤0.5 | 1.9-2.6 | 0.87-1.13 |
Mechanical Properties:
| Tensile Strength(MPa) | Yield Strength(MPa) | Elongation(%) | Hardness(HB) |
| ≥415 | ≥205 | 30 | ≤163 |
Applications:
Boiler
Heat Exchanger
Oil and Gas Plant
Fabrication Industry
High temperature Resistant
Water waste Equipment
Sea Water Equipment
Pharmaceutical Equipment
Pulp & Paper Industry
