ASTM A179 Carbon Steel HFW G Type Finned Tube HT / ECT Availbale

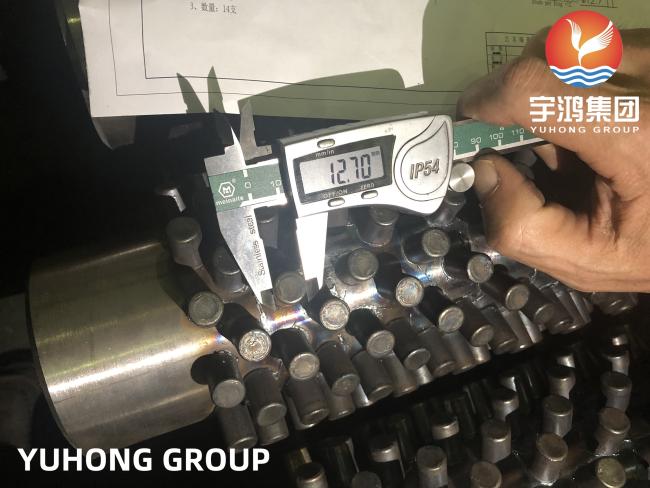

ASTM A213 T11 T22 T5 T9 T91 ASTM A179 Welding Stud Tubes SMLS Carbon Steel Material
Description:
| General H type Fin production capacity | General specifications of H type fin tubes |
| Production Facility: 6 finning machines; Daily capacity up to 20 tons; |
Tube OD: 73 mm max. Tube Length: 18 meters max. Fin Thickness: 1.5mm ~3.5mm Fin Pitch: 10mm Min. |
Manufacturing Process
Square or Rectangular H Fins are welded on a steel base tube. We call it H Fin Type Tubing.
Acceptance Criteria
Approved drawing and the delivery conditions (TDC) of clients.
Additional Services
Tube swaging, elbows, bends(90° / 180° or as per client's design).
Quality Tests
The Square or Rectangualr H Finned Tube quality is assured by hydrostatic or pneumatic tests, eddy current tests and tensile tests in order to verify the mechanical bonding between inner tubes and outer fins.
Surface Coating
Outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.
Delivery Condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of Square or Rectangualr Fin Tube.
Applications:
- Economizers ,
- Heat exchangers
- Marine boilers
Specifications:
| Items | General Materials | Popular ASTM /ASME Materials |
| Core Tube Material | Carbon Steel Alloy Steel Heat Resistant Steel, Stainless Steel |
1. Carbon Steel: A106 / A179 /A192 / A210 etc... 2. Stainless Steel: TP304/304L,TP316/TP316L, TP347 etc... 3. Alloy Steel: P5,T5,P9,T9,T11,T22 |
| Fin Material |
Carbon Steel Stainless Steel |
1. Carbon Steel |
Dimensions Data Sheet We're Supplying.
| General Descriptions of H-fins | Popular Specifications we make |
| Tube OD(mm) | 25mm to 73mm |
| Tube Wall thickness(mm) | 2.5mm Min. |
| Tube length(mm) | 18000mm Max. |
| Fin thickness(mm) | 1.5mm to 3.5mm |
| Fin pitch(mm) | 10mm Min. |
| Please email us for more information. | |
Competitive Advantage:
- We have more than 10,000 square meters workshop, including 6 H-FIN TYPE finning machines, daily extrusion capacity up to 20 tons.
- The Square of YUHONG Fins H-Finned Tubes are the preferred tube choice for high pressure boilers.
- Fins can be manufactured by stamping process in almost any shape and size.
- In-line fin and tube spacing allows for cleaning with excellent choice in sooting or fouling atmospheres.
- Fin height and spacing are limited only by heat transfer considerations.
- Fins and tubing can be similar or dissimilar metals.
![]()
