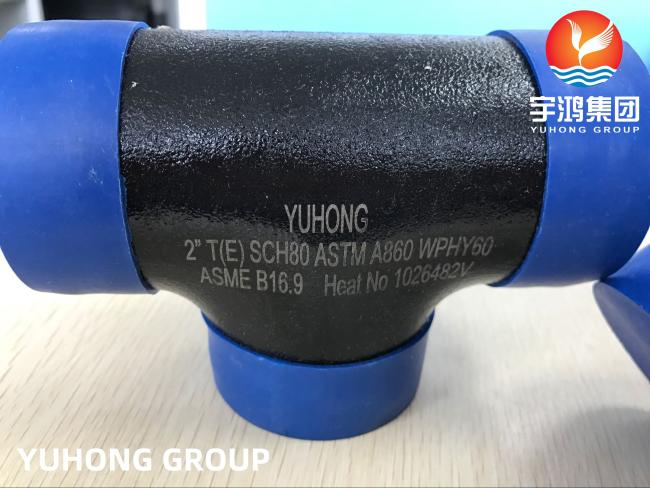

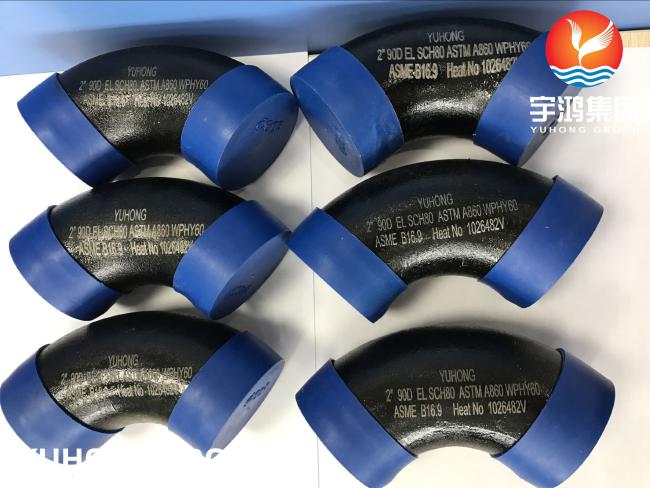

ASTM A860 WPHY60 Buttweld Black Carbon Steel Fittings, Elbows, Equal Tees B16.9
ASTM A860 WPHY60 Buttweld Black Carbon Steel Fittings, Elbows, Equal Tees B16.9
ASTM A860 WPHY60 is a carbon based alloy which has high strength properties. The main components of the WPHY60 material are nickel, chromium, molybdenum, manganese and copper. Besides these elements, this carbon based alloy contains trace amounts of metals like vanadium, titanium, niobium, sulphur, silicon and phosphorus. The A860 WPHY 60 fittings have highly resistance to disintegration. ASTM A860 WPHY 60 Carbon Steel Pipe Fittings in Wrought High Yield Steel are usually used at High-pressure applications. WPHY60 refers to the high yield strength of the fittings. ASTM A860 WPHY60 Pipe Fittings are also known for high tensile strength and corrosion resistance. The ASTM A860 WPHY60 fittings' properties include great strength, a high ductile quality, great sturdiness and durability. The ASTM A860 WPHY60 fittings' surface can be treated by coating it with either anti-corrosion dark oil or straightforward oil. The surface can also be treated by hot galvanization. Hot galvanization of the WPHY60 fittings can strengthen their resistance to erosion.
| Grade | ASTM A860 WPHY60 |
| Dimensions | ANSI/ASME B16.9, MSS-SP-75 |
| Type | Seamless / Welded / Fabricated |
| Color | black |
| Wall thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS available with NACE MR 01-75 |
| Technics | Butt Weld /Forged |
| Types | Reducing Tee, Cross, Long Radius Elbow, Short Radius Elbow, Long Radius Bends, Piggable Bends, Equal Tee, Con Reducer, Ecc Reducer, Pipe End Caps |
| Size Range | Seamless ½” to 24”, Welded ½” to 120” |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Surface treatment | Sand Blasting, Sand Rolling, Sand Blasting |
| Application | Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Etc. |
Chemical Composition:
| C | Mn | P | S | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| 0.2 | 1-1.45 | 0.03 | 0.01 | 0.15-0.4 | 0.5 | 0.3 | 0.25 | 0.35 | 0.05 | 0.1 | 0.04 | 0.06 |
Mechanical Properties:
| Yield Strength min. MPa [ksi] |
Tensile Strength MPa [ksi] |
Elongation in 2", min. % |
| 415 [60] | 515-690 [75-100] | ≤28 |
Applications:
Chemical Industry
Oil And Gas Plant
Fabrication Industry
Nuclear Power Plant
Water Pipeline Industry
Power Plants
Fertilizers
Petroleum Industry
