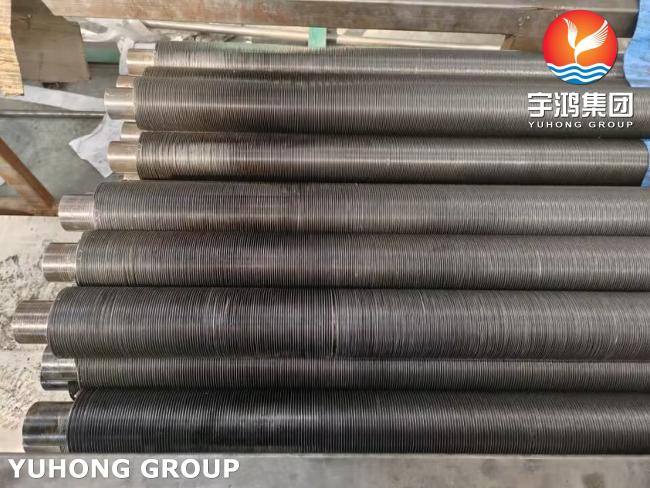

ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Embedded G Type Finned Tube
ASTM A179 Carbon Steel Tube With Aluminum1060 Fins, Embedded G Type Finned Tube
What is Embedded Fin?
Embedded “G Type” Finned tube is made with the fin strip wounded into a machined groove and securely locked into place by back filling with base tube material. This technique ensures maximum heat transfer and a temperature of working until 450C°.
The G Type Finned Tube is known as Embedded Fin Tube. This type of finned tubes is widely used in the rapplications of higher operating temperature and relatively lower corrosive atmosphere Fins are manufactured by embedding the fin stripS into a groove formed on the base tube. Fins are allowed to be placed in the groove and then the back filling of the groove is carried out to ensure firm adherence of the fins to the base tube. Due to this process, this type of Fin Tubes is also known as ‘G’ Fin tube or Grooved Finned Tube.
Advantages Of Embedded G Type Finned Tubes:
High fin stability
Excellent heat transfer
High operating temperature
Specifications:
| Base Tube Material | Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel etc. (all material in the theoretical limit) |
| Specification and Grade | ASTM A179, A192, A210 A1, A210 C, A334 Gr. 6, A213 T5, T9, T11, T22, T91, 304, 304L, 310s, 316, 316L, 321, 347, ASTM A312, ASTM A106 Grade B, P235GH, P265GH, A335 P5, P9, P11, P22, P91 Etc. |
| Base Tube Outside Diameter | 20 mm to 219 mm |
| Base Tube Thickness | 2.11 mm And Above |
| Base Tube Length | 500 mm To 15000 mm |
| Fin Density | Up to 1023 FPM ( 26 FPI ) |
| Bare Ends | As per Client Requirement |
| Fin Tubes Types | Extruded Fin Tube, Low Fin Tube, Embedded Fin Tube, High Frequency Welded Fin Tube, Studed Fin Tube, High Fin Tube, ‘G’ Type Fin Tube, ‘L’ Type Fin Tube, LL Fin Tube, ‘KL’ Type Fin Tube |
Chemical Composition:
| C | Mn | P | S | Si |
| 0.06-0.18 | 0.27-0.63 | 0.035 max | 0.035 max | 0.25 max |
Mechanical Properties:
| Tensile Strength | Yield Strength | Elongation | Hardness |
| ≥325 Mpa | ≥180 Mpa | ≥35% | ≤72 HRB |
Applications:
Power Generation
Petroleum Industry
Fabrication Industry
Oil & Gas Industry
Fertilizers
Electronics
Chemical & Petrochemicals Industries
Pharmaceutical Equipment
Sea Water Equipment
Heat Exchangers & Condensers
