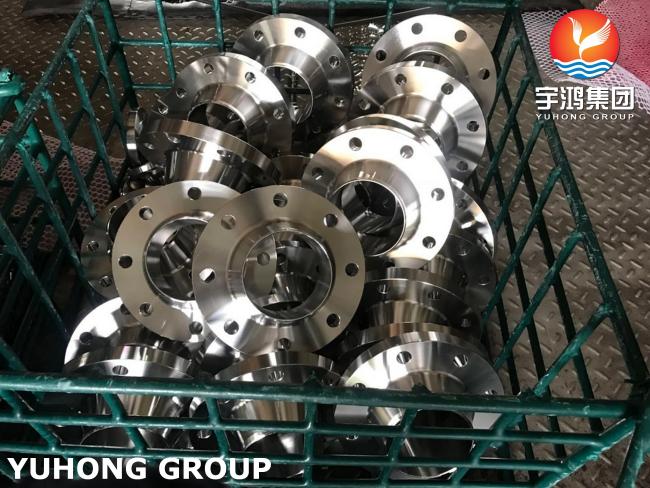

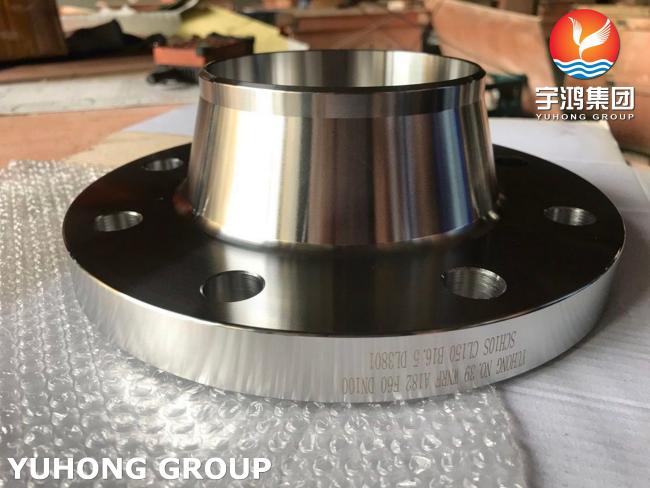

ASTM A182 F60, UNS S32205, 1.4462 Duplex Steel Weld Neck Flange, Rasied Face B16.5
ASTM A182 F60, UNS S32205, 1.4462 Duplex Steel Weld Neck Flange, Rasied Face B16.5
ASTM A182 F60(UNS S32205) Duplex Stainless Steel Flanges have different dimensions and standards so that pressure ratings vary. The UNS S32205 Flanges can be flat face, raised face or ring type joint flange based on the face. They can also be plate flange, threaded flange, screwed flange or forged flange based on the production type. The material of these ASTM A182 F60 Weld Neck Flanges consist of carbon, manganese, silicon, phosphorus, sulfur, nitrogen, iron and 21% chromium, 2.5% molybdenum with 4.5% nickel. The material composition allows the flanges to have 800MPa minimum tensile strength, 550MPa minimum yield strength and 15% elongation rate. These flanges are widely used in offshore oil drilling, sea water, pollution control, waste water management and so on.
Specifications:
| Specifications | ASTM A182, ASME SA182 |
| Standards | ANSI/ ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, BS, DIN, EN, GOST. |
| Standard ANSI | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Size Range | 1/2" (15 NB) to 48" (1200NB) |
| Production Technique | Forged, Heat treated and machined |
| Main Types | Forged / Threaded / Screwed / Plate |
| Connect Type/ Face Type | Raised Face (RF), Large Male-Female (LMF), Lap-Joint Face (LJF), Ring Type Joint (RTJ), Flat Face (FF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Applications | Chemical, Petroleum, Power, Construction, Gas, Metallurgy, Shipbuilding, Etc. |
Features:
High Strength
Good weldability and workability
Good sulfide stress corrosion resistance
Resistance to chloride stress corrosion cracking
Resistance to chloride pitting and crevice corrosion
Chemical Composition:
| C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| 0.03max | 2max | 1 max | 0.03 max | 0.02 max | 21 – 23 | 2.5 - 3.5 | 4.5 – 6.5 | 0.8 – 0.20 | 63.54 min |
Mechanical Properties:
| Tensile Strength min. MPa [ksi] |
655 [95] |
| Yield Strength min. MPa [ksi] |
450 [65] |
| Elongation in 2", min. % |
25 |
Applications:
Pulp & Paper Plant
Research & Development
Oil and Gas Industry
Nuclear Power Plant
Petrochemical Industry
Chemical Industry
