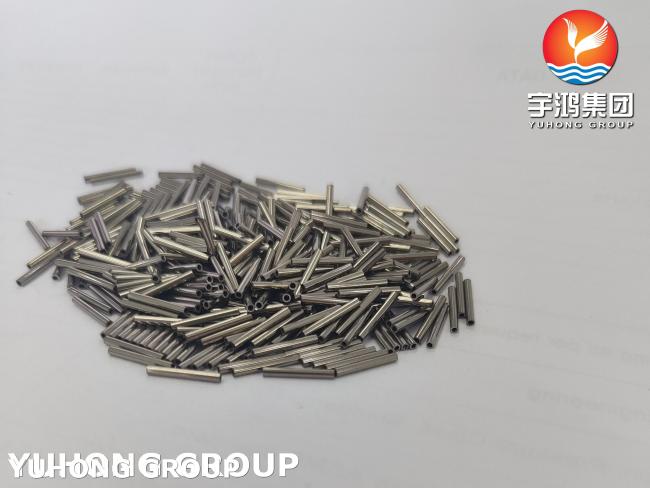

ASTM A269 TP304 TP304L TP316 TP316L Stainless Steel Capillary Tube, Medical Tube
ASTM A269 TP304 TP304L TP316 TP316L Stainless Steel Capillary Tube, Medical Tube
Stainless Steel Capillary Tubes have good flexibility, corrosion resistance, high temperature resistance, abrasion resistance, tensile resistance, water resistance and provide excellent electromagnetic shielding performance.
Stainless Steel Capillary Tubes are used for the production of pressure equipment and systems, measuring technology equipment, specialized food processing equipment in the food and nitrogen industry, ship construction, parts responsible for furnaces and boilers, and hydrogen discharge systems.
SS316 Capillary Tube is the standard molybdenum bearing grade tube. It provides better corrosion resistant properties than SS304 Capillary Tube, especially higher resistance to pitting and crevice corrosion in chloride environments.
Specification:
| OD | 0.35mm to 12 mm |
| Thickness | 0.08mm to 2mm |
| Specification | ASTM A269 / ASME SA269 |
| Material | SS 304, SS 304L,SS 316,SS 316L |
| Finish | Pickled, Polished, Bright Annealed, Electrolytic Polished |
| Form | Round, Or As Customized |
| Type | Welded, Seamless |
Features:
High strength
Good formability
Resistant to high pressure
Resistant to high temperature
Resistant to high mechanical stresses
Chemical Composition:
| Grades | C | Mn | P | S | Si | Cr | Ni | Mo |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18-20 | 8-11 | - |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18-20 | 8-13 | - |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16-18 | 11-14 | 2-3 |
| TP316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16-18 | 10-14 | 2-3 |
Applications:
Chemical and Petrochemical
Renewable Energy
Food and Beverage
Pulp and Paper
Pharmaceutical
Marine Industry
Oil and Gas
Power Generation
Medical Industry
