ASTM A182 F321H, F11, F316L Large Diameter Stainless Steel Flanges For Chemical Industry
ASTM A182 F321H, F11, F316L Large Diameter Stainless Steel Flanges For Chemical Industry

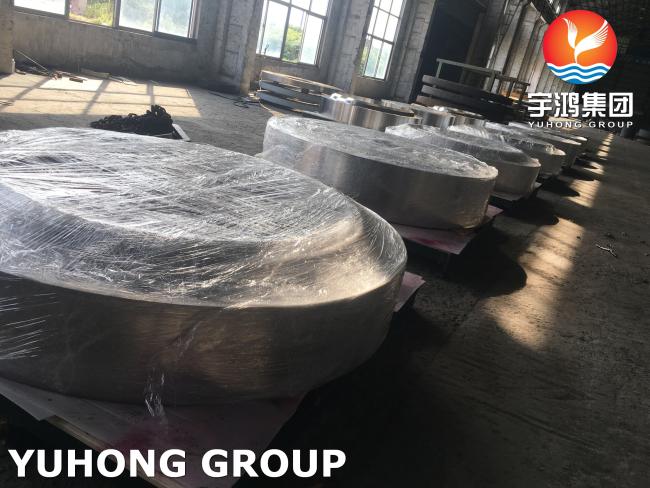

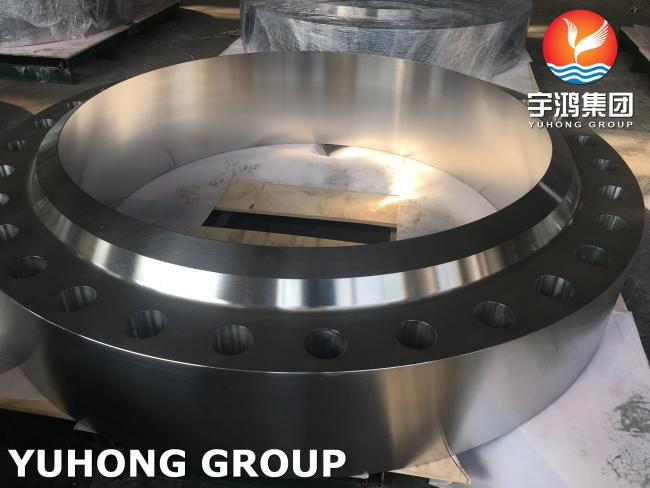

ASTM A182 F321H Stainless Steel Flanges are used to connect pipes, valves, pumps and other tool to form a piping system. It is usually welded or screwed. ASTM A182 F321H Stainless Steel Flanges are made by bolting two flanges together with a gasket between them to provide a seal. It is an austenitic material which can be stabilized with the addition of Titanium. F321H Stainless Steel Blind Flanges are flanges that don't have a hub or a bored center. This flange has a face thickness of a flange, a matching face type, and similar bolting pattern. It can be used to seal a nozzle opening on a pressure vessel. It has high strength, resistance to scaling, and phase stability, with resistance to subsequent aqueous corrosion.
Specifications:
| Size | 1/2″-48″, SCH5S-SCH XXS |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Surface | pickling, annealing, bright, sand blast, hair line |
| Type | Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange |
| Connection type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small Tongue, Groove. |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Specialized in | ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316L, 316Ti, 316L, 317, 317L, 321, 347, 347H, 348, 254SMO, UNS S31254, UNS 8020, F45, S30815, F46, S30600, F904L, A182 F56, S33228, F58, S31266, F62, N08367, ASTM A182 F5, F5a , F9, F11, F12, F22, F91; ASTM A182 F51/UNS S31803, F53/UNS S32750, F55/UNS S32760 |
Equivalent Grades:
| STANDARD | UNS | WERKSTOFF NR. |
| SS F321H | S32109 | 1.4878 |
Chemical Composition:
| Grade | C | Ni | Si | N | P | S | Mn | Cr | Ti | |
| F321H | Min | 0.04 | 9 | - | - | - | - | - | 17 | 4(C+N) |
| max | 0.08 | 12 | 0.75 | 0.1 | 0.045 | 0.03 | 2 | 19 | 0.7 max |
Mechanical Properties:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications:
Oil and Gas Systems
Chemical Industries
Plumbing Equipments
Heating Systems
Water Supply Systems
Power Plants
Paper & Pulp Industries
General Purpose Applications
Fabrication Industries
Food Processing Industries
