ASTM B444 UNS N06625 Inconel 625 U Tube Nickel Alloy Heat Exchanger Tube
ASTM B444 UNS N06625 Inconel 625 U Tube Nickel Alloy Heat Exchanger Tube
Chemical Composition
|
Grade |
C |
Mn |
Si |
S |
Cu |
Fe |
Ni |
Cr |
|
ASTM B 444 UNS N06625 |
0.10max |
0.50 max |
0.50 max |
0.015max |
– |
5.0 max |
58.0 min |
20.0 – 23.0 |
Mechanical Properties
|
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
ASTM B444 UNS N06625 |
8.4 g/cm3 |
1350 °C (2460 °F) |
Psi – 1,35,000 , MPa – 930 |
Psi – 75,000 , MPa – 517 |
42.5 % |
Equivalent
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Alloy 625 | N06625 | NA 21 | NiCr22Mo9Nb | 2.4856 | NC22DNB4M | ХН75МБТЮ | NCF 625 |
| Inconel 625 pipe ASTM Specification |
ASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517 ASTM B705 - UNS N06625 Welded Pipe ASTM B444 - UNS N06625 Cold-worked seamless pipe and tube ASTM B474 - Nickel Alloy 625 Electric Fusion Welded Pipe/ EFW Pipe |
| AMS | AMS 5581, AMS 5599, AMS 5666 |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Inconel 625 Pipe annealed Condition Grades |
UNS N06625 cold-worked seamless pipe are furnished in : ASTM B444 grade 1 ASTM B444 grade 2 ASME SB444 GR.1 |
| Value Added Services |

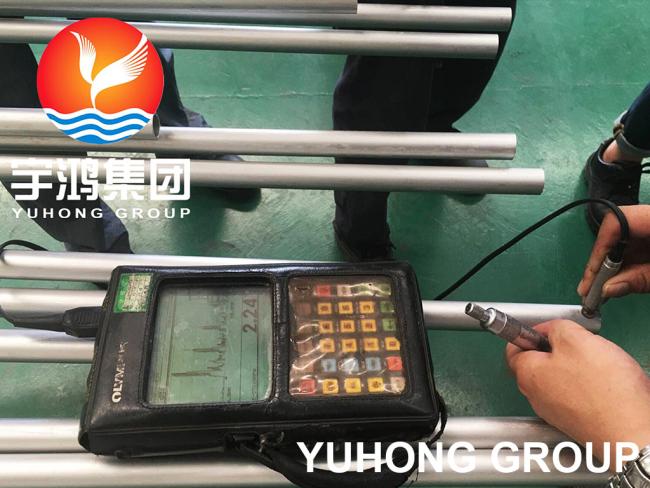

Cutting Beveling Threading Destructive and Non Destructive Ultrasonic Testing Draw & Expansion as per required Size & Length |
| END | Plain End, Beveled End, Treaded Alloy 625 UNS N06625 Pipes |
| Marking |
Specification Material Grade Nominal Size Schedule or Wall Thickness Method of Manufacturing (Seamless / Welded) Heat Number Manufacturer’s Name or Custom Logo - on request Marked Pipe Sample: ASTM B444 UNS N06625 12" NB SCH 40S SEAMLESS HEAT NO. XXXX |
| Test Certificate |
Manufacturer Test Certificate 100% Radiography Test Report DFARS compliant EN 10204/3.1B, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC) Fumigation Certificates Raw Materials Certificate Third Party Inspection Report Moisture testing Heat Treatment Charts Surface roughness measurement HS Code Commercial Invoice Laboratory Test Certificate from Govt. Approved Lab Form A for Generalized System of Preferences (GSP) |
| 625 Inconel Pipe Packaging | Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request |
Application
- Heat Exchangers
- Power Generation
- Pulp and Paper Industry
- Petrochemicals
- Chemical Equipment
- Gas Processing
- Off-Shore Oil Drilling Companies
- Specialty Chemicals
- Sea Water Equipment
- Condensers
