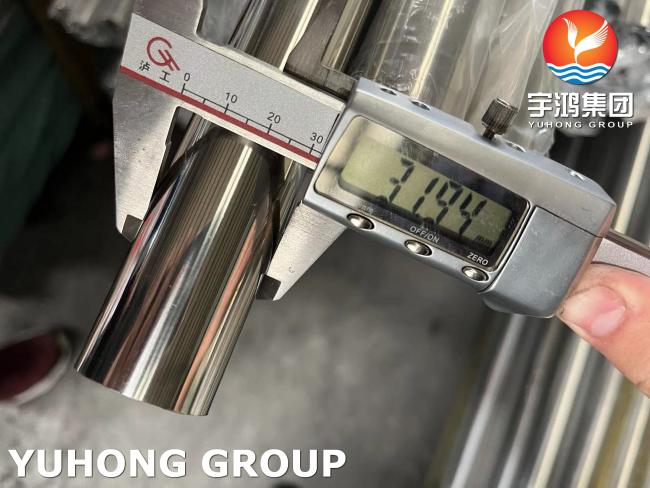

Stainless Steel Welded Tube ASTM A554 TP304 Water Engineering Petrochemical Oil
Stainless Steel Welded Tube ASTM A554 TP304 Water engineering petrochemical Oil
What is Welded tube?
Welded steel pipe, also known as welded tube, is a steel pipe made of steel plate or strip after roll forming and welding, generally 6 meters in fixed length. Welded steel tube production process is simple, high production efficiency, a variety of specifications, less investment in equipment, but generally lower strength than seamless steel tube
Chemical Composition of ASTM A249 TP321 Stainless Steel Welded Tubes
| Grade | Carbon | Nickel | Manganese | Sulfur | Chromium | Phosphorus | Silicon |
| 304 | 0.08 | 8.0-11.0 | 2 | 0.03 | 18.0-20.0 | 0.045 | 1 |
Mechanical Property of ASTM A554 TP304 Stainless Steel Welded Tubes
| Material | Temperure | Heat | Yield Strength | Tensile Strength | Elongation |
| Min.º F(º C) | Treatment | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| 304 | 1900 (1040) | Solution | 30(205) | 75(515) | 35 |
Equivalent Grades of ASTM A554 TP304 Stainless Steel Welded Tubes
| Grade | Unified Numbering System | Euronorm | Old British | Swedish SS | Japanese Industrial Standards | ||
| No | Name | British Standards | European Standards | ||||
| ASTM A554 TP304 | S30400 | 1.4301 | X5CrNi18-10 | 304S31 | 58E | 2332 | SUS 304 |
Physical Properties of ASTM A554 TP304 Stainless Steel Welded Tubes
Grade |
Mean Coefficient of Thermal Expansion (μm/m/°C) | Density (kg/m3) | Elastic Modulus (GPa) | Specific Heat 0-100°C (J/kg.K) | Thermal Conductivity (W/m.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| TP304 | 17.2 | 17.8 | 18.4 | 8000 | 193 | 500 | 16.2 | 21.5 | 720 |
ASTM A554 TP304 Stainless Steel Welded Tubes APPLICATION
Water engineering
petrochemical
Oil
Heat Exchanger Tube
Condenser
