ASTM B564 UNS N04400 / Monel 400 Nickel Alloy Pipe Flange Blind Flange
ASTM B 564 UNS N04400 / Monel 400 Nickel Alloy Blind Flange BLRF Flange
The B564 UNS N04400 blind flange is typically manufactured using a forging process, which results in a stronger and more durable product compared to other manufacturing methods.
UNS N04400 (Monel 400), is a nickel-copper alloy that is also known for its excellent mechanical properties, including high strength and toughness, making it a versatile material for a wide range of applications. Monel 400 is one of the few alloys that can withstand hydrofluoric acid, making it an ideal material for use in the chemical processing industry. It is also highly resistant to stress corrosion cracking, making it a popular choice for high-stress applications such as oil and gas production.
Why choose grade monel 400 for flange?
- Excellent resistance to corrosion in a wide range of environments, including seawater, acids, and alkalis.
- High strength and toughness, making it suitable for high-stress applications such as oil and gas production.
- Non-magnetic properties, making it useful in applications where magnetic interference could be a problem.
- Good weldability and fabrication properties, allowing for easy manufacturing and customization of flanges to suit specific applications.
- Resistance to stress corrosion cracking, which can be a problem in many other materials.
Equivalent Material of ASTM B564 UNS N04400 Nickel Alloy Flange
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | ----- 28-2,5-1,5 |

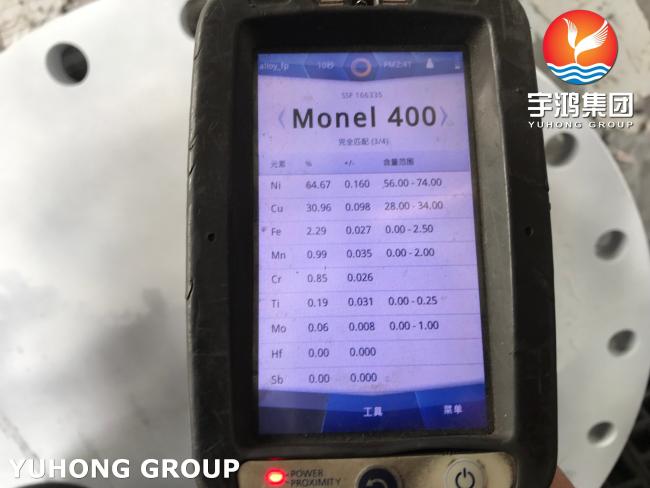

Chemical Properties of ASTM B564 UNS N04400 Nickel Alloy Flange
| Monel 400 | Ni | C | Al | Mn | Si | Fe | Cu | S | Co | Cr |
| 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max | – | – |
Mechanical Characteristics of ASTM B564 UNS N04400 Nickel Alloy Flange
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi - 35,000 , MPa - 240 | Psi - 80,000 , MPa - 550 | 40 % |
ASTM B564 UNS N04400 Nickel Alloy Flange
| Specifications List |
ASTM/ ASME B564 / SB564 |
|---|---|
| Standard Flange | BS, DIN, ASME, ANSI, EN |
| Size Chart | 1/2″up to 48″ (15 - 1200NB) |
| Class / Pressure Rating | PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40 |
| ASTM Standards | DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092 |
Monel 400 flanges can be easily welded and fabricated, making them a versatile material choice for a wide range of applications.
Monel 400 flanges can be used in conjunction with other Monel 400 components such as pipes and fittings to create a complete corrosion-resistant system.
Nickel Alloy Flanges Types
- Welding Neck Flange
- Slip On Flange
- Socket Weld Flange
- Lap Joint Flange
- Threaded Flange
- Blind Flange
- Orifice Flanges
- Long Welding Neck Flanges
- Weldoflange
Application
- Oil and Gas Industries
- Food Processing Industries
- Equipments
- Pipeline
- Power Industries
- Ship Building Industries
- Paper Industries
- Cement Industries
- Chemical Industries
