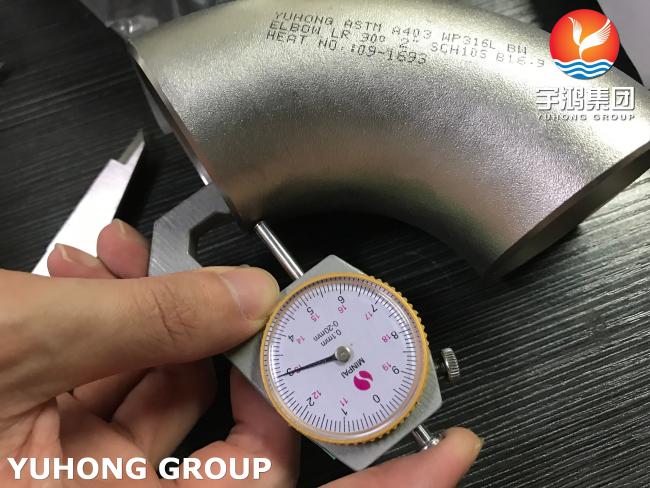

ASTM A403 F316L Austenltlc Stainless Steel Pipe Fittings 90 Degree Elbow Oil
Austenltlc Stainless Steel Pipe Fittings 90 Degree Elbow ASTM A403 F316L Beveled Ends
Overview
Elbow in the piping system, elbow is to change the direction of the pipeline fittings. According to the angle, there are 45 ° and 90 ° 180 ° three commonly used, in addition according to the needs of the project also includes 60 ° and other non-normal angle elbow. Elbow materials include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics. Connected with the pipe in the following ways: direct welding (commonly used way) flange connection, hot melt connection, electrofusion connection, threaded connection and socket connection. According to the production process can be divided into: welded elbow, stamping elbow, pushing elbow, casting elbow, butt-welding elbow and so on. Other names: 90-degree elbow, right-angle bend, love and bend, etc.
Mechanical Properties of ASTM A403 F316L
| Chemical Composition and Mechanical Property For 316L | |||||||||||
| Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
| C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | Mo | N | Tensile Strength (Min) |
Yield Strength (Min) |
|
| Mpa | Mpa | ||||||||||
| 316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 10.0–14.0 | 16.0–18.0 | 2.00–3.00 | 0.1 | 485 | 170 |
Chemical Properties of ASTM A403 F316L
| C | Mn | Si | P | S | Ni | Cr | Mo |
|---|---|---|---|---|---|---|---|
| 0.035 | 2 | 1 | 0.04 | 0.03 | 10-16 | 18-20 | 2-3 |
Application
Oil and gas
Valve
Petrochemical
automobile
Marine environments
