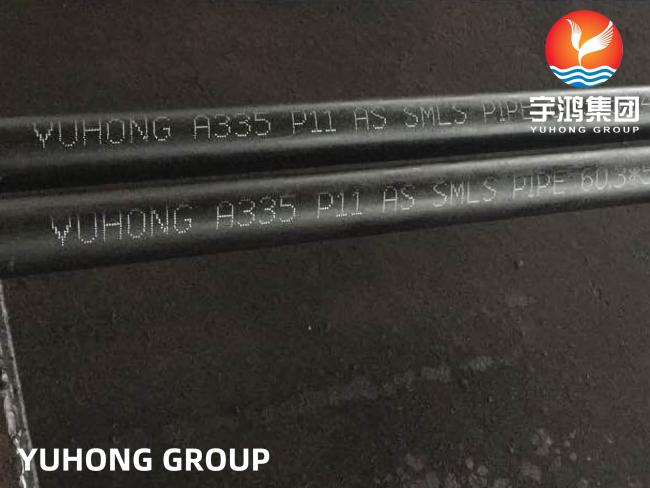

ASTM A335 P11 Alloy Steel Seamless Pipe For Fire Furnace, Convection , Radiant Equipment
ASTM A335 P11 Alloy Steel Seamless Pipe For Fire Furnace, Convection, Radiant Equipment
ASTM A335 P11 is a low alloy steel that is used in many industrial applications. It has a high chromium content, providing it with excellent corrosion resistance and heat resistance. It also has good mechanical properties, making it an ideal choice for many applications. The ASTM A335 P11 Pipe consists of low alloy steel which has high temperature properties. This material exhibits good performance in high temperature conditions, like heat exchangers, pressure vessels, etc. The ASTM A335 P11 Pipe can be also used in industries such as power plants, oil and gas plants, etc. The addition of chromium makes it have high temperature strength, oxidation resistance, tensile strength, yield strength, and hardness.
Specifications:
| Size | 1/8" To 24" |
| Standards | ASTM A335, ASME SA335 |
| Type | Seamless |
| Outer Dimensions | 19.05mm – 114.3mm |
| Wall Thickness | 2mm – 14mm |
| Length | 6M Or As Custom, Single, Double Random & Cut to Length. |
| Schedule Chart | SCH 10 - SCH XXS |
| Shape | Round, Rectangular, Square, Hydraulic Etc. |
| Ends | Plain Ends, Beveled Ends, Treaded |
| Key Parts of YUHONG GROUP PIPE/TUBE used | |
| Raffinate Heaters | Oil fired heater |
| Extract Heaters | Gas fired heater |
| Reactor | Helical coil fired heater |
| Solvent | Vertical cylindrical fired heater |
| Fractionator | Radiant Tube |
| Refinery Furnace | Tube Coil |
| Crude oil heater | Radiation Tube coil |
| Vacuum Heater | Economizer |
| Hydrotreater Heater | Convection coil |
| Horizontal tube cabin fired heaters | Hoop-tube fired heater |
Features:
High strength
Good weldability
Low thermal conductivity
High-temperature resistance
Good corrosion resistance
Chemical Composition:
| C | Mn | P | S | Si | Cr | Mo |
| 0.05-0.15 | 0.3-0.6 | 0.025 max | 0.025 max | 0.5-1 | 1-1.5 | 0.44-0.65 |
Mechanical Properties:
| Tensile Strength, min | Yield Strength, min | Elongation, min |
| 415 MPa | 205 MPa | 30 % |
Applications:
Power Generation
Oil and Gas Plant
Chemical Industry
Petrochemical Industry
Construction Industry
Gas Processing Equipment
Radiant Equipment
Convection Tube
Fire Furnace
