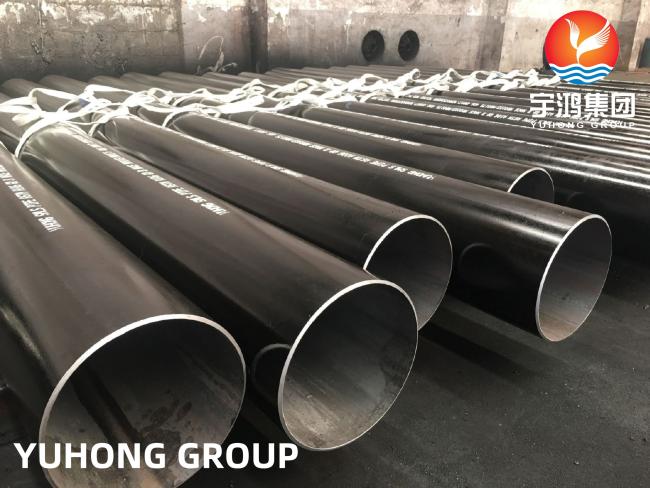

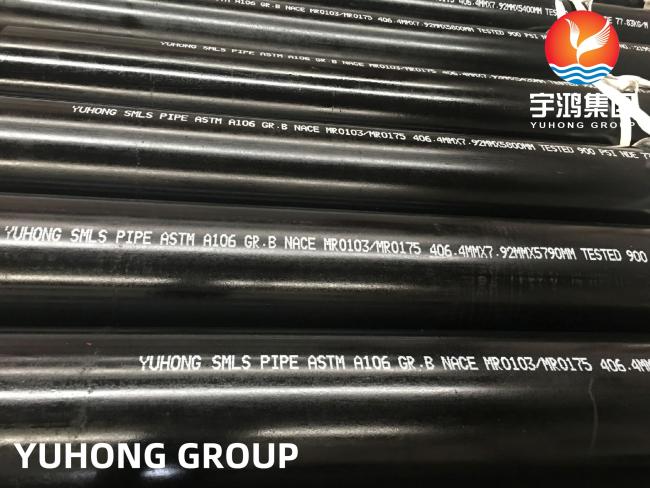

ASTM A106 Gr.B Carbon Steel Seamless Tube For High Pressure Application
ASTM A106 Gr.B Carbon Steel Seamless Tube For High Pressure Application
ASTM A106 is the standard specification for seamless carbon steel pipe used for high-temperature services. It has three grades: A, B, C, and Gr.B is the most commonly used. This pipe is used in various applications, like oil and gas plants, boilers, water treatment systems, and so on. ASTM A106 Grade B pipe is considered equivalent to ASTM A53 Grade B and API 5L Grade B in terms of chemical composition and mechanical properties. Our Company has exported carbon steel tubes to more than 80 countries up to now.
Specifications:
| Standards | ASTM A106, ASME SA106 |
| Grades | Gr.A, Gr.B, Gr.C |
| Technical | Hot Finished and Cold drawn |
| Type | Seamless |
| Size | 1/2” NB to 36” NB |
| Length | 3 M To18 M |
| Thickness | 3-12mm |
| Schedules | SCH 10 To SCH XXS |
| End | Plain End, Beveled End, Treaded |
Chemical Composition:
| Grade | C | Mn | P | S | Si | Cr | Cu | Ni | Mo | V |
| B | ≤0.3 | 0.29-1.06 | ≤0.035 | ≤0.035 | >0.1 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.15 | ≤0.08 |
Mechanical Composition:
| Tensile Strength, min | Yield Strength, min | Trans.Elongation, min |
| 415 MPa | 240 MPa | 16.5 % |
Applications:
Petrochemical Industry
Chemical Industry
Oil and Gas Plant
Pulp & Paper Indusry
Power Plant
Food Processing Industry
Energy Plant
Aerospace Industry
