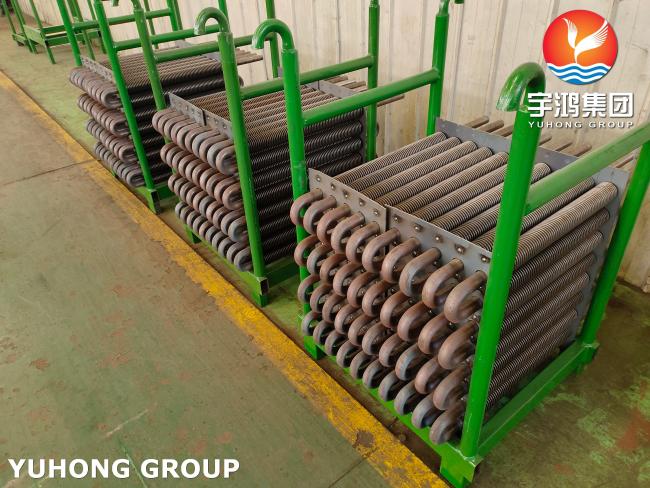

High Corrosion Resistance Carbon Steel U-type Fin Tube for Heat Exchanger
Carbon Steel , Stainless Steel, Copper Alloy Steel U Type FIn Tube For Heat Exchanger
U-type fin tube is a type of heat exchanger of a tube with a U-shaped fin wrapped around it. The fin increases the surface area of the tube, allowing for more efficient heat transfer between the fluid inside the tube and the surrounding environment. The U-shaped fin is typically made of a metal material, such as aluminum or copper, and is tightly wound around the tube. This configuration maximizes the contact between the fin and the tube, enhancing heat transfer. U-type fin tubes are commonly used in various industrial applications, including air conditioning systems, boilers, and heat exchangers. They are particularly effective in applications where there is a significant temperature difference between the tube and the ambient environment. Overall, U-type fin tubes play a crucial role in heat transfer efficiency of heat exchangers, allowing for more effective heating processes.
Chemical Composition
| Element | ASTM A106 Gr. B |
| C | 0.30 |
| Mn | 0.29-1.06 |
| P | 0.04 |
| S | 0.04 |
| Cu | 0.40 |
| Ni | 0.40 |
| Cr | 0.4 |
| Mo | 0.15 |
| V | 0.08 |
Mechanical & Physical Properties
| Element | ASTM A106 Carbon Steel Gr. B |
| Tensile Strength | 60,000 (415) MPa |
| Yield Strength (0.2%Offset) | 35,000 (240) |
Feature of U Bend Fin Tube
1. U-shaped Configuration: The most prominent feature of U bend fin tubes is their U-shaped configuration. This shape enhances the contact area between the fin and the tube, maximizing heat transfer efficiency.
2. Increased Surface Area: The fin wrapping around the tube significantly increases the surface area available for heat transfer. This increased surface area allows for more efficient heat exchange between the fluid inside the tube and the surrounding environment.
3. Enhanced Heat Transfer: The U bend fin tube design promotes better heat transfer due to the improved contact between the fin and the tube. This results in improved overall thermal performance and higher heat transfer rates.
4. Improved Strength and Durability: U bend fin tubes are typically made of high-quality materials, such as aluminum or copper, which offer excellent strength and durability. This ensures that the fin tubes can withstand demanding conditions and maintain their efficiency over time.
5. Versatile Applications: U bend fin tubes find applications in various industries, including HVAC systems, power plants, refineries, and heat exchangers. They are suitable for both air-to-air and air-to-fluid heat transfer systems, making them versatile for different thermal management needs.
6. Customizable Designs: U bend fin tubes can be customized to meet specific requirements. They can be designed with different fin heights, fin densities, tube sizes, and materials based on the application's thermal and mechanical requirements.
Overall, U bend fin tubes provide an efficient solution for heat transfer applications, offering enhanced performance, durability, and versatility.
Application:
- Electric power
- Metallurgy
- Chemical industry
- Oil refining, construction
- Machinery manufacturing
- Food
- Medicine
- Aviation
