A182 F53(S32750) Super Duplex Steel Elbow 90 Degree Weled Steel Pipe Fittings

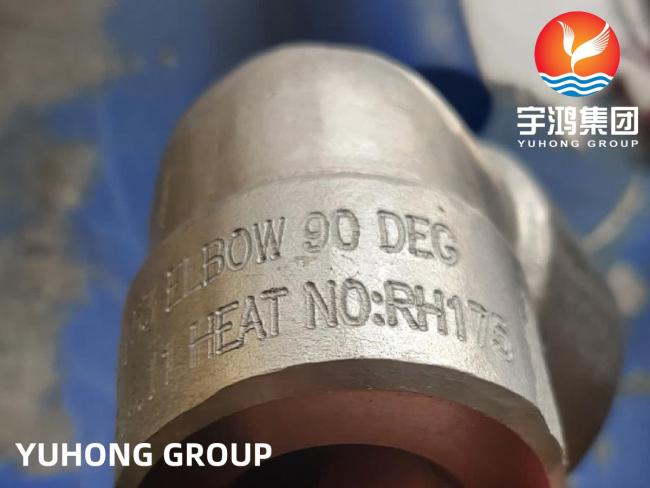

A182 F53(S32750) SUPER DUPLEX STEEL ELBOW 90 DEGREE
The A182 F53 (S32750) Super Duplex Steel Elbow 90 Degree is a type of pipe fitting used for changing the direction of the flow in a piping system. It is made from A182 F53 (S32750) Super Duplex Steel, which is a high-strength and corrosion-resistant alloy.
The 90-degree elbow is designed to change the direction of the flow by 90 degrees, allowing for smooth and efficient fluid flow. It is commonly used in industries such as oil and gas, chemical processing, and marine applications.
The A182 F53 (S32750) Super Duplex Steel offers excellent resistance to pitting and crevice corrosion, making it suitable for use in aggressive environments. It also has high tensile and yield strength, providing durability and reliability in demanding conditions.
The elbow is available in various sizes and can be welded or threaded onto the piping system. It is designed to withstand high pressure and temperature, ensuring long-lasting performance.
Overall, the A182 F53 (S32750) Super Duplex Steel Elbow 90 Degree is a reliable and durable pipe fitting that is suitable for demanding applications requiring excellent corrosion resistance and strength.

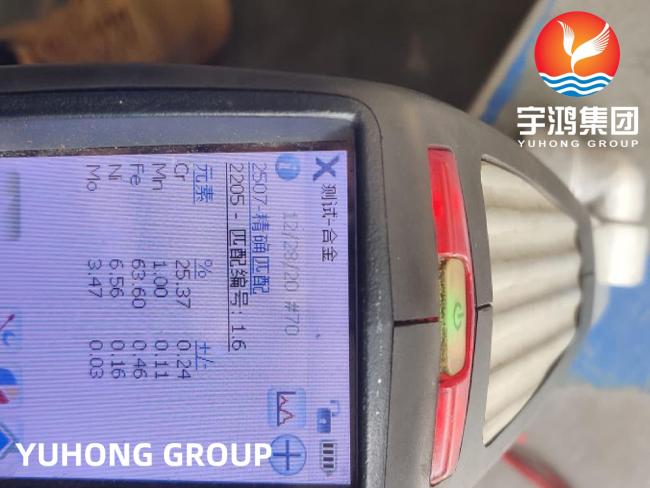

Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| F53/F55 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
Mechanical Behaviour:
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15% |
A182 F53(S32750) SUPER DUPLEX STEEL ELBOW Applications:
- 1. Oil and Gas Industry
- 2. Chemical Processing
- 3. Desalination Plants
- 4. Power Generation
- 5. Water Treatment
- 6. Pulp and Paper Industry
- 7. Mining and Mineral Processing
