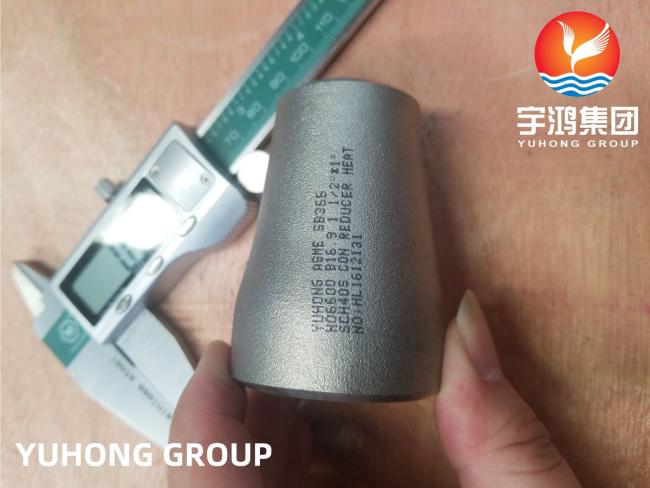

ASTM B366 Inconel 600 / UNS N06600 Concentric Reducer Nickel Alloy Buttweld Fitting

Overview:

Inconel 600 is a versatile superalloy primarily composed of nickel and chromium, offering excellent resistance to oxidation and corrosion, particularly in high-temperature environments. A concentric reducer crafted from Inconel 600 is designed to connect pipes of different diameters, allowing for a smooth transition that minimizes turbulence and maintains flow efficiency.

These reducers are typically utilized in critical applications, including chemical processing, aerospace, nuclear engineering, and power generation, where the material's ability to withstand extreme conditions is paramount. The high tensile strength of Inconel 600 ensures durability even under high-pressure scenarios.

The fabrication process may include techniques such as hot or cold working, and the reducers can be produced in various sizes to fit specific piping requirements. Their construction guarantees a tight seal and helps prevent leakage, contributing to safety and reliability in demanding environments.

Inconel 600's non-magnetic properties and excellent weldability further enhance its appeal for precise engineering applications. The reducers are often surface-treated to improve longevity and performance, making them a go-to option for engineers requiring robust solutions in harsh conditions.

Specification:

Chemical Composition:

Mechanical Properties:

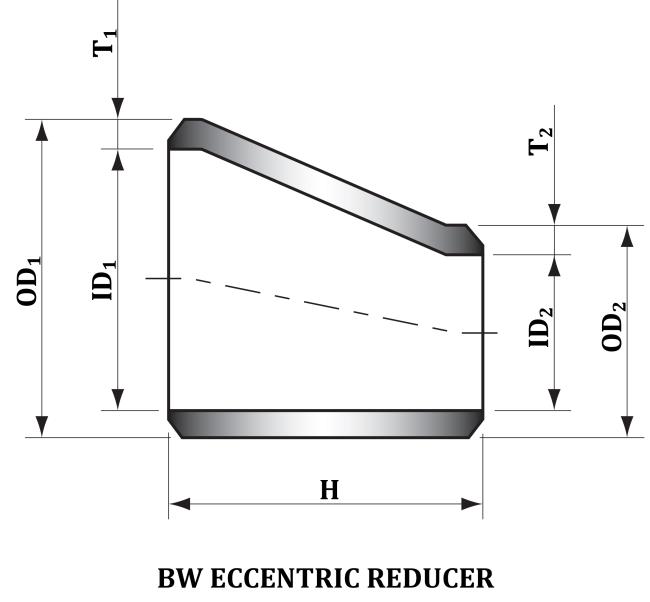

Dimension:

Nominal Size		Outside Diameter at Bevel (mm)	End to End (mm)
DN	NPS	OD1 X OD2	H
20 X 15	3/4 X 1/2	26.7 X 21.3	38
20 X 10	3/4 X 3/8	26.7 X 17.1
25 X 20	1 X 3/4	33.4 X 26.7	51
25 X 15	1 X 1/2	33.4 X 21.3
32 X 25	1 1/4 X 1	42.2 X 33.4	51
32 X 20	1 1/4 X 3/4	42.2 X 26.7
32 X 15	1 1/4 X 1/2	42.2 X 21.3
40 X 32	1 1/2 X 1 1/4	48.3 X 42.2	64
40 X 25	1 1/2 X 1	48.3 X 33.4
40 X 20	1 1/2 X 3/4	48.3 X 26.7
40 X 15	1 1/2 X 1/2	48.3 X 21.3
50 X 40	2 X 1 1/2	60.3 X 48.3	76
50 X 32	2 X 1 1/4	60.3 X 42.2
50 X 25	2 X 1	60.3 X 33.4
50 X 20	2 X 3/4	60.3 X 26.7
65 X 50	2 1/2 X 2	73.0 X 60.3	89
65 X 40	2 1/2 X 1 1/2	73.0 X 48.3
65 X 32	2 1/2 X 1 1/4	73.0 X 42.2
65 X 25	2 1/2 X 1	73.0 X 33.4
80 X 65	3 X 2 1/2	88.9 X 73.0	89
80 X 50	3 X 2	88.9 X 60.3
80 X 40	3 X 1 1/2	88.9 X 48.3
80 X 32	3 X 1 1/4	88.9 X 42.2
90 X 80	3 1/2 X 3	101.6 X 88.9	102
90 X 65	3 1/2 X 2 1/2	101.6 X 73.0
90 X 50	3 1/2 X 2	101.6 X 60.3
90 X 40	3 1/2 X 1 1/2	101.6 X 48.3
90 X 32	3 1/2 X 1 1/4	101.6 X 42.2
100 X 90	4 X 3 1/2	114.3 X 101.6	102
100 X 80	4 X 3	114.3 X 88.9
100 X 65	4 X 2 1/2	114.3 X 73.0
100 X 50	4 X 2	114.3 X 60.3
100 X 40	4 X 1 1/2	114.3 X 48.3
125 X 100	5 X 4	141.3 X 114.3	127
125 X 90	5 X 3 1/2	141.3 X 101.6
125 X 80	5 X 3	141.3 X 88.9
125 X 65	5 X 2 1/2	141.3 X 73.0
125 X 50	5 X 2	141.3 X 60.3
150 X 125	6 X 5	168.3 X 141.3	140
150 X 100	6 X 4	168.3 X 114.3
150 X 90	6 X 3 1/2	168.3 X 101.6
150 X 80	6 X 3	168.3 X 88.9
150 X 65	6 X 2 1/2	168.3 X 73.0
200 X 150	8 X 6	219.1 X 168.3	152
200 X 125	8 X 5	219.1 X 141.3
200 X 100	8 X 4	219.1 X 114.3
200 X 90	8 X 3 1/2	219.1 X 101.6
250 X 200	10 X 8	273.0 X 219.1	178
250 X 150	10 X 6	273.0 X 168.3
250 X 125	10 X 5	273.0 X 141.3
250 X 100	10 X 4	273.0 X 114.3
300 X 250	12 X 10	323.8 X 273.0	203
300 X 200	12 X 8	323.8 X 219.1
300 X 150	12 X 6	323.8 X 168.3
300 X 125	12 X 5	323.8 X 141.3
350 X 300	14 X 12	355.6 X 323.8	330
350 X 250	14 X 10	355.6 X 273.0
350 X 200	14 X 8	355.6 X 219.1
350 X 150	14 X 6	355.6 X 168.3
400 X 350	16 X 14	406.4 X 355.6	356
400 X 300	16 X 12	406.4 X 323.8
400 X 250	16 X 10	406.4 X 273.0
400 X 200	16 X 8	406.4 X 219.1
400 X 150	16 X 6	406.4 X 168.3
450 X 400	18 X 16	457.0 X 406.4	381
450 X 350	18 X 14	457.0 X 355.6
450 X 300	18 X 12	457.0 X 323.8
450 X 250	18 X 10	457.0 X 273.0
450 X 200	18 X 8	457.0 X 219.1
500 X 450	20 X 18	508.0 X 457.0	508
500 X 400	20 X 16	508.0 X 406.4
500 X 350	20 X 14	508.0 X 355.6
500 X 300	20 X 12	508.0 X 323.8
500 X 250	20 X 10	508.0 X 273.0
550 X 500	22 X 20	559.0 X 508.0	508
550 X 450	22 X 18	559.0 X 457.0
550 X 400	22 X 16	559.0 X 406.4
550 X 350	22 X 14	559.0 X 355.6
550 X 300	22 X 12	559.0 X 323.8
600 X 550	24 X 22	610.0 X 559.0	508
600 X 500	24 X 20	610.0 X 508.0
600 X 450	24 X 18	610.0 X 457.0
600 X 400	24 X 16	610.0 X 406.4
600 X 350	24 X 14	610.0 X 355.6
600 X 300	24 X 12	610.0 X 323.8
650 X 600	26 X 24	660.0 X 610.0	610
650 X 550	26 X 22	660.0 X 559.0
650 X 500	26 X 20	660.0 X 508.0
650 X 450	26 X 18	660.0 X 457.0
650 X 400	26 X 16	660.0 X 406.4
650 X 350	26 X 14	660.0 X 355.6
700 X 650	28 X 26	711.0 X 660.0	610
700 X 600	28 X 24	711.0 X 610.0
700 X 550	28 X 22	711.0 X 559.0
700 X 500	28 X 20	711.0 X 508.0
700 X 450	28 X 18	711.0 X 457.0
700 X 400	28 X 16	711.0 X 406.4
700 X 350	28 X 14	711.0 X 355.6
750 X 700	30 X 28	762.0 X 711.0	610
750 X 650	30 X 26	762.0 X 660.0
750 X 600	30 X 24	762.0 X 610.0
750 X 550	30 X 22	762.0 X 559.0
750 X 500	30 X 20	762.0 X 508.0
750 X 450	30 X 18	762.0 X 457.0
750 X 400	30 X 16	762.0 X 406.4
750 X 350	30 X 14	762.0 X 355.6
800 X 750	32 X 30	813.0 X 762.0	610
800 X 700	32 X 28	813.0 X 711.0
800 X 650	32 X 26	813.0 X 660.0
800 X 600	32 X 24	813.0 X 610.0
800 X 550	32 X 22	813.0 X 559.0
800 X 500	32 X 20	813.0 X 508.0
850 X 800	34 X 32	864.0 X 813.0	610
850 X 750	34 X 30	864.0 X 762.0
850 X 700	34 X 28	864.0 X 711.0
850 X 650	34 X 26	864.0 X 660.0
850 X 600	34 X 24	864.0 X 610.0
850 X 550	34 X 22	864.0 X 559.0
900 X 850	36 X 34	914.0 X 864.0	610
900 X 800	36 X 32	914.0 X 813.0
900 X 750	36 X 30	914.0 X 762.0
900 X 700	36 X 28	914.0 X 711.0
900 X 650	36 X 26	914.0 X 660.0
900 X 600	36 X 24	914.0 X 610.0
900 X 550	36 X 22	914.0 X 559.0
950 X 900	38 X 36	965.0 X 914.0	610
950 X 850	38 X 34	965.0 X 864.0
950 X 800	38 X 32	965.0 X 813.0
950 X 750	38 X 30	965.0 X 762.0
950 X 700	38 X 28	965.0 X 711.0
950 X 650	38 X 26	965.0 X 660.0
950 X 600	38 X 24	965.0 X 610.0
1000 X 950	40 X 38	1016.0 X 965.0	610
1000 X 900	40 X 36	1016.0 X 914.0
1000 X 850	40 X 34	1016.0 X 864.0
1000 X 800	40 X 32	1016.0 X 813.0
1000 X 750	40 X 30	1016.0 X 762.0
1000 X 700	40 X 28	1016.0 X 711.0
1050 X 1000	42 X 40	1067.0 X 1016.0	610
1050 X 950	42 X 38	1067.0 X 965.0
1050 X 900	42 X 36	1067.0 X 914.0
1050 X 850	42 X 34	1067.0 X 864.0
1050 X 800	42 X 32	1067.0 X 813.0
1050 X 750	42 X 30	1067.0 X 762.0
1050 X 700	42 X 28	1067.0 X 711.0
1100 X 1050	44 X 42	1118.0 X 1067.0	610
1100 X 1000	44 X 40	1118.0 X 1016.0
1100 X 950	44 X 38	1118.0 X 965.0
1100 X 900	44 X 36	1118.0 X 914.0
1100 X 850	44 X 34	1118.0 X 864.0
1100 X 800	44 X 32	1118.0 X 813.0
1150 X 1100	46 X 44	1168.0 X 1118.0	711
1150 X 1050	46 X 42	1168.0 X 1067.0
1150 X 1000	46 X 40	1168.0 X 1016.0
1150 X 950	46 X 38	1168.0 X 965.0
1150 X 900	46 X 36	1168.0 X 914.0
1150 X 850	46 X 34	1168.0 X 864.0
1200 X 1150	48 X 46	1219.0 X 1168.0	711
1200 X 1100	48 X 44	1219.0 X 1118.0
1200 X 1050	48 X 42	1219.0 X 1067.0
1200 X 1000	48 X 40	1219.0 X 1016.0
1200 X 950	48 X 38	1219.0 X 965.0
1200 X 900	48 X 36	1219.0 X 914.0
Notes 1) Besides the above mentioned standards, the standards of GB/T 10752, SH 3408, SH 3409, HG/T 21635, HG/T 21631, SY/T 0510, DL/T 695, EN 10253 etc.are also applied. 2) For the concentric and eccentric reducers with the sizes larger than that listed in the above table, they will be supplied subject to the sizes agreed by purchaser and manufacturer or according to manufacturer's size.
