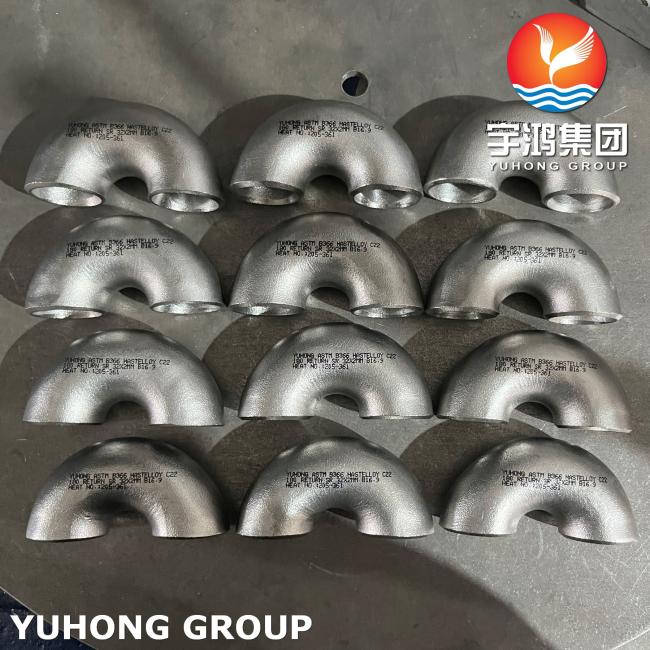

ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9
ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9
ASTM B366 UNS N06022 (Hastelloy C22) is a combination of nickel, chromium, molybdenum, and tungsten alloy, which enhances the resistance to corrosion, petting, and oxidations. The carbon and nickel content make it have the ability to sustain for a longer time in corrosive conditions. Hastelloy C22 Nickel Alloy 180 Degree Returns can be used in high-temperature and high-pressure situations. Hastelloy C22 Nickel Alloy Steel Return Bend also has good toughness in mechanical and chemical conditions.
Equivalent Grades:
| STANDARD | UNS | WERKSTOFF NR. | JIS | EN |
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |
Specifications:
| Grades | UNS N06022, Hastelloy C22 |
| Size | Seamless ½” to 24” Welded ½” to 48” |
| Surface Treatment | Sand blasting/ Sand Rolling/ Sand Blasting |
| Thickness | Sch 5S to Sch XXS |
| Coating | Anti-rust Paint/ Zinc Plated/ Oil Black Paint/ Yellow Transparent/ Cold and Hot Dip Galvanized |
| Bending Radius | R=1D/ 2D/ 3D/ 5D/ 6D/ 8D/ 10D or Custom |
| Types | Return, Elbow, Reducing Tee, Equal Tee, Concentric Reducer, Eccentric Reducer, End Cap, Etc. |
| Forging Methods | ButtWeld And Welded Or Seamless |
| Production Technique | Forged/ Heat treated and machined |
| Standard | ANSI/ASME B16.28/ ASME/ANSI B16.9/ MSS-SP-43/ ASME/ANSI B16.11 |
Chemical Composition:
| % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S |
| Min. | Bal. | 20 | 12.5 | 2 | 2.5 | - | - | - | - | - | - | - |
| Max. | 22.5 | 14.5 | 6 | 3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.35 | 0.02 | 0.02 |
Mechanical & Physical Properties:
| Density | 8.69 g/cm3 |
| Tensile Strength | 100000 Psi, 690 Mpa |
| Yield Strength (0.2%Offset) | 45000 Psi, 310 MPa |
| Melting Point | 1399 °C (2550 °F) |
| Elongation | 45 % |
Applications:
Food industries
Fabrication industries
Cement industries
Sugar industries
Power plants
Oil and gas industry
Pulp and paper industry
Energy industries
Pharmaceutical industries
Modern architecture
Water waste systems
Heat exchangers
