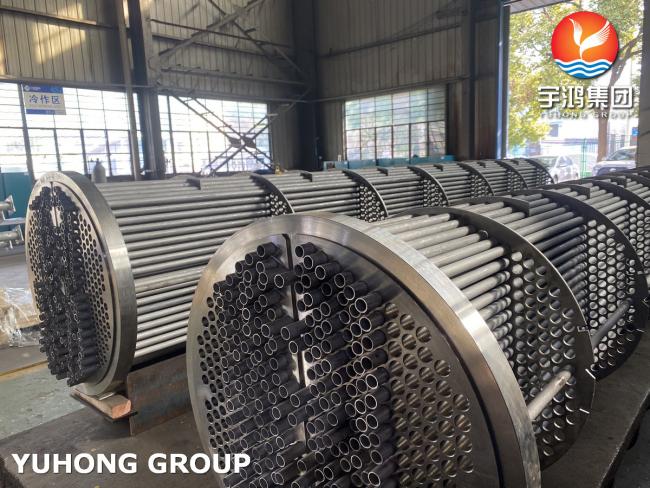

Heat Exchanger Tube Bundle, Stainless Steel Seamless Tube ASME SA213 TP316L , Tubesheet SA350 LF2 CL1N
Heat Exchanger Tube Bundle, Stainless Steel Seamless Tube ASME SA213 TP316L , Tubesheet ASME SA182 F316L
Yuhong Group has more than 30 years experience for Boiler tube, Heat Exchanger tube, condenser tube, air cooler Fin Tube, Heating equipment -Pin Tube/ Studded Tube, start from 2014 , Yuhong Group already start to support client of heat exchanger parts also , which like : Stationary Tubesheet, Floating Tubesheet, Baffle, Nozzle, Dishead, testing ring, back ring , Back flange, support plate, Tie rod, steel tube , fin tube, u bend tube , and material contain : Stainless Stee, Duplex Steel , Super Duplex Steel , Nickel Base Alloy Steel , Cr- Mo Alloy Steel , Carbon Steel , Copper / Copper Alloy Steel , Titanium , ... YUHONG brand already won good reputation from market , and export more than 85 countries .
| YUHONG GROUP Heat Exhanger Tube bundle parts- 081-E-0001 A/B/C | |||||||
| NO. | POS | DESPRITION | SIZE | MATERIAL | OVERLAY CLADDING | QUANTITY | |
| A | A--0 | Seamless TUBE | Ø19.05×2.11(min) x7315mm | ASME SA213 TP316L | / | 2490 | PCS |
| 11 | 3-1 | S.T. TUBE SHEET | Ø997×81mmT | SA350 LF2 CL1N | 8MM SS316L | 3 | PC |
| 12 | 3-2 | F.L. TUBE SHEET | Ø926×81mmT | SA350 LF2 CL1N | 8MM SS316L | 3 | PC |
| 17 | 4-5 | GASKET | Ø926×4mmT | SS316L+GRAPHITE | / | 9 | PCS |
| 21 | 5-4 | STUD B./2H.N | 1-8UNC×395L | SA320-L7/SA194-2H | / | 108 | PCS |
| 22 | 5-5 | SQ. STUD B./2H.N | 1-8UNC×445L | SA320-L7/SA194-2H | / | 33 | PCS |
| 27 | 7-1 | F.T H.D FLANGE | Ø1026×Ø894×100mmT | SA350 LF2 CL1N | 3MM SS316L | 3 | PC |
| 28 | 7-2 | F.T H.D COVER | Ø894×25mmT | SA516 GR.70N | 3MM SS316L | 3 | PC |
| 29 | 7-3 | BACKING RING | Ø1026×Ø894×167mmT | SA350 LF2 CL1N | / | 3 | PC |
| 32 | 10 | CONNECTION PIECES | Ø1018×Ø914×27mT | SA516 GR.70N | / | 6 | PCS |
| 33 | 1-1 | BAFFLE | Ø935.2×649.2×10mmT | SA516 GR.70N | / | 3 | PC |
| 34 | 1-2 | BAFFLE | Ø935.2×649.2×8mmT | SA516 GR.70N | / | 21 | PCS |
| 35 | 1-3 | BAFFLE | Ø935.2×649.2×10mmT | SA516 GR.70N | / | 3 | PC |
| 36 | 1-4 | BAFFLE | Ø935.2×649.2×8mmT | SA516 GR.70N | / | 21 | PCS |
| 37 | 1-5 | SUPPORT PLATE | Ø935.2×16mmT | SA516 GR.70N | / | 3 | PC |
| 38 | 3 | TIE ROD / NUTS | Ø13×6869mmL | SA36/194-2H | / | 24 | PCS |
| 39 | 4-1 | SEALING STRIP | 8×27×5579mmL | SA516 GR.70N | / | 12 | PCS |
| 40 | 4-2 | SEALING STRIP | 8×56.5×5579mmL | SA516 GR.70N | / | 6 | PCS |
| 41 | 5 | SLIDING SHOE | 16×41×6843mmL | SA516 GR.70N | / | 6 | PCS |
| 42 | 6 | IMPINGEMENT PLATE | T=12mm | SA516 GR.70N | / | 3 | PC |
| 43 | 7-1 | LIFTING LUG | 16×80×190 | SA516 GR.70N | / | 6 | PCS |
| 44 | 7-2 | LIFTING LUG | 16×80×190 | SA516 GR.70N | / | 6 | PCS |
| 45 | 7-3 | LIFTING LUG | 16×80×140 | SA516 GR.70N | / | 9 | PCS |
| 46 | 7-4 | LIFTING LUG | 16×95×170 | SA516 GR.70N | / | 12 | PCS |
| 47 | 7-5 | LIFTING LUG | 25×110×160 | SA516 GR.70N | / | 12 | PCS |
| 48 | 7-6 | LIFTING LUG | T=25mm | SA516 GR.70 | / | 12 | PCS |
| 49 | 7-7 | RIB PLATE | T=25mm | SA516 GR.70 | / | 12 | PCS |
| 50 | 7-8 | REINFORANCE PAD | T=14mm | SA516 GR.70 | / | 12 | PCS |
| 51 | 9-1 | EYE BOLT | M36×P4 | SA36 | / | 12 | PCS |
| 52 | 9-2 | PLUG | M36×P4×75 | SS304 | / | 12 | PCS |
| 53 | 10 | CENTERING PIN LUG | T=25mm | SA516 GR.70 | / | 6 | PCS |
| A | HEAT TREATMENT | ||||||
| B | HYDROSTATIC TEST | ||||||
| A | HARDNESS TEST | ||||||
| B | MECHANICAL PROPERTY | ||||||
| A | CHEMICAL ANALYSIS REPORT | ||||||
| B | WELDING PROCEDURE SPECIFICATIONS | ||||||
