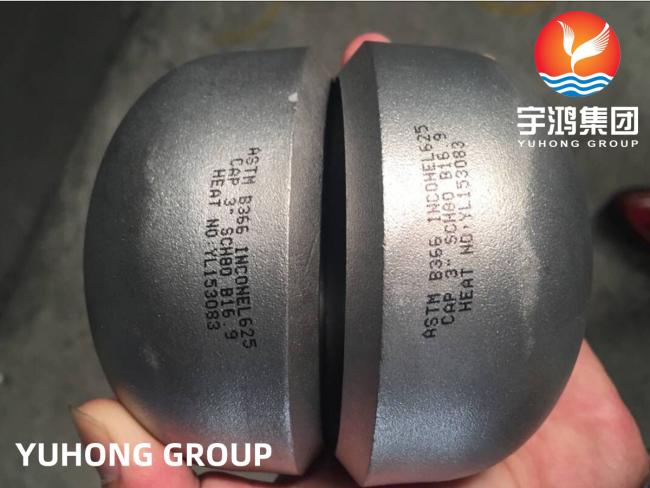

ASTM B366 UNS NO6625 Alloy Steel 625 Pipe Caps
ASTM B366 UNS NO6625 Alloy Steel 625 Pipe Caps
YUHONG supplies ASTM B366 alloy NO6625 material pipe fittings - Caps.
ASTM B366 This specification covers wrought welding fittings for pressure piping, factory-made from nickel and nickel alloys. Threaded fittings as covered in ASME B16.11 are also covered by this specification. The term welding applies to butt-welding or socket-welding parts such as 45 and 90° elbows, 180° bends, caps, tees, reducers, lap-joint stub ends, and other types, as covered by ASME B16.9, ASME B16.11, MSS SP-43, MSS SP-95, and MSS SP-97.
Specification Of ASTM B366 Hastelloy C276 Elbow
| Size | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Standard | EN, ISO, DIN, JIS, NPT |
| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld |
| Type | Butt Weld (BW), Seamless (SMLS) Welded |
| Surface Treatment | Sand Blasting, Sand Rolling, Sand Blasting |
| Thickness | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension | BS1640, EN 10253 - 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Surface Treatment | Transparent oil, rust-proof black oil or hot galvanized |
Chemical Composition % Max Of ASTM B366 Alloy 625
| Ni | Cr | Mo | Fe | Al | Nb+N | Ti | C | Mn | Si | Cu | P | S |
| 58min | 20-23 | 8-10 | 5 | 0.4 | 3.15-4.15 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Mechanical & Physical Property Of ASTM B366 Alloy 625
| Density | 8.4 g/cm3 |
| Melting Point | 1290-1350℃ |
| Tensile Strength | Psi – 1,35,000 , MPa – 930 |
| Yield Strength (0.2%Offset) | Psi – 75,000 , MPa – 517 |
| Elongation | 42.5% |
Application
Pipe line, Petroleum, Power, Oil and Gas, Metallurgy, Ship building, Construction, etc.
