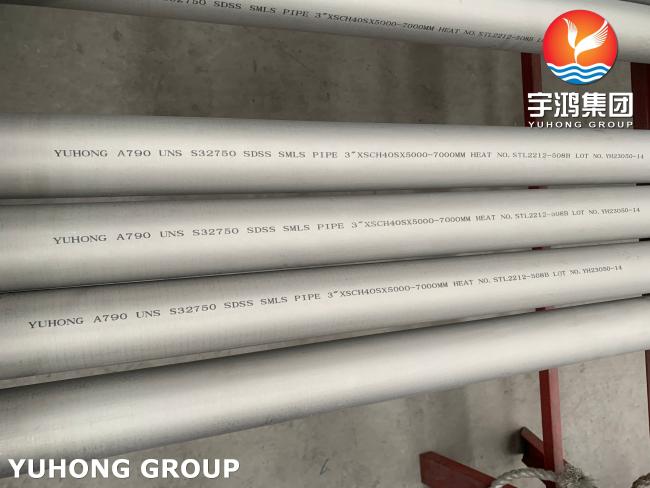

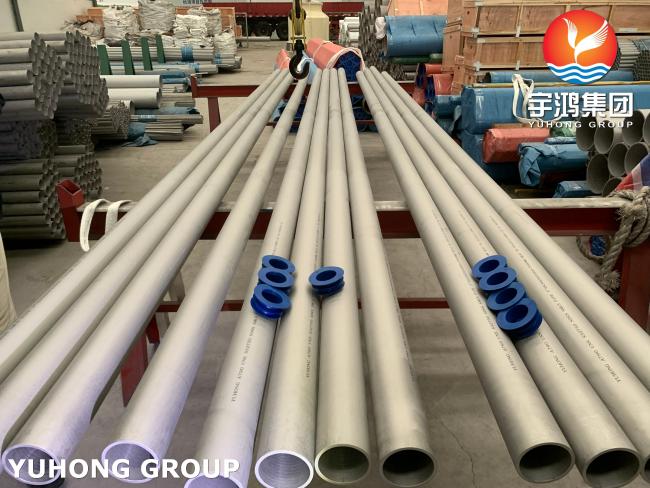

ASTM A790 UNS S32750, 1.4410 Super Duplex Stainless Steel Seamless Pipes For Waste Water Treatment
ASTM A790 UNS S32750, 1.4410 Super Duplex Stainless Steel Seamless Pipes For Waste Water Treatment
As the UNS S32750 Super Duplex Stainless Steel Pipe belongs to super duplex category, it is used for high strength and high corrosive applications. This alloy has 25% chromium in its composition along with 4% molybdenum and 7% nickel, which makes it stronger and much corrosion resistant than the ordinary duplex steel material.
ASTM A790 UNS S32750 Super Duplex Stainless Steel Seamless Pipes enhance resistance to corrosive and reducing media. A UNS S32750 per Duplex Stainless Steel Pipes also have enhanced resistance to chloride pitting and crevice corrosion. They have great workability and excellent weldability. The UNS S32750 SDSS Pipes have superior strength and good tolerance to stress corrosion cracking. These pipes have a low thermal expansion rate. UNS S32750 Super Duplex SS Pipe have excellent mechanical properties and good toughness.
Specification:
| Specification | ASTM A790, ASME SA790 |
| Dimensions | ASME B36.10M, ASME B36.19M |
| Sizes | 1/2" - 48 “ |
| Schedule | SCH10 - SCHXXS |
| Types | Seamless / ERW / Welded |
| Shapes | Round |
| End Abbreviations | Plain / Beveled End, Treaded |
Equivalent Material:
| Alloy | UNS Designation | Werkstoff NR. | AFNOR | Grade | DIN | EN | SS |
| 2507 | S32750 | 1.4410 | Z3 CN 25.06 Az | F53 | X 2 Cr Ni MoN 25.7.4 | 1.4410 | 2328 |
Chemical Composition:
| Carbon | 0.030 |
| Manganese | 1.20 |
| Phosphorous | 0.035 |
| Sulphur | 0.020 |
| Silicon | 0.80 |
| Chromium | 24.0–26.0 |
| Nickel | 6.0–8.0 |
| Molybdenum | 3.0–5.0 |
| Nitrogen | 0.24–0.32 |
| Iron | Bal. |
| Copper | 0.50 |
Mechanical Properties:
| Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) | Hardness, HB(max) |
| 116 [800] | 80 [550] | 15 | 300 |
Applications:
Seawater Desalination Equipment
Water Treatment Equipments
Chemical Process Equipments
Pressure Vessels
Piping and Heat Exchangers
Marine Applications
Flue Gas Scrubbing Equipment
Pulp & Paper Mill Equipment
Offshore Oil Production
Oil and Gas Industry
Shipbuilding Industry
Construction Industry
