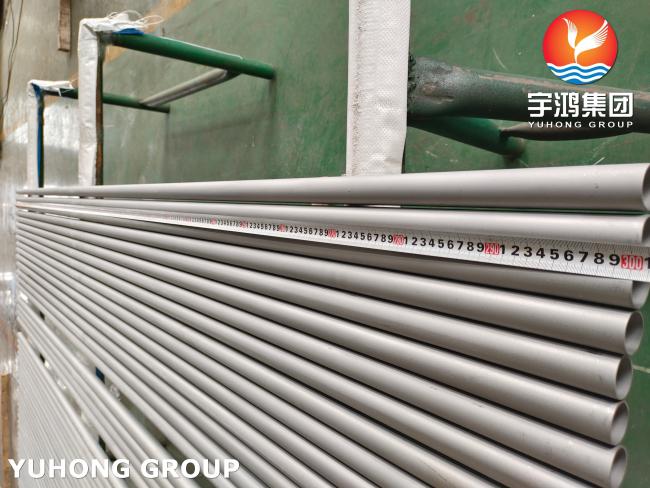

ASTM A268 TP410 (1.4006 UNS S41000) Ferritic Steel Seamless Tube For Heat Exchanger
ASTM A268 TP410 (1.4006 UNS S41000) Ferritic Steel Seamless Tube for Heat Exchanger
YUHONG GROUP deal with stainless steel seamless pipe and tube already more than 10 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 45 countries.
ASTM A268 /ASME SA268 TP410 tubes are known for their excellent corrosion resistance, particularly in mildly corrosive environments. They offer good strength, hardness, and wear resistance, making them suitable for high-temperature applications. TP410 tubes are commonly used in heat exchangers, boilers, condensers, and other industrial applications where resistance to corrosion, high temperatures, and mechanical stresses is required.
| ASTM A268 /ASME SA268 TP410 tubes are primarily composed of the following elements: |
| 1. Chromium (Cr): 11.5% to 13.5% |
| 2. Carbon (C): Maximum 0.15% |
| 3. Nickel (Ni): Maximum 0.75% |
| 4. Manganese (Mn): Maximum 1.0% |
| 5. Silicon (Si): Maximum 1.0% |
| 6. Phosphorus (P): Maximum 0.04% |
| 7. Sulfur (S): Maximum 0.03% |
| ASTM A268 /ASME SA268 TP410 tubes Mechanical Properties: |
| The mechanical properties of SA-268 TP410 tubes are typically as follows: |
| - Tensile Strength: 485 MPa (70,300 psi) minimum |
| - Yield Strength: 275 MPa (40,000 psi) minimum |
| - Elongation: 20% minimum |
| - Hardness: Rockwell B hardness of 95 maximum |
| ASTM A268 Stainless Steel Tubing Sizes Tolerance | |||
| Outside Diameter, In.[Mm] | OD Tolerance, In.[Mm] | Wall Thickness, % | Thin Wall Tubes |
| Up To1⁄2, [12.7], Excl | ±0.005 [0.13] | ±15 | |
| 1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td> | ±0.005 [0.13] | ±10 | Less Than 0.065 In. [1.6 Mm] Nominal |
| 11⁄2 To 31⁄2 [38.1 To 88.9], Excl | ±0.010 [0.25] | ±10 | Less Than 0.095 In. [2.4 Mm] Nominal |
| 31⁄2 To 51⁄2 [88.9 To 139.7], Excl | ±0.015 [0.38] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
| 51⁄2 To 8 [139.7 To 203.2], Incl | ±0.030 [0.76] | ±10 | Less Than 0.150 In. [3.8 Mm] Nominal |
Final Finishing:
Solution Annealed & Pickled
Application:
- Shell and tube heat exchangers
- Condensers
- Boilers
- Process heaters
- Heat Exchangers
- Refinery equipment
- Petrochemical plants
- Power generation facilities
- Others
![]()
