Embedded G Type Fin Tube Base Material ASME B163 Material NO4400 Aluminium For Heat Exchanger Evaporator Raditor
EMBEDDED G TYPE FIN TUBE BASE MATERIAL NO4400 + Aluminium FIN TUBE FOR HEAT EXCHANGER
ASME SB163 is a specification established by the American Society of Mechanical Engineers for seamless nickel and nickel alloy condenser and heat-exchanger tubes. The specification covers various grades of nickel and nickel alloys, including N04400, which is a grade of nickel-copper alloy.

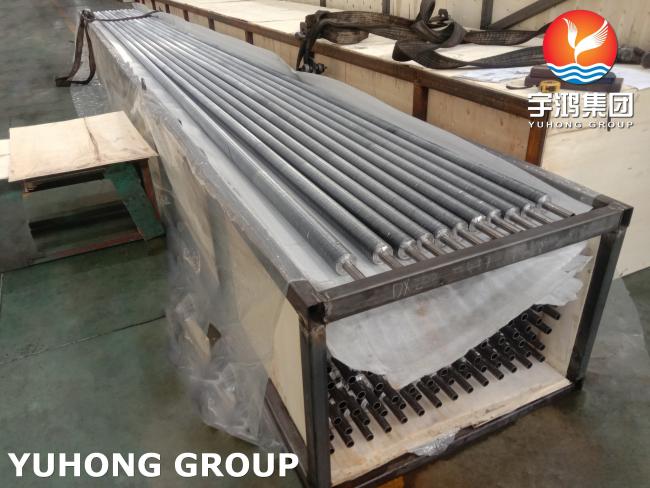

Embedded G type fin tube is a type of heat exchanger tube that has fins embedded onto its surface. These fins are usually made of a different material than the tube and increase the surface area for heat transfer, thereby improving the efficiency of the heat exchanger.
When referring to ASME SB163 N04400 Embedded G type fin tube, it means a heat exchanger tube made of nickel-copper alloy with G type fins embedded onto its surface. This type of tube is commonly used in various industrial applications, including chemical processing, power generation, and oil and gas refining, where efficient heat transfer is essential.
| Monel 400 Tubing Standards | ASME SB163 / ASME SB165 / ASTM B165 / ASTM B163 |
|---|---|
| Monel 400 Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| Monel 400 Welded Tube Size | 6.35 mm OD To 152 mm OD |
| ASME SB163 Alloy 400 Tubing Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| ASTM B163 Alloy 400 Tube wall thickness | 0.020" –0.220", (special wall thicknesses available) |
| Monel Alloy 400 Tubing Length | Single Random, Double Random, Standard & Cut length Tube |
| ASTM B163 Alloy 400 Tubing Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |
| Form | ‘U’ bent, Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Etc |
| Types of 400 Monel Tubing | Seamless, ERW, EFW, Welded, Fabricated Tube / Tubing |
| 400 Monel Tube End | Plain End, Beveled End, Treaded Tube |
| Marking | All ASME SB163 Monel 400 Tubing are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application & uses of Monel 400 Tubing | Oil Tube, Gas Tube, Fluid Tube, Boiler Tube, Heat exchanger Tube, |
| Value Added Service Provided By Supplier | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialize Supplier in | ASME SB163 Monel 400 Capillary Tube & Other Odd Size WNR 2.4360 Heat Exchanger & Condenser Tube |
| Test Certificate | Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection |
| Supplier of Monel 400 Tubing |
|
| We can also cut, thread, and groove WNR 2.4360 Tube to meet your specifications. Monel 400 Tubing Dimension ANSI/ ASME B36.10, B36.19, B2.1 | |
