Multicore tubes efficiently connect installation, maintenance and control at the same time. They are made of stainless steel, cunifer or copper.

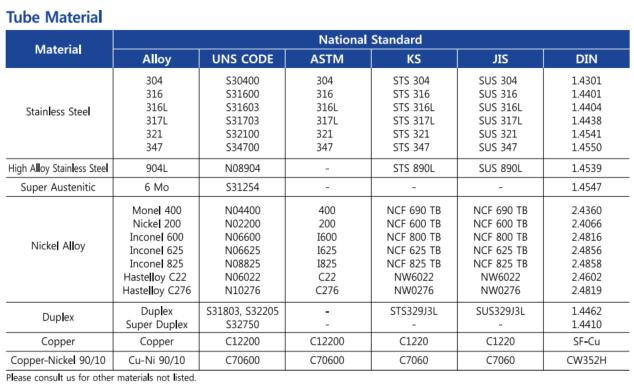

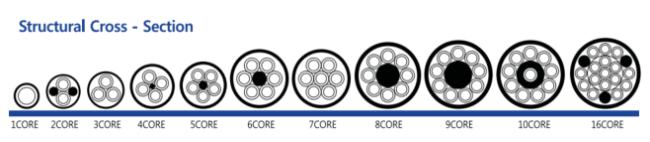

With a total of 10 tubes in the bundle, and other tube dimensions from 6 to 15 mm or from ¼” to ½” – up to the maximum operating pressure of 440 bar.Multicore tubes are used for pneumatic and hydraulic remote control, measuring and monitoring systems.materials are ASTM TP316/ 316L, TP304/304L The multicore tube consists of one to nine stainless steel tubes laid up spirally inside an extruded outer PVC sheath.

For easy identification and protection purposes each individual tube is PVC sheathed in a different color. The extruded outer sheath is made of oil and seawater resistant,weatherproof, flame retardant, corrosion and acid resistant PVC.


They are used mostly in,
