Haz Tubular, Stainless Steel , Carbon Steel , Copper Tube Bundles For Heat Exchanger

Haz Tubular, Stainless Steel , Carbon Steel , Copper Tube Bundles For Heat Exchanger

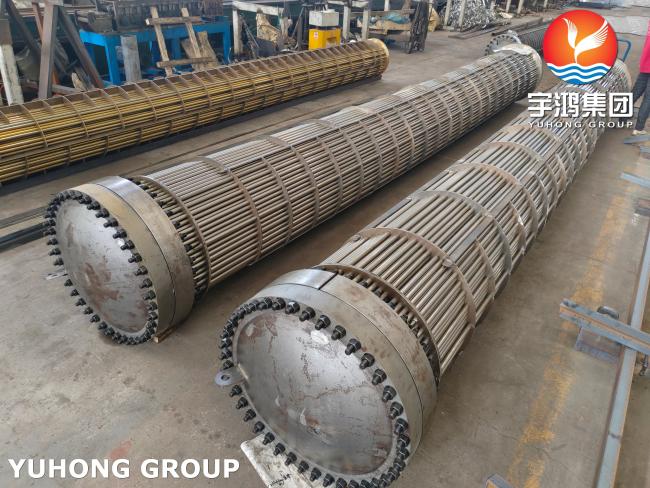

Bundle heat exchanger is a typical heat exchange device that exchanges heat between two fluids with different temperatures. Through this device, one fluid can be cooled and another fluid can be heated to meet their respective needs.

YUHONG can produce these tube bundles as clients' requests or assist customers in assembling bundles. Bundle---this equipment is widely used in industrial sectors such as chemical, petroleum, pharmaceuticals, and energy, and is one of the indispensable and important equipment in chemical production.

And in modern chemical industry, the investment in heat exchangers accounts for approximately 30% of the total equipment investment, and in refineries it accounts for about 40% of all process equipment. Seawater desalination process units are almost entirely composed of heat exchangers.

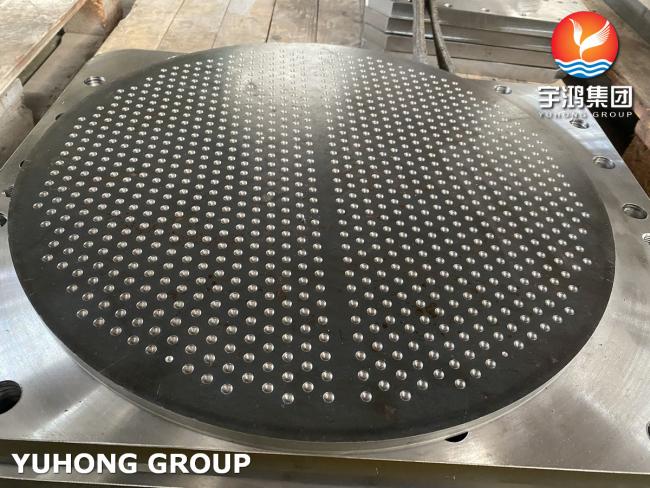

Tube Plate

The tube plate is one of the important components of a heat exchanger, used to arrange heat exchange tubes and play a role in separating the space between the tube side and the shell side.

Thin tube sheets have the advantage of saving materials and are used in medium and low pressure heat exchangers; The elliptical tube plate is welded together with the shell of the heat exchanger, which has good stress conditions and is suitable for high-pressure and large-diameter heat exchangers.

Types

Due to the different usage scenarios, purposes, and physical properties of the heat exchange medium, the structural type of shell and tube heat exchangers is determined.

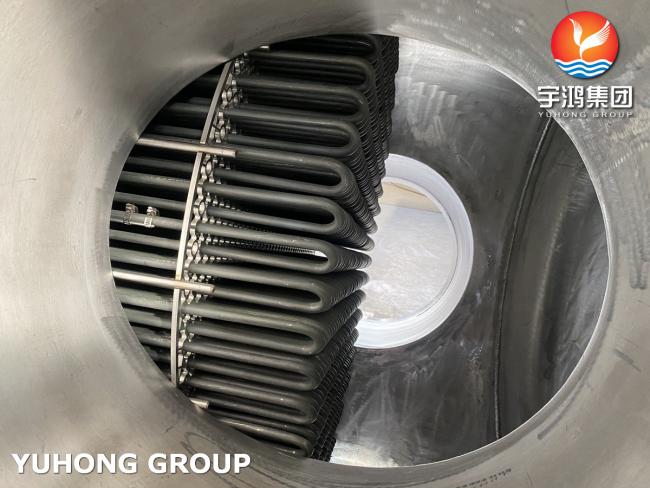

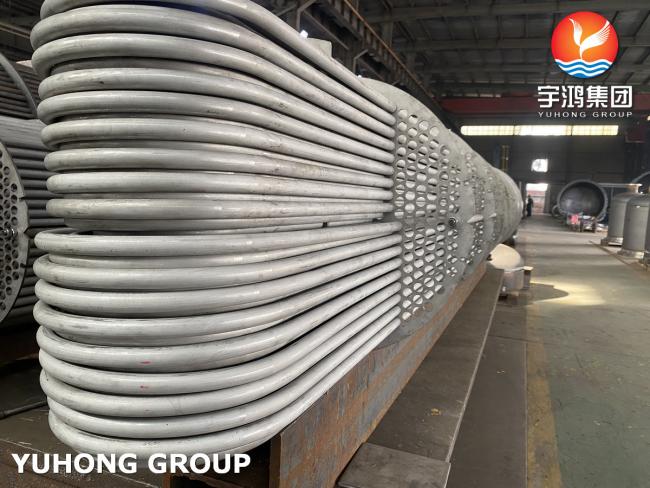

Three structural types of shell and tube heat exchangers: fixed tube plate type, Movable Tube Sheet Heat Exchanger, and U-shaped tube type.

Welcome inquiry to YUHONG!
