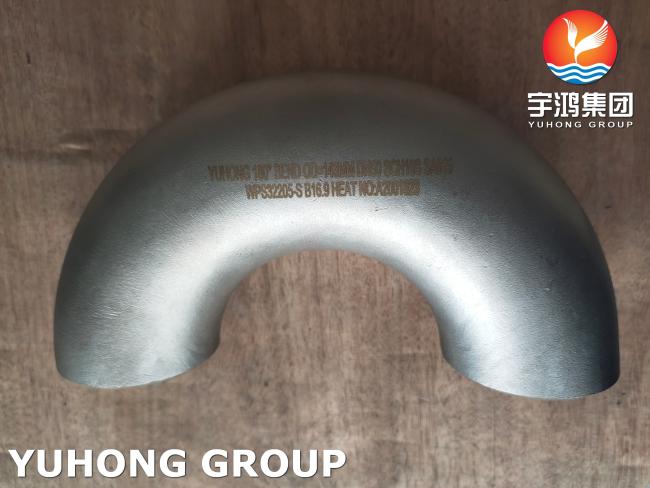

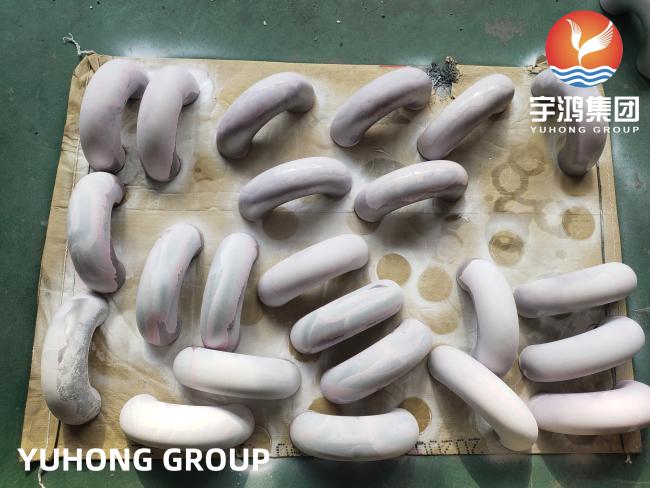

ASTM A815 WPS32205-S Duplex Stainless Steel Butt Weld 180 Degree U Bend For Desalination
ASTM A815 WPS32205-S Duplex Stainless Steel Butt Weld 180 Degree U Bend For Desalination
ASTM A815 WP-S UNS S32205 Duplex Stainless Steel Buttweld Fitting is a combination of Nickel, Molybdenum, Copper, Iron, Chromium, and Manganese, offering high strength and corrosion resistance in a range of acidic and alkaline environments. ASTM A815 WP-S S32205 Duplex Steel Butt Weld Pipe Fittings are stainless steel which enables combining improved resistance to pitting, high strength, stress corrosion, crevice corrosion and cracking. We, YUHONG GROUP, are manufacturer and exporter of ASTM A815 Duplex Stainless Steel Butt Weld Pipe Fittings with high quality.
Equivalent Material:
| Stainless Steel | Tradename | UNS NO. | Werkstoff No. | Density (g/cm3) |
| Duplex | F60 | S32205 | 1.4462 | 7.805 |
Features:
Good Corrosion Resistance
High Strength
Good Weldability
Versatility
Cost-Effectiveness
Rust proof finish
Easy to weld and conform
Specification:
| Specifications | ASTM A815, ASME SA815 |
| Size | Seamless: 1/2" - 10" Welded: 1/2" - 48" |
| Thickness | SCH10 - SCHXXS |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10, ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Types | Seamless / Welded / ERW / Fabricated |
| Connection | Welding |
| End | Beveled, Plain, Threaded |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees,Couplings, Reducers, Etc. |
Chemical Composition:
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
Mechanical Properties:
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Applications:
Oil and Gas Pipeline
Chemical Industry
Power Plant
Fabrication Industry
Food Processing Industry
Structural Pipe
Paper & Pulp Industry
Water Supply Systems
