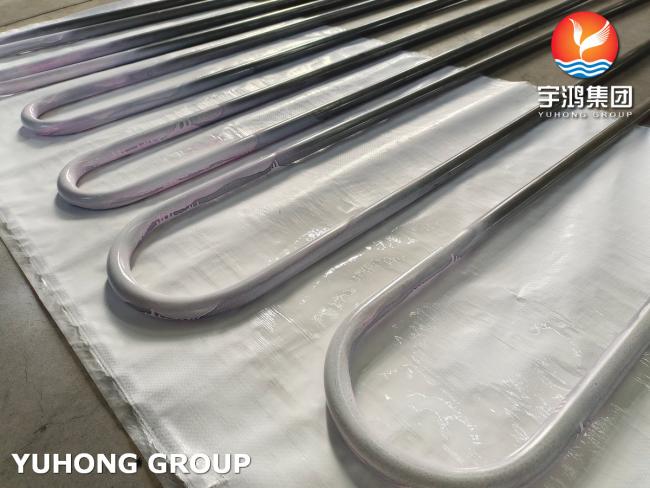

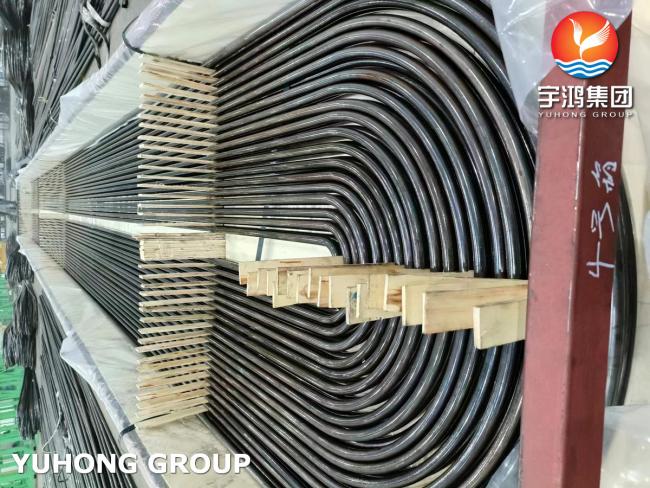

EN 10216-2 P265GH Seamless Carbon Steel U Bend Tubes are supplied in varnished condition in order to prevent formation of rust. EN 10216-2 Grade P265GH U Bend Tubes are used mainly for automobile sectors, interior and exterior architectural structures, water pipe lines, gas lines, oil and gas industries etc.
EN10216-2 P265GH Seamless Carbon Steel U Bend Tubes are reheated and furnished in full annlealed, isothermal annealed or normalised quenched and tempered condition. EN10216-2 P265GH Alloy Steel Seamless U Bend Tubes have a typical chemistry with additions of max 0.30 Chromium and max 0.08 Molybdenum. EN 10216-2 P265GH Seamless Carbon Steel U Bend Tube is a type of steel tube that is suitable for high temperatures and pressures.
Characteristics:
1.Material: Made from carbon steel, these tubes offer a good balance of durability, strength, and cost-effectiveness. Carbon steel is an alloy of iron and carbon, sometimes with other elements, which provides various mechanical properties depending on the carbon content and other alloying components.

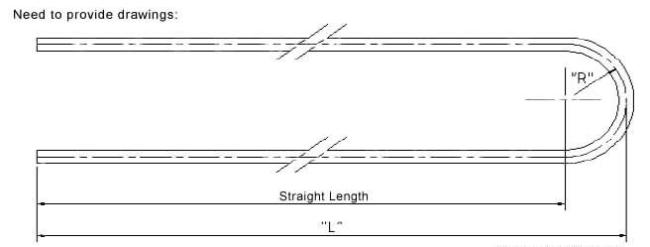

2.U-Shape Design: The U shape is integral for certain piping layouts, especially where a change in direction is needed without fittings or where space is limited. This design can also help absorb thermal expansion in piping systems.
3.Heat Treatment: After bending, these tubes often undergo heat treatment processes such as annealing or stress relieving to reduce residual stress and enhance material properties.
4.Size and Dimensions: They come in various sizes and wall thicknesses, depending on the application and the pressure requirements of the system they are being integrated into.
5.Corrosion Resistance: While carbon steel is less corrosion-resistant than stainless steel, coatings or other treatments can be applied to enhance its resistance to corrosion, especially in environments where corrosion is a concern.
Manufacturing Process:
Straight tube - U bending before 100% flaw detection - Using reliable bending machine and precision bending mould - Bending after the U-shaped part having the electric heating stress relief annealing - Bending after 100% water pressure
Chemical Properties:
| Grades | C% max | Si% max | Mn% max | P% max | S% max | Cr% max | Mo% max | Ni% max | Al.cał% min | Cu% max | Nb% max | Ti% max | V% max | Cr+ Cu+ Mo+ Ni% max |
| P265GH | 0.20 | 0.40 | 1.40 | 0.025 | 0.020 | 0.30 | 0.08 | 0.30 | 0.020 | 0.30 | 0.010 | 0.040 | 0.02 | 0.70 |
Mechanical Properties:
| Grades | Mechanical properties during tensile testing in room temperature | ||||||
| Upper yield limit or yield strength Re or R0.2 for wall thickness of t min | Tensile strength Rm | Elongation A min% |
|||||
| T≤16 | 16<T≤40 | 40<t≤60 | 60<T≤60 | ||||
| MPa | MPa | MPa | MPa | MPa | I | t | |
| P265GH | 265 | 255 | 245 | - | 410- 570 | 23 | 21 |
Applications:
Petrochemical Plant
Mechanical Equipment
Automotive Sectors
Fertilizer Plants
Sugar Industry
Steel Plants
Oil & Gas plants
Chemical Plants
Renewable Energy Plants
