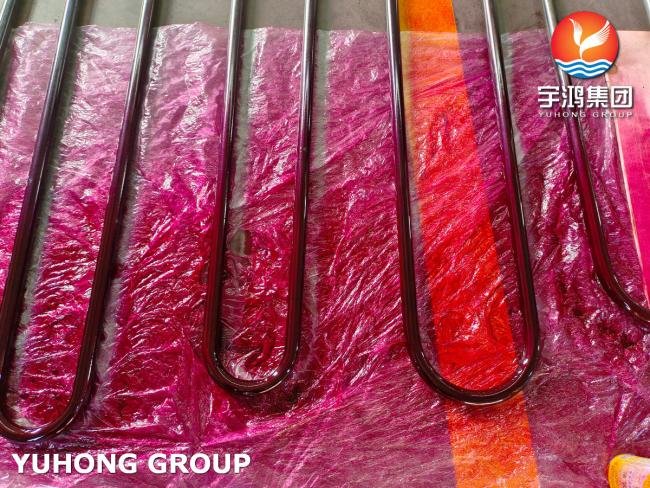

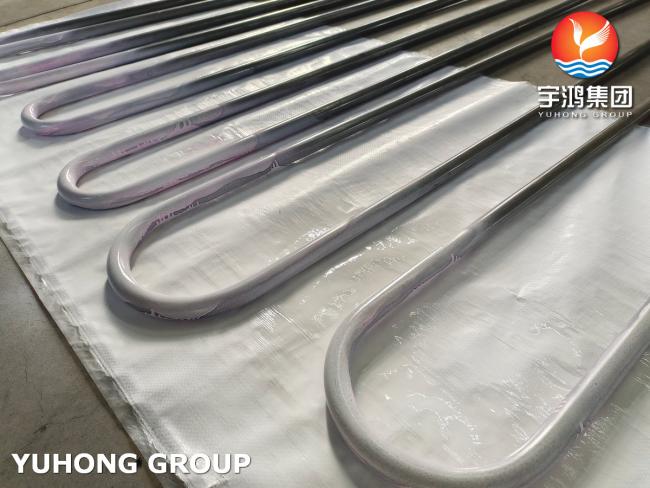

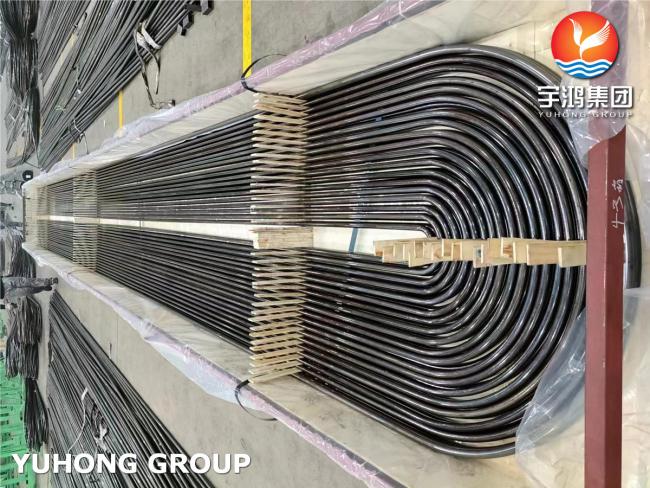

EN 10216-2 P265GH Carbon Alloy Steel Seamless U Bend Boiler Tube
EN 10216-2 P265GH Carbon Alloy Steel Seamless U Bend Boiler Tube
YuHong can offer P265GH seamless carbon steel bend U tubes and we sell these products with highest quality in more than 70 countries.
EN 10216-2, steel number 1.0425 is a European standard for seamless steel tubes for pressure purposes. It covers the procedures and specifications for manufacturing high-quality non-alloy and alloy seamless steel tubes. The standard includes the following steel grades: P195GH, P235GH, P265GH, 16Mo3, 14MoV6-3, 13CrMo4-5, 10CrMo9-10.
Chemical Composition Max
| C | Si | Mn | P | S | Cr | Mo | Ni | Al | Cu | Nb | Ti | V | Cr+Cu+Mo+Ni |
| 0.2 | 0.4 | 1.4 | 0.025 | 0.02 | 0.03 | 0.08 | 0.3 | 0.02 | 0.3 | 0.01 | 0.04 | 0.02 | 0.7 |
Mechanical Property
| Grade | Steel Number | Upper yield strength or proof strength, Wall Thickness T min. | Tensile Strength Rm | Elongation A min.% | ||||
| T≤16 | 16＜T≤40 | 40＜T≤60 | 60＜T≤100 | Mpa | longitudinal | transverse | ||
| Mpa | Mpa | Mpa | Mpa | |||||
| P265GH | 1.0425 | 265 | 255 | 245 | / | 410-570 | 23 | 21 |
Test Required
Corrosion Test
Chemical Analysis
Mechanical Tests: Flattening test, Flaring test, Flange test, Hardness Test and Hydrostatic test
Reverse-bend and Re. flat tests
Eddy Current Testing
Hydrostatic Testing
Air Under Pressure Test
Visual Inspection
Applications Industry
Pharmaceutical / Chemical Equipment
Power Generation
Sea Water Equipment
Petrochemicals
Heat Exchangers / Condensers / Boiler
Gas Processing
Specialty Chemicals
Pulp and Paper Industry
