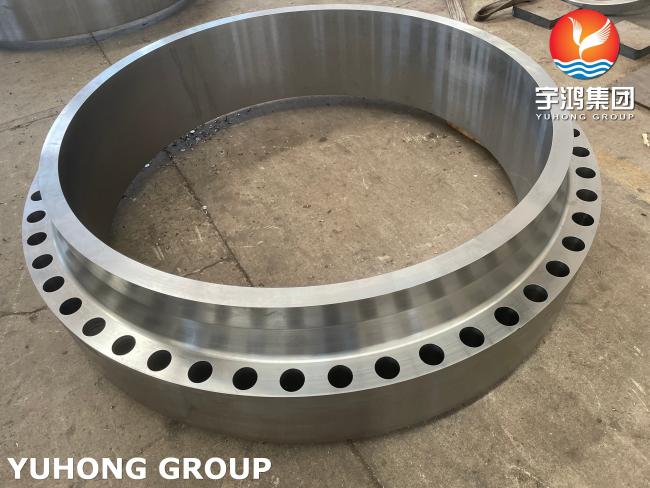

Forged Flange, ASME SA105 Carbon Steel Body Flange For Shell And Tube Heat Exchangers
Forged Flange, ASME SA105 Carbon Steel Body Flange For Shell And Tube Heat Exchangers
ASTM A105 carbon steel body flange is a reliable and versatile component which is widely used in various industries. Its composition of carbon and iron and its exceptional properties such as high tensile strength and corrosion resistance make it an ideal choice for demanding applications.
ASTM A105 Carbon Steel Flange is widely used in the construction of various types of pipe systems, particularly in oil and gas, petrochemical, and power generation industries. A105 Carbon Steel Flange has high strength and resistance to thermal creep deformation, making it ideal for being used in high-temperature applications. Its good ductility and toughness make it ideal for being used in pressure equipments which require a high level of structural integrity.
Specifications:
| Specifications | ASTM A105, ASME SA105 |
| Size | 1/2” to 48” |
| Pressure Ratings | Class 400 LB, 150 LB, 1500 LB, 300 LB, 900 LB, 2500 LB, 600 LB |
| Face Type | Raised Face, Flate Face, Ring Type Joint |
| Surface Treatment | Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Zinc Plated. |
Chemical Composition:
| Element | Composition, % |
| C | ≤ 0.35 |
| Mn | 0.60-1.05 |
| P | ≤ 0.035 |
| S | ≤ 0.040 |
| Si | 0.10-0.35 |
| Cu | ≤ 0.40 |
| Ni | ≤ 0.40 |
| Cr | ≤ 0.30 |
| Mo | ≤ 0.12 |
| V | ≤ 0.08 |
Mechanical Properties:
| Tensile Strength min. | Yield Strength min. | Elongation min. | Reduction of Area, min. | Hardness | ||
| MPa | ksi | MPa | ksi | % | % | HBW |
| 485 | 70 | 250 | 36 | 22 | 30 | 137-187 |
Applications:
Heat Exchangers
Chemical Industry
Power Plant
Fabrication Industry
Food Processing Industry
Oil and Gas Pipeline
Paper & Pulp Industry
Water Supply Systems
