B16.9 Buttweld Pipe Fitting ASTM A234 WP9 CL.1 / CL.3 Alloy Steel Elbow 90Deg.
B16.9 ASTM A234 WP9 CL.1 / CL.3 Alloy Steel 90 DEG. Elbow Buttweld Pipe Fittings
Alloy Steel products offer excellent resistance to corrosion, oxidation, and high-temperature environments, ensuring a durable and reliable piping system. ASTM A234 WP9 alloy steel elbow is designed to withstand elevated temperatures, making it suitable for use in industries such as oil and gas, petrochemical, power generation, and refining. These elbows are available in various sizes, schedules, and degrees of bend (e.g., 45 degrees, 90 degrees) to fit different piping configurations and requirements.
| Grade | C | Mn | Si | S | P | Cr | Mo |
|---|---|---|---|---|---|---|---|
| A234 WP9 | ≤0.15 | ≤0.6 | 1.00 | ≤0.03 | ≤0.03 | 8-10 | 0.90-1.10 |
ASTM A234 WP9 Alloy Steel Pipe Fittings Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
|---|---|---|---|
| A234 WP9 | 380 min | 585 min | ≥30 |
Standard Specification For Alloy Steel ASTM A234 WP9 Pipe Fittings
| Specifications | ASTM A234 / ASME SA234 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated) |
| Type | Seamless / Welded / Fabricated |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
Other Materials
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C276) |
| Stainless Steel | ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H |
| Duplex Steel | ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760 |
| Carbon Steel | ASTM / ASME A 234 WPB, WPC ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Alloy Steel | ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91 |

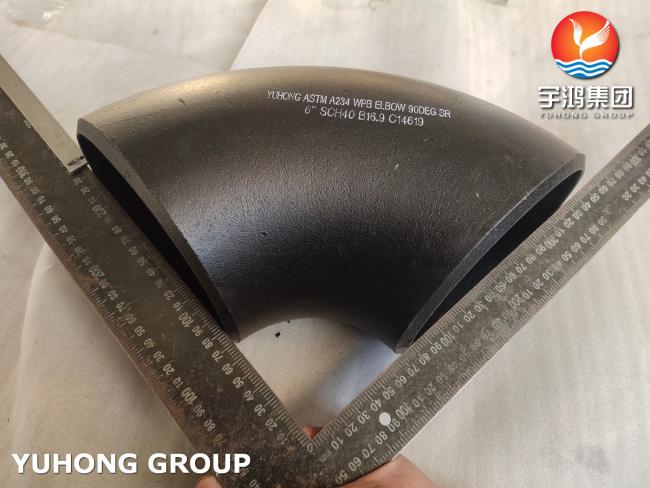

Butt Weld Elbow (90°)
Pipe elbow fittings is a very important pipe fitting. When we talk about a pipe elbow, it means a length of pipe with a sharp bend in it. Pipe elbows are fitting accessories which are used widely in various industrial sectors in pipe fitting. A pipe elbow is frequently used in pressurized applications and is available in various shapes and sizes for use in different applications. A pipe elbow is a fitting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction.
ASTM A234 WP9 Alloy Pipe Fittings Applications
- Oil and Gas Pipeline
- Chemical Industry
- Plumbing
- Heating
- Water Supply Systems
- Power Plant
- Paper & Pulp Industry
- General Purpose Applications
- Fabrication Industry
- Food Processing Industry
- Structural Pipe
