Embedded G Type Finned Tube ASME SA179 Seamless Carbon Steel Tube for Air Coolers
Embedded G Type Finned Tube ASME SA179 Seamless Carbon Steel Tube for Air Coolers
Yuhong Holding Group Co., Ltd. is a prominent manufacturer specializing in the production of finned tubes. With over 20 years of export experience, we proudly serve clients in 80 countries and rank among the top five exporters of finned tubes in China. Our manufacturing facility covers 20,000 square meters and is equipped with 55 advanced production lines and a dedicated workforce of over 110 employees. We utilize cutting-edge technology and equipment to provide the highest quality products and services in the industry.Yuhong Holding Group Co., Ltd. is a prominent manufacturer specializing in the production of finned tubes. With over 20 years of export experience, we proudly serve clients in 80 countries and rank among the top five exporters of finned tubes in China. Our manufacturing facility covers 20,000 square meters and is equipped with 55 advanced production lines and a dedicated workforce of over 110 employees. We utilize cutting-edge technology and equipment to provide the highest quality products and services in the industry.
TUBES SPECIFICATIONS
| Standards | ASTM, ASME and API |
| Size | 1/2” NB to 36” NB |
| Thickness | 3-12mm |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End | Plain End, Beveled End, Treaded |
Chemical Composition (%) Max.
| C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
Mechanical properties
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | Hardness(HRB) |
| 325 Min | 180 Min | 35 Min | 72 max |

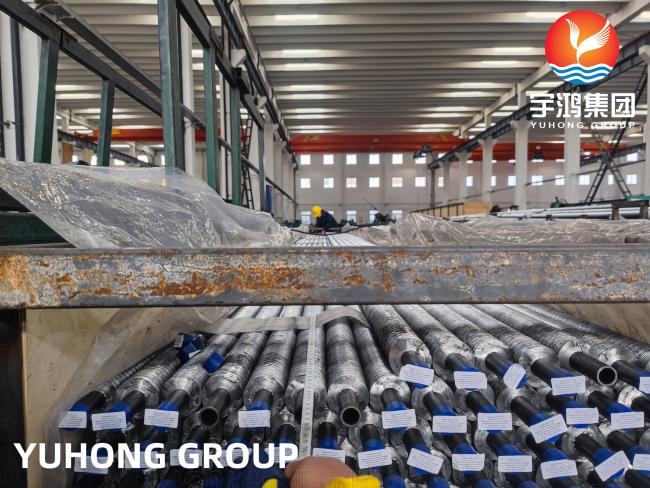

G Type Embedded Spiral Finned Tube
G-type embedded spiral finned tube is made by machining a steel strip of a certain width and depth of spiral groove on the steel pipe, and then the steel strip is set on the steel pipe by equipment. During the winding process, the steel band will be firmly wound in the spiral groove because the preload force reaches a certain level to ensure a certain contact area between the steel band and the steel tube. In order to prevent the steel belt spring from falling off from the optical tube, both ends of the steel belt need to be welded to the steel tube. In order to facilitate the setting, there should be a certain gap between the steel belt and the spiral groove. If the gap is too small, the commissioning process will be difficult to proceed smoothly.
In addition, there will always be a certain amount of springback in the wound steel strip, which prevents a good bond between the strip and the bottom of the spiral groove. Inlaying fins can be done on general equipment and at a very low cost. Our company adopts advanced production equipment in McElroy Company in the U.S.A. The advanced technology of slotting and pre-embedding, good self-stabilization, firm pre-embedding, pull-off force of not less than 70n, and the permissible temperature of up to 400℃, with strong resistance to temperature and thermal shock, are widely used in petrochemical air coolers.
Application
- Pharmaceutical Equipment
- Chemical Equipment
- Sea Water Equipment
- Heat Exchangers
- Condensers
- Pulp and Paper Industry
- Off-Shore Oil Drilling Companies
- Power Generation
- Petrochemicals
- Gas Processing
- Specialty Chemicals
For a rapid quotation, plz send with following requirement
Number of pieces,
base tube: Diameter, thickness, length and material specification.
Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
Delivery period required.
Payment term.

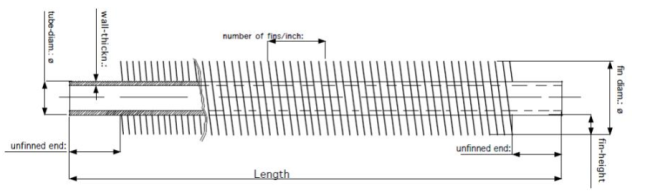

This drawing shows the detais we need.
