HFW Finned Tube: ASTM A213 Base Tube + AISI 410(11Cr) HFW Fins for H₂S Flue Gas Preheater
HFW Finned Tube: ASTM A213 Base Tube + AISI 410(11Cr) HFW Fins for H₂S Flue Gas Preheater
- ASTM A192 / A192M : Seamless Carbon Steel Boiler Tubes for High-Pressure Service
- ASTM A210 / A210M : Seamless Medium-Carbon Steel Boiler and Superheater Tubes
- ASTM A179 / A179M : Seamless Cold-Drawn Low-Carbon Steel Heat-Exchanger and Condenser Tubes
- Tube Type:Seamless (Cold Drawn)
- Ends:Plain ends or bevel ends.
- Surface protection:black painting,anti-rust oil or varnish.

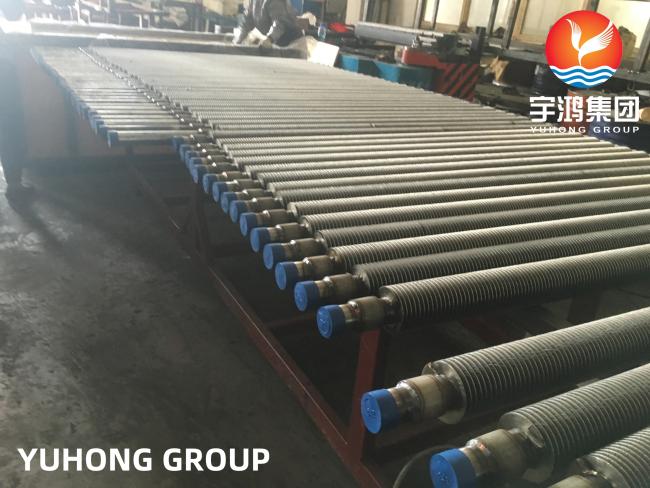

HFW Finned Tube: ASTM A213 Base Tube + AISI 410(11Cr) HFW Fins Detail
| General extrusion production capacity | General specifications of Extruded Fin Tubes |
|
Extrusion Facility: 10 finning machines. |
Tube OD: 12mm min.~50.8mm(2'') max. |
T22 Alloy Steel Seamless Fin Tube 11Cr High Frequency Welding Type Applications
Power Industry
-
Boiler Air Preheaters
-
Recovers heat from 540℃~580℃ flue gas to preheat combustion air (150℃~300℃), boosting boiler efficiency.
-
T22 alloy resists sulfide corrosion; high-frequency welding ensures strong fin-tube bonding for low thermal resistance.
Petrochemical Industry
-
Process Gas Preheaters
-
Preheats reaction gases (up to 600℃) in catalytic processes, withstanding H₂S/CO₂ corrosion and 10~20MPa pressure.
-
Fins stay secure under high-flow conditions, maintaining efficient heat transfer.
Metallurgy Industry
-
Furnace Flue Gas Preheaters
-
Recovers 600℃~700℃ waste heat to preheat combustion air (300℃~450℃) for steelmaking furnaces.
-
Resists dust fouling; compact design fits industrial spaces, reducing energy consumption.
Key Advantages in Preheaters
| Feature | Benefit |
| 540℃~700℃ heat resistance | Sustains high-temperature operation |
| High-frequency welded fins | 2~3x higher heat transfer vs. bare tubes |
| Corrosion/wear resistance | Reduces maintenance in harsh flue gas |
T22 Alloy Steel Seamless Fin Tube 11Cr High Frequency Welding Type Specifications
| Items | General Materials | Popular ASTM Materials |
| Core Tube Material |
Any metallic materials, as carbon steel, low-alloy steel, |
1. Carbon Steel: A179, A192,SA210 Gr A1/C,A106 Gr B |
| Fins Material |
1. Aluminum Alloy |
1. Aluminum(Alu.1100,Alu.1060,Alu.6063) |
|
All dimensions are in Inches and specification upon your requests. |
|||
|
Tube OD |
Fin Height |
Fin Thickness |
Fins per Pitch(Density) |
|
5/8 |
3/8,1/2 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
|
3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11, 12 |
|
1 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
|
1 1/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, |
|
1 1/2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10, 11 |
|
1 3/4 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
|
2 |
3/8,1/2,5/8 |
.015/.016/ .020 |
4, 5, 6, 7, 8, 9, 10 |
|
Please email us for more information. |
|||
T22 Alloy Steel Seamless Fin Tube 11Cr High Frequency Welding Type Competitive Advantage
-
We have more than 10,000 square meters workshop, including 10 extrusion finning machines, daily extrusion capacity up to 3,000 Meters.
-
The extrusion finning machines are designed and assembled by ourselves and we can offer you finning machines, extrusion muff sleeves and all accessories (extrusion finning disks) etc...
-
DR-extruded bimetallic fin tubes maximum operating temperature: 300 degree. The transfer coefficient remains steady.
-
DR-extruded bimetallic fin tubes have stronger fins than other mechanical fins, like L, LL, KL, and G, so it is much easier to clean.
-
In application of high stress and corrosive condiction, DR-extruded bimetallic fin tubes provides an excellent technical and economical savings in comparsion to a costlier single alloy tube, as the use of costlier material is reduced to the min.
