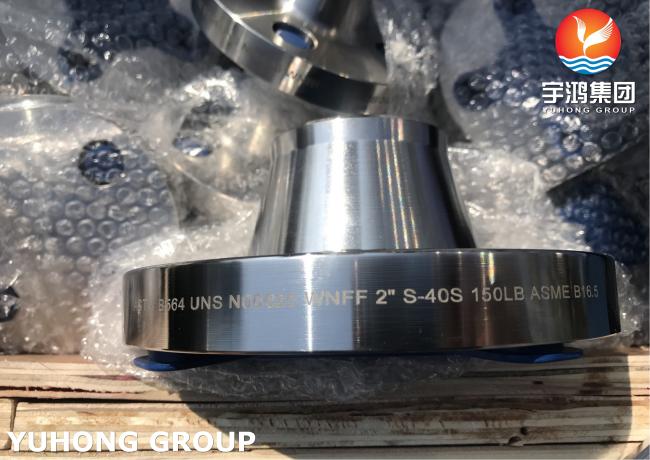

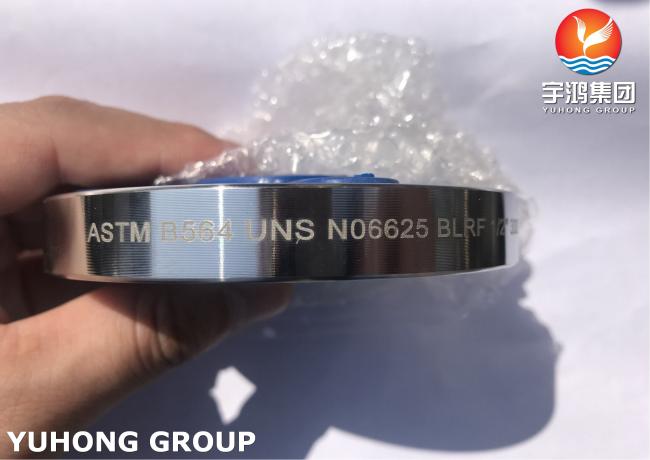

ASTM B564 N06625 (2.4856) Nickel Alloy Blind And Weld Neck Flange
ASTM B564 N06625 Inconel 625 Nickel Alloy Blind And Weld Neck Flange
ASME SB564 UNS N06625, also recognized as Inconel 625, is a high-strength, corrosion-resistant nickel-based superalloy commonly used in aerospace, marine, and chemical sectors due to its ability to perform under extreme conditions.
Alloy 625 has enhanced corrosion protection due to its Chromium, Molybdenum, and Columbium content. It has excellent seawater corrosion performance. Chemical processing equipment relies on the corrosion performance over a wide range of environments. Applications requiring strength and oxidation resistance at temperatures up to 1 800 degrees. In aerospace applications include components of jet engine exhaust and thrust reversers.
N06625 Chemical Composition
|
Grade |
C |
Mn |
Si |
Fe |
S |
Cr2 |
Al-Ti |
Ni |
|
|
625 |
min. |
– |
– |
– |
– |
– |
20.0 |
– |
58.0 |
|
max. |
0.10 |
0.50 |
0.50 |
5.0 |
0.015 |
23.0 |
0.40 |
– |
|
Corrosion Resistance of Nickel Alloy 625 Blind Flanges
|
Alloy |
|
Quiet |
|
Flowing, 2 ft/sec |
||
|
|
Weight Loss, g |
Range of Pit Depth, mils |
Weight Loss, g |
Range of Pit Depth, mils |
||
|
|
|
Panel |
Crevice Area |
|
Panel |
Crevice Area |
|
625 |
Nil |
Nil |
Nil |
0.25 |
Nil |
Nil |
Inconel 625 Flange Physical Properties
|
Density |
Melting Range |
Specific Heat |
Permeability at 200 Oersted |
Curie Temperature |
|||
|---|---|---|---|---|---|---|---|
|
lb/cu in |
gram/cc |
°F |
°C |
Btu/lb°F (J/kg°C) |
15.9 kA/m |
°F |
°C |
|
0.305 |
8.44 |
2350-2460 |
1290-1350 |
0.098(410) |
1.0006 |
<-320 |
-196 |
ASTM B564 UNS N06625 Flanges Mechanical Properties
|
Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness |
|
|
Rockwell B (HR B) max |
Brinell (HB) max |
||||
|
625 |
Psi – 1,35,000 , MPa -930 |
Psi – 75,000 , MPa – 517 |
42.5 |
– |
– |
Equivalent of Inconel 625
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Inconel 625 | N06625 | NA 21 | NiCr22Mo9Nb | 2.4856 | NC22DNB4M | ХН75МБТЮ | NCF 625 |
Applications:
- Oil And Gas Industry
- Fossil Fuel Power Plants
- Nuclear Power
- Paper & Pulp
- Ship Building
- Marine Applications
- Refineries
- Power Plants
