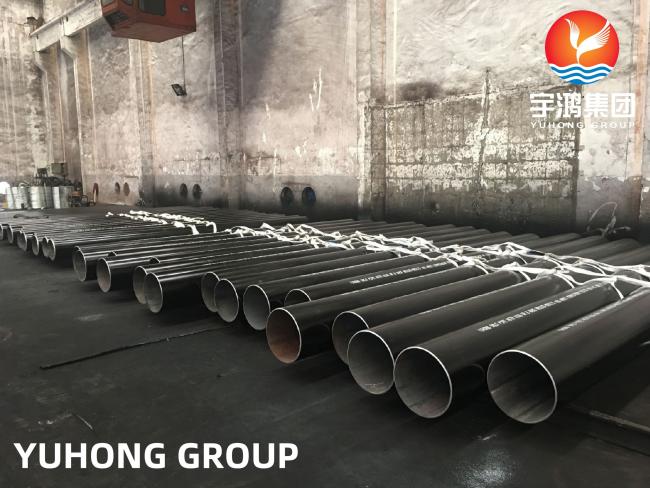

ASME SA106 API 5L A53 Grade B Carbon Steel Seamless Pipe for Oil and Gas Industry
ASME SA106 API 5L A53 Grade B Carbon Steel Seamless Pipe for Oil and Gas Industry
In the oil and gas industry, where reliability and durability are crucial, ASME SA106 Grade B carbon steel seamless pipes stand out. Engineered to endure high - temperature, high - pressure conditions, they ensure the safe and efficient transport of fluids, making them an essential choice for critical pipeline infrastructure.
ASME SA106 Grade B Carbon Steel Seamless Pipe Chemical Requirements
| Composition(%) | Carbon(max) | Manganese | Phosphorus(max) | Sulfur(min) | Silicon(min) | Chromium(max) | Copper(max) | Molybdenum(max) | Nickel(max) |
| Grade B | 0.3 | 0.29 - 1.06 | 0.035 | 0.035 | 0.1 | 0.4 | 0.4 | 0.15 | 0.08 |
ASME SA106 Grade B Carbon Steel Seamless Pipe Tensile Requirements
|
Property |
Tensile strength, min |
Yield strength, min |
|
Grade B |
60,000 psi (415 MPa) |
35,000 psi (240 MPa) |
ASME SA106 Grade B Carbon Steel Seamless Pipe Common Size
| NPS | DN | OD | 5s | 10s | 10 | 20 | 30 | 40s | STD | 40 | 60 | 80s | XS | 80 | 100 | 120 | 140 | 160 | XXS |
| 3/4 | 20 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||||||
| 1 | 25 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||||||
| 1 1/4 | 32 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 356 | 4.85 | 4.85 | 4.85 | 6.35 | 9.70 | |||||||
| 1 1/2 | 40 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||||||
| 2 | 50 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||||||
| 2 1/2 | 65 | 73 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||||||
| 3 | 80 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||||||
| 3 1/2 | 90 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||||||
| 4 | 100 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||||||
| 5 | 125 | 141.3 | 2.77 | 3.40 | 6.55 | 6.55 | 6.55 | 9.53 | 953 | 9.53 | 12.70 | 15.88 | 19.05 | ||||||
| 6 | 150 | 168.3 | 2.77 | 3.40 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||||||
| 8 | 200 | 219.1 | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 8.18 | 10.31 | 12.70 | 12.70 | 12.70 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 | |
| 10 | 250 | 273.1 | 3.40 | 4.19 | 6.35 | 7.80 | 9.27 | 9.27 | 9.27 | 12.70 | 12.70 | 12.70 | 15.09 | 18.26 | 21.44 | 25.40 | 28.58 | 25.40 | |
| 12 | 300 | 323.9 | 3.96 | 4.57 | 6.35 | 8.38 | 9.53 | 9.53 | 10.31 | 14.27 | 12.70 | 12.70 | 17.48 | 21.44 | 25.40 | 28.58 | 33.32 | 25.40 | |
| 14 | 350 | 355.6 | 3.96 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.70 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | |||
| 16 | 400 | 406.4 | 4.19 | 4.78 | 6.35 | 7.92 | 9.53 | 9.53 | 12.70 | 16.66 | 12.70 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | |||
| 18 | 450 | 457.2 | 4.19 | 4.78 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.70 | 23.83 | 29.36 | 34.93 | 3,967 | 45.24 | |||
| 20 | 500 | 508 | 4.78 | 5.54 | 6.35 | 9.53 | 12.70 | 9.53 | 15.09 | 20.62 | 12.70 | 26.19 | 32.54 | 38.10 | 44.45 | 50.01 | |||
| 22 | 559 | 4.78 | 5.54 | 6.35 | 9.53 | 12.70 | 9.53 | 22.23 | 12.70 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |||||
| 24 | 600 | 610 | 5.54 | 6.35 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.70 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | |||
| 26 | 660 | 7.92 | 12.70 | 9.53 | 12.70 | ||||||||||||||
| 28 | 700 | 711 | 7.92 | 12.70 | 15.88 | 9.53 | 12.70 | ||||||||||||
| 30 | 762 | 6.35 | 7.92 | 7.92 | 12.70 | 15.88 | 9.53 | 12.70 | |||||||||||
| 32 | 800 | 813 | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | |||||||||||
| 34 | 884 | 7.92 | 12.70 | 15.88 | 9.53 | 17.48 | 12.70 | ||||||||||||
| 36 | 900 | 914 | 7.92 | 12.70 | 15.88 | 9.53 | 19.05 | 12.70 | |||||||||||
| 38 | 965 | 9.53 | 12.70 | ||||||||||||||||
| 40 | 1000 | 1016 | 9.53 | 12.70 | |||||||||||||||
| 42 | 1067 | 12.70 | 15.88 | 9.53 | 19.05 | 12.70 | |||||||||||||
| 44 | 1100 | 1118 | 9.53 | 12.70 | |||||||||||||||
| 46 | 1168 | 9.53 | 12.70 | ||||||||||||||||
| 48 | 1200 | 1219 | 9.53 | 12.70 |
ASME SA106 Grade B Carbon Steel Seamless Pipe NACE Test Requirements
|
Test Type |
Test Standard |
Test Method |
Acceptance Criteria |
|
HIC Test |
NACE TM0284 |
Immerse specimens in H₂S - containing acidic solution (5% NaCl + 0.5% acetic acid, H₂S - saturated, pH 3.0 - 3.5) for 96h. Check cracks via microscopy, calculate CSR, CLR, CTR. |
CSR ≤ 1.5%, CLR ≤ 15%, CTR ≤ 3% (subject to project) |
|
SSCC Test |
NACE TM0177 |
Method A:Four point bending: Apply 80% yield strength stress to specimens in H₂S - containing environment (5% NaCl + 0.5% acetic acid, H₂S - saturated) for 720h to check cracks. |
No visible cracks under specified conditions |
