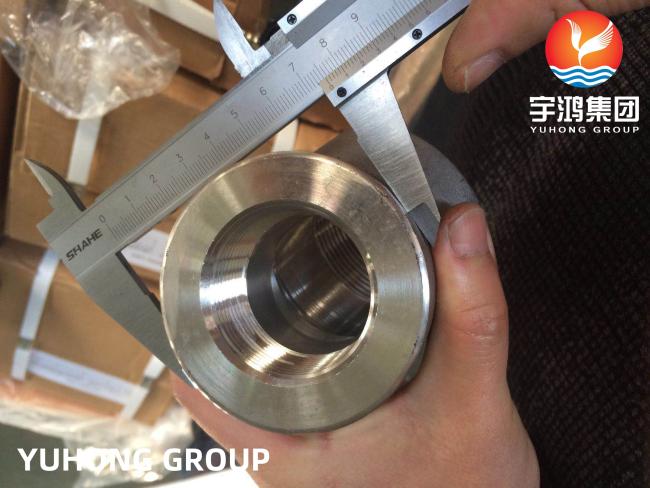

ASTM A182 F304L FORGED FITTINGS SW 3000#/6000#/9000# ASME B16.11 STAINLESS

ASTM A182 F304 is a standard specification for forged or rolled stainless steel pipe fittings that are made from austenitic stainless steel alloy 304. These fittings are commonly used in high-pressure and high-temperature applications in industries such as oil and gas, chemical processing, and power generation.

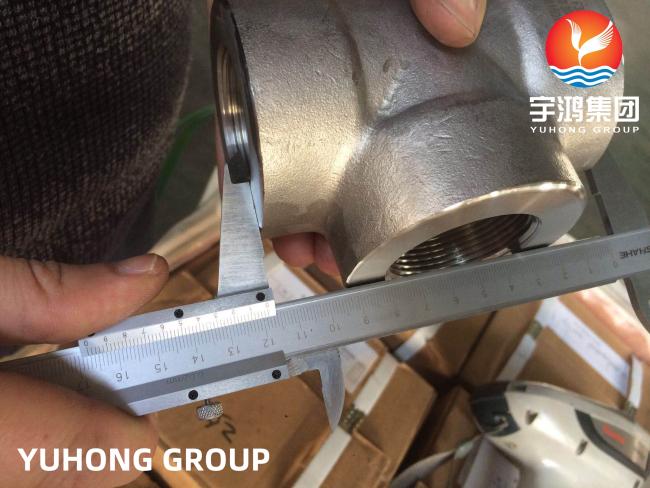

Some common types of ASTM A182 F304 fittings include elbows, tees, reducers, couplings, and caps. These fittings are designed to provide a leak-proof and reliable connection between pipes or tubing in a piping system.

ASTM A182 F304 fittings are known for their corrosion resistance, high strength, and durability. They are suitable for use in a wide range of environments and applications where resistance to corrosion is essential.

ASTM A182 F304 fittings are a popular choice for many industries due to their high-quality construction and performance characteristics.

STEEL ELBOW REDUCER TEE

Square Socket Reducer Inserts , Stainlesss, Carbon Steel , Duplex Steel , Nickel Alloy Steel .

Products Socket Reducer Inserts

Product Pictures and Drawings

Type1   Type2

Dimensional Data

Socket weld reducer Inserts availbale in class 3000, 6000 and 9000

Class 3000 Class 6000 Class 9000 Nominal Pipe Size C D Fitting Type A B E Fitting Type A B E Fitting Type A B E 3/8 x 1/4 0.675 0.555 1 7/16 3/4 15/16 1 7/16 7/8 1         1/2 x 3/8 0.850 0.690 1 7/16 13/16 1 1/16 1 7/16 15/16 1 3/16         1/2 x 1/4 0.850 0.555 1 7/16 13/16 15/16 1 7/16 7/8 1         3/4 x 1/2 1.060 0.855 1 7/16 7/8 1 5/16 1 7/16 1 1/16 1 3/8 1 7/16 1 3/16 1 3/4 3/4 x 3/8 1.060 0.690 2 7/16 5/8 - 1 7/16 7/8 1 3/16         3/4 x 1/4 1.060 0.555 2 3/8 11/16 - 2 3/8 7/8 -         1 x 3/4 1.325 1.065 1 9/16 15/16 1 1/2 1 9/16 1 1/8 1 11/16 1 9/16 1 1/4 2 1 x 1/2 1.325 0.855 2 1/2 5/8 - 1 7/16 1 1/8 1 3/8 1 7/16 1 1/8 1 3/4 1 x 3/8 1.325 0.690 2 7/16 11/16 - 2 1/2 7/8 -         1 x 1/4 1.325 0.555 2 3/8 3/4 - 2 3/8 15/16 -         1 1/4 x 1 1.670 1.330 1 9/16 1 1 7/8 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8 1 1/4 x 3/4 1.670 1.065 2 9/16 11/16 - 2 9/16 13/16 - 1 9/16 1 3/16 2 1 1/4 x 1/2 1.670 0.855 2 1/2 3/4 - 2 1/2 7/8 - 2 1/2 7/8 - 1 1/4 x 3/8 1.670 0.690 2 7/16 13/16 - 2 7/16 15/16 -         1 1/4 x 1/4 1.670 0.555 2 3/8 7/8 - 2 3/8 1 -         1 1/2 x 1 1/4 1.910 1.675 1 9/16 1 1/8 2 1/4 1 9/16 1 3/8 2 3/8 1 9/16 1 5/8 2 3/4 1 1/2 x 1 1.910 1.330 2 5/8 11/16 - 1 9/16 1 3/16 2 1 9/16 1 3/8 2 3/8 1 1/2 x 3/4 1.910 1.065 2 9/16 3/4 - 2 9/16 1 - 2 9/16 1 - 1 1/2 x 1/2 1.910 0.855 2 1/2 13/16 - 2 1/2 1 1/16 - 2 9/16 1 - 1 1/2 x 3/8 1.910 0.690 2 7/16 7/8 - 2 7/16 1 1/8 -         2 x 1 1/2 2.385 1.915 1 9/16 1 1/4 2 1/2 1 9/16 1 7/8 2 11/16 1 9/16 2 1/16 3 2 x 1 1/4 2.385 1.675 2 11/16 13/16 - 2 7/8 15/16 - 1 9/16 2 2 3/4 2 x 1 2.385 1.330 2 5/8 7/8 - 2 13/16 1 - 2 13/16 1 - 2 x 3/4 2.385 1.065 2 9/16 15/16 - 2 3/4 1 1/16 - 2 3/4 1 1/16 - 2 x 1/2 2.385 0.855 2 1/2 1 - 2 11/16 1 1/8 - 2 11/16 1 1/8 -
