AS4087 F316L BIind FF Stainless Steel Flanges
AS4087 F316L BIind FF Stainless Steel Flanges

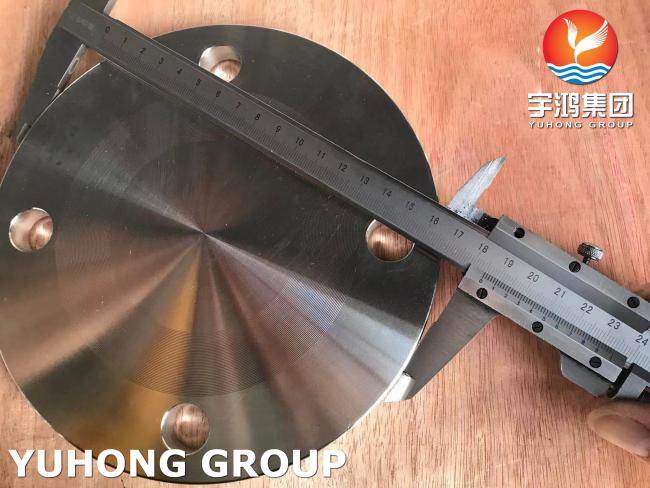

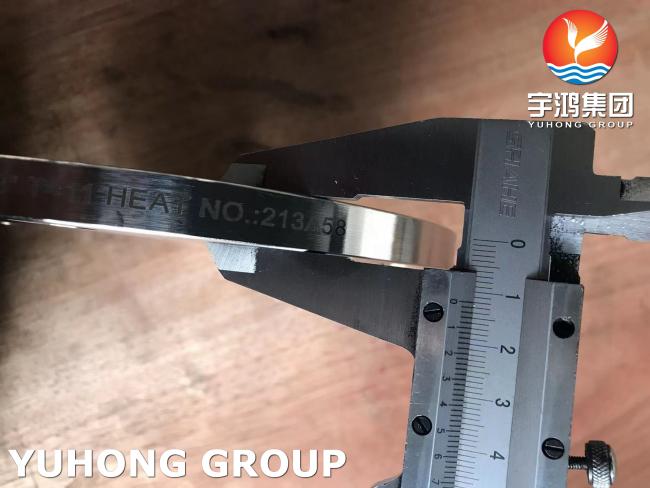

AS4087 F316L Blind FF Stainless Steel Flanges are flanges made from stainless steel grade 316L, which is a low-carbon version of 316 stainless steel. These flanges are designed to be blind or blanked off, meaning they have no opening or bore. They are used to seal the end of a pipe or vessel, preventing the flow of fluid or gas.
AS4087 is an Australian standard for flanges, and FF stands for flat face, indicating that the flange face is flat and does not have any raised features or grooves. This type of flange is commonly used in applications where a leak-tight seal is required, such as in chemical processing, oil and gas, and food and beverage industries.
The F316L stainless steel material offers excellent corrosion resistance, making it suitable for use in corrosive environments. It also has good strength and toughness properties, making it suitable for high-pressure and high-temperature applications.
AS4087 F316L Blind FF Stainless Steel Flanges are a reliable and durable choice for sealing off pipes or vessels in various industries.
316L Stainless Steel Flanges Chemical Chart
| Chemical Composition Of SS 316L Flanges | ||||
|---|---|---|---|---|
| Stainless Steel | A182 F316L | |||
| Ni | 10 – 14 | |||
| Fe | Balance | |||
| Cr | 16 – 18 | |||
| P | 0.045 max | |||
| S | 0.030 max | |||
| N | ||||
| Ti | ||||
| Mo | 2 – 3 | |||
| C | 0.10 max | |||
| Si | 0.75 max | |||
| Mn | 2 max | |||
Mechanical Chart Of SS 316l Pipe Flanges
| SS 316L Flanges Mechanical Properties | |||||
|---|---|---|---|---|---|
| Gr. | Tensile Strength | Melting Point | Yield Strength (0.2%Offset) | Density | Elongation |
| ASTM A182 316L | Psi – 75000 , MPa – 515 | 1399 °C (2550 °F) | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 35 % |
SS 316l Flanges Physical Properties
| Physical Properties Of SS 316L Flanges | |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Application
- ASTM A182 F321 Flange Application
- Oil and Gas Industries
- Food Processing Industries
- Equipments
- Pipeline
- Power Industries
- Ship Building Industries
- Paper Industries
- Cement Industries
- Chemical Industries
