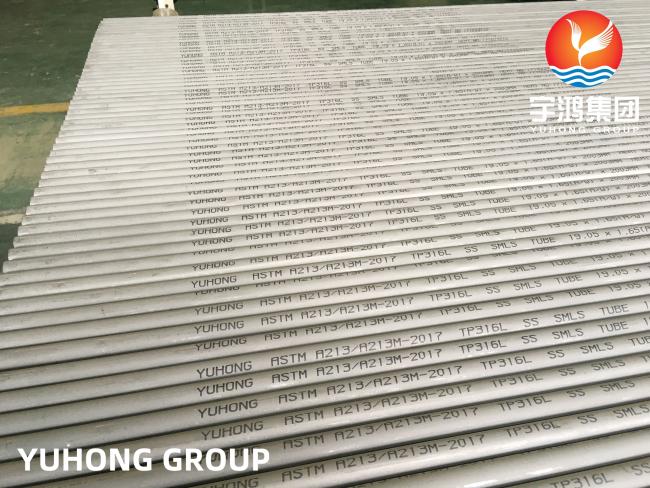

ASME SA213 TP316L Seamless Stainless Steel Tube BWG 20 0.89mm For Drycooler
ASME SA213 TP316L Seamless Stainless Steel Tube BWG 20 0.89mm for Drycooler
YUHONG SPECIAL STEEL is a large supplier and manufacturer of a wide range of stainless steel tubes. SA 213 standard covers heat exchanger tubes made of ferritic and austenitic steels. sa213 316L is a lower carbon version of the 316 material. As a result, SA 213 Tp 316L has higher toughness but lower strength than 316 grade pipes. SA 213 Tp 316L tubes can be produced by resistance welding, electrofusion welding or cold drawing.
Material Grade
|
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Nickel Alloy: UNS NO8800, NO8811, NO8825, NO8810, NO718, NO690, NO6625, NO6600, NO4400 Others:TP405,TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
|
GOST |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
STANDARD TUBE SIZE
| Tube | Outside diameter | Wall thickness | ||||
| Size | inch | mm | BWG | inch | mm | |
|
|
||||||
| 1/4 " | 0.250 | 6.350 | 22 | 0.028 | 0.711 | |
| 24 | 0.022 | 0.559 | ||||
| 3/8 " | 0.375 | 9.525 | 18 | 0.049 | 1.245 | |
| 20 | 0.035 | 0.889 | ||||
| 22 | 0.028 | 0.711 | ||||
| 1/2 " | 0.500 | 12.700 | 18 | 0.049 | 1.245 | |
| 20 | 0.035 | 0.889 | ||||
| 5/8 " | 0.625 | 15.875 | 16 | 0.065 | 1.651 | |
| 18 | 0.049 | 1.245 | ||||
| 20 | 0.035 | 0.889 | ||||
| 3/4 " | 0.750 | 19.050 | 12 | 0.109 | 2.769 | |
| 14 | 0.083 | 2.108 | ||||
| 16 | 0.065 | 1.651 | ||||
| 18 | 0.049 | 1.245 | ||||
| 20 | 0.035 | 0.889 | ||||
| 7/8 " | 0.875 | 22.225 | 14 | 0.083 | 2.108 | |
| 16 | 0.065 | 1.651 | ||||
| 18 | 0.049 | 1.245 | ||||
| 20 | 0.035 | 0.889 | ||||
| 1 " | 1 | 25.400 | 12 | 0.109 | 2.769 | |
| 14 | 0.083 | 2.108 | ||||
| 16 | 0.065 | 1.651 | ||||
| 18 | 0.049 | 1.245 | ||||
| 1 1/4 " | 1.250 | 31.75 | 10 | 0.134 | 3.404 | |
| 12 | 0.109 | 2.769 | ||||
| 14 | 0.083 | 2.108 | ||||
| 16 | 0.065 | 1.651 | ||||
| 2 " | 2.000 | 50.800 | 12 | 0.109 | 2.769 | |
| 14 | 0.083 | 2.108 | ||||
|
|
||||||
Quality tests
| Corrosion Test | Conducted only when specially requested by the client |
| Chemical Analysis | Test done as per required quality standards |
| Destructive / Mechanical Testing | Tensile | Hardness | Flattening | Flare | Flange |
| Reverse-bend and Re. flat tests | Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end |
| Eddy Current Testing | Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System |
| Hydrostatic Testing | 100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s . |
| Air Under Pressure Test | To check any evidence of air leakage |
| Visual Inspection | After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections |
