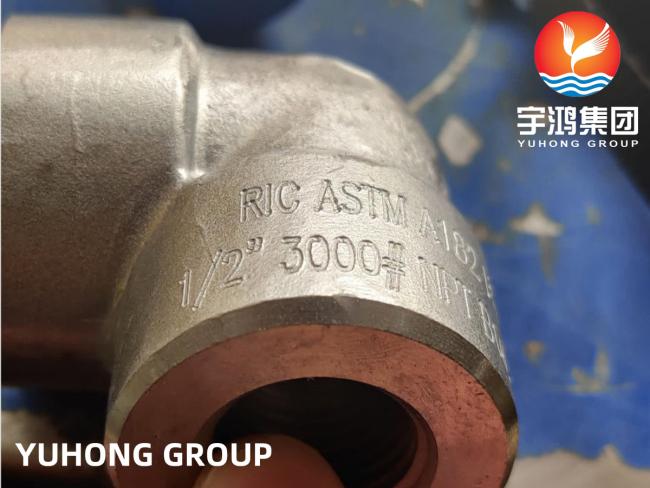

A182 F53 F92 1/2" #3000 90° Elbow Socketwelded ASME B16.11 For Power Plants
ASTM A182 F53 F92 90° Elbow Socketwelded ASME B16.11 for Power Plants

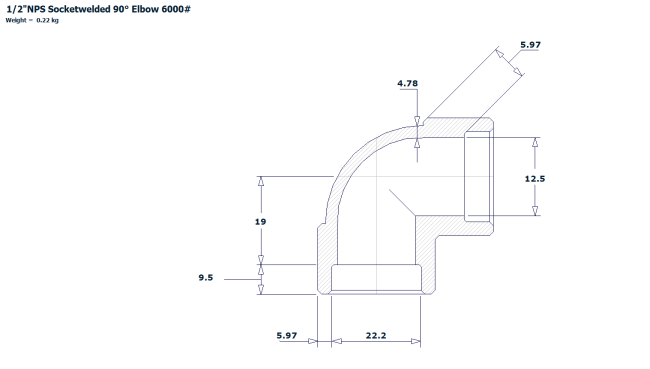

YUHONG'S Designed to meet ASME B16.11 and MSS SP standards, the socket weld 90-degree elbow is a high-integrity fitting used to change the direction of flow in a pipework system by 90 degrees. Designed for socket weld installation, this elbow ensures a strong, leak-proof connection, ideal for high-pressure applications. The fitting can be inserted into the groove of a valve, flange or other pipe fitting, creating a smooth bore and enhancing fluid flow dynamics with minimal turbulence.
Elbows are made from materials such as forged carbon, stainless or alloy steel for excellent durability and corrosion resistance. They are available in sizes ranging from 1/8″ to 4″ NB for a variety of pipe diameters. Socket weld connections also provide additional strength and fatigue resistance, making them suitable for thermal cycling conditions and dynamic loads in industrial environments such as chemical processing, oil and gas, and power generation. These elbows are important for systems where space is limited and piping configurations require smaller radii.
| Material Grade | ASTM A182 F53 |
|---|---|
| Class Rating | CLS 3000 |
| Angle | 90 DEG |
| End Type | SW |
| Dimensional STD | ASME B16.11 |
| Material Type | DSS |
| ASME B16.11 | Forged threaded fittings:90-deg elbow,45-deg elbow,tee,cross,coupling,half-coupling,cap,square head plug,hex head plug,round head plug,hex head bushing,flush bushing,street elbows | ||||
| ASTM A182 /ASME SA182 |
Standard Specification for Forged or Rolled Alloy-Steel Pipe Flanges, Forged Fittings, and Valves and Parts for High-Temperature Service | ||||
| Low alloy Steels | F1 | F2 | F5, F5a | F5 | F91 |
| F92 | F911 | F11, | F12 | F36 | |
| F21, F3V, F3VCb | F22, 1/3/V | F23 | F24 | FR | |
| F122 | F10 | F9 | |||
| Martensitic and Ferritic Stainless steel |
F6a | F6b | F6NM | F XM-27Cb | F429 |
| F430 | |||||
| Austenitic Stainless steel | F304 | F304H | F304L | F304N | F304LN |
| F309H | F310 | F310H | F310MoLN | F316 | |
| F316H | F316L | F316N | F316LN | F316Ti | |
| F317 | S31727 | S32503 | F321 | F321H | |
| F347 | F347H | F347LN | F348 | F348H | |
| FXM-11 | FXM-19 | F20 | F44 | F45 | |
| F46 | F47 | F48 | F49 | F56 | |
| F58 | F62 | F63 | F64 | F904L | |
| Ferritic-Austenitic Stainless steel | F 50 | F 51 | F 52 | F 53 | F 54 |
| F 55 | F 56 | F 57 | F 58 | F 59 | |
| F60 | F61 | F65 | F65 | F67 | |
Application:
- Paper & Pulp Companies
- High Pressure Applications
- Oil and Gas Industry
- Chemical Refinery
- Pipeline
- Nuclear Power Plants
- Food Processing and Dairy Industries
