Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
Flat Welding Flange EN1092-1 TYPE 01/A 1.4307 1.4404 DN50/60.3 DN100 PN10/16
YUHONG'S each classification is labelled with the lettering EN 1092-1 (i. e. the reference standard) followed by a two-digit number indicating the construction of the flange, and a letter which indicates the kind of sealing surface of the flange.
The labelling on the side of all kinds of flanges includes not only the lettering EN 1092-1 TYPE___, but also information concerning PN, DN and casting of the raw material used for the creation of the flange.
Europe countries mainly install flanges according to standard EN 1092-1 FLANGE STANDARD (forged Stainless or Steel Flanges). Similar to the ASME flange standard, the EN 1092-1 standard has the basic flange forms, such as weld neck flange, blind flange, lappedthe flange, threaded Flange (Thread ISO7-1 instead of NPT), weld on collar, pressed collars, and adapter flange such as flange coupling GD pressfittings. The different forms of flanges within the EN 1092-1 (European Norm Euronorm) is indicated within the flange name through the type.
| Flange type (typ) as in DIN EN 1092-1 | |
| EN 1092-1 type 01 (Plate [slip-on] flanges for welding) | 13 (Hubbed threaded flanges) |
| EN 1092-1 type 02 (Loose plate flanges with weld-on plate collar) | 21 (Integral flanges) |
| EN 1092-1 type 04 (Loose plate flanges with weld-neck collar) | 32 (Weld-on plate collars) |
| EN 1092-1 type 05 (Blank [blind] flanges) | 33 (Lapped pipe ends) |
| EN 1092-1 type 11 (Weld-neck flanges) | EN 1092-1 34 (Weld-neck collars) |
| EN 1092-1 12 (Hubbed slip-on flanges for welding) | 36 (Pressed collar with long neck) |
| 37 (Pressed collar) | |
| Grade : | X2CrNi18-9 |
| Number: | 1.4307 |
| Classification: | Austenitic stainless steel |
| Density: | 7.9 g/cm ³ |
| EN | ASTM/ASME |
|---|---|
| 1.4301 / 1.4307 | AISI 304 / 304L |
| 1.4401 / 1.4404 | AISI 316 / 316L |
| 1.4541 | AISI 321 |
| 1.4571 | AISI 316Ti |
Properties
| Dimensions: | DN50 2" (ø 60,3 mm) |
|---|---|
| Hole size (mm): | 60.3 |
| Material type: | 304 (L) |
| Pressure stage: | PN10, PN16 |
| Number of holes: | 4 x M16 |
| Outside diameter (mm): | 165 |
| Hole spacings: | 125 mm |
Dimensions
| Dimension A | 20 |
|---|---|
| Dimension B | 165 |
| Dimension C | 60,3 |
| Dimension D | |
| Dimension E | 125 |

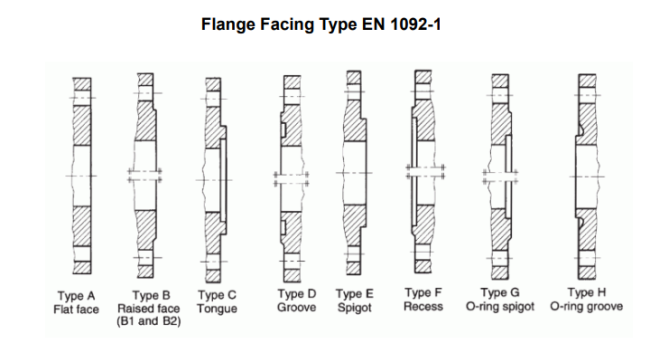

| Form: types of Contact Faces | DIN EN 1092-1 |
|---|---|
| Without Raised Face | Form A |
| Raised Face (Rz = 160 Mechanical Turned) | Form B1 |
| Raised Face ( Rz = 40 Mechanical Turned) | Form B1 |
| Raised Face (Rz = 16 Mechanical Turned) | Form B2 |
| Tongue According to DIN2512 | Form C |
| Groove According to DIN 2512 | Form D |
| Male According to DIN 2513 | Form E |
| Female According to DIN 2513 | Form F |
| Female According to DIN 2514 | Form G |
| Male According to DIN 2514 | Form H |
