ASTM B171 / B171M UNS C46400 Naval Brass Tube Sheet For Heat Exchanger
Price:
Negotiable
MOQ:
1PC
Delivery Time:
7 DAYS
Brand:
YUHONG
Product Description

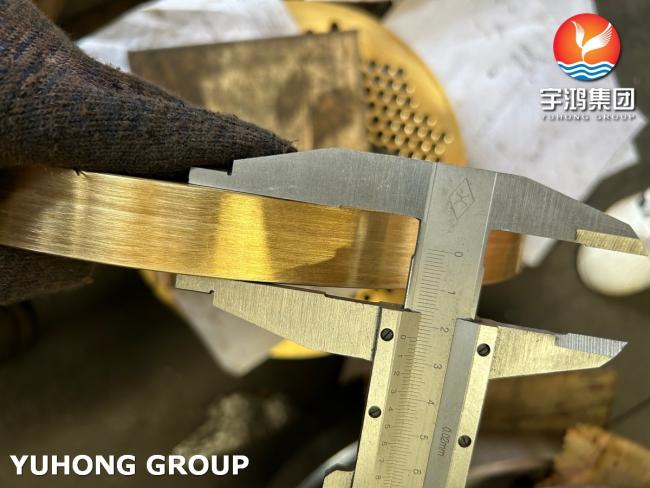

ASTM B171 Naval Brass C46400 Tube Sheet for Heat Exchanger
The material C46400, also known as naval brass, is a type of copper alloy that typically contains copper, zinc, and a small amount of tin. C46400 tubesheets are an excellent choice for industries. It's known for its good corrosion resistance, particularly in marine environments, and excellent strength and durability. Their ability to perform well in challenging environments makes them reliable for various applications, especially in marine setting and also frequently used in heat exchangers, condensers, and other marine and industrial applications where resistance to corrosion is essential.
| Elements | |||||
|---|---|---|---|---|---|
| Cu(1) | Pb | Sn | Zn | Fe | |
| (1) Cu + Sum of Named Elements 99.6% min. | |||||
| Min (%) | 59.0 | 0.50 | |||
| Max (%) | 62.0 | 0.20 | 1.0 | Rem | 0.10 |
| Melting Point - Liquidus°F | 1650 |
|---|---|
| Melting Point - Solidus°F | 1630 |
| Densitylb/cu in. at 68°F | 0.304 |
| Specific Gravity | 8.41 |
| Electrical Conductivity% IACS at 68°F | 26 |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 67 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 11.8 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.09 |
| Modulus of Elasticity in Tensionksi | 15000 |
| Modulus of Rigidityksi | 5600 |
| Form | Temper | Temper Code | Tensile Strength (ksi) |
YS-0.5% Ext (ksi) |
Elongation (%) |
Rockwell B scale | Rockwell 30T scale | Shear Strength (ksi) |
Reduction of Area (%) |
Ultimate Tensile Strength in Shear (ksi) |
Section Size (in) |
Cold Work (%) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| * Measured at room temperature, 68°F (20°C). | ||||||||||||
| Flat Products | 1/4 Hard | H01 | 70 Typ | 17 Typ | 75 Typ | 68 Typ | 43 Typ | 0.04 | ||||
| As Hot Rolled | M20 | 55 Typ | 25 Typ | 50 Typ | 55 Typ | 55 Typ | 40 Typ | 1 | ||||
| Light Anneal | O50 | 60 Typ | 28 Typ | 45 Typ | 58 Typ | 56 Typ | 41 Typ | 0.25 | ||||
| Light Anneal | O50 | 62 Typ | 30 Typ | 40 Typ | 60 Typ | 57 Typ | 41 Typ | 0.04 | ||||
| Soft Anneal | O60 | 58 Typ | 25 Typ | 49 Typ | 56 Typ | 55 Typ | 40 Typ | 0.25 | ||||
| Flat Products & Rod | Soft Anneal | O60 | 58 Typ | 49 Typ | 40 Typ | 0.24 | ||||||
| Soft Anneal | O60 | 56 Typ | 25 Typ | 47 Typ | 60 Typ | 40 Typ | 2 | |||||
| Soft Anneal | O60 | 57 Typ | 25 Typ | 47 Typ | 60 Typ | 40 Typ | 1 | |||||
| Soft Anneal | O60 | 58 Typ | 27 Typ | 45 Typ | 60 Typ | 40 Typ | 0.24 | |||||
| Flat Products, Rod & Bar | 1/4 Hard | H01 | 69 Typ | 27 Typ | 50 Typ | 43 Typ | 1 | 8 | ||||
| 1/4 Hard | H01 | 67 Typ | 40 Typ | 35 Typ | 50 Typ | 43 Typ | 2 | 8 | ||||
| 1/4 Hard | H01 | 70 Typ | 48 Typ | 25 Typ | 50 Typ | 43 Typ | 0.24 | 10 | ||||
| 1/4 Hard | H01 | 70 Typ | 58 Typ | 17 Typ | 43 Typ | 0.04 | ||||||
| Light Anneal | O50 | 62 Typ | 30 Typ | 40 Typ | 41 Typ | 0.04 | ||||||
| Light Anneal | O50 | 63 Typ | 30 Typ | 40 Typ | 55 Typ | 42 Typ | 0.24 | |||||
| Light Anneal | O50 | 60 Typ | 28 Typ | 45 Typ | 41 Typ | 0.24 | ||||||
| Light Anneal | O50 | 62 Typ | 28 Typ | 43 Typ | 55 Typ | 42 Typ | 2 | |||||
| Light Anneal | O50 | 63 Typ | 30 Typ | 40 Typ | 55 Typ | 42 Typ | 1 | |||||
| Rod | 1/2 Hard | H02 | 75 Typ | 20 Typ | 82 Typ | 44 Typ | 1 | 20 | ||||
| 1/2 Hard | H02 | 80 Typ | 57 Typ | 20 Typ | 85 Typ | 45 Typ | 0.25 | 20 | ||||
| 1/4 Hard | H01 | 70 Typ | 48 Typ | 25 Typ | 80 Typ | 43 Typ | 0.25 | 10 | ||||
| 1/4 Hard | H01 | 69 Typ | 46 Typ | 27 Typ | 78 Typ | 43 Typ | 1 | 8 | ||||
| 1/4 Hard | H01 | 67 Typ | 40 Typ | 35 Typ | 75 Typ | 43 Typ | 2 | 8 | ||||
| Light Anneal | O50 | 63 Typ | 30 Typ | 40 Typ | 60 Typ | 42 Typ | 1 | |||||
| Light Anneal | O50 | 62 Typ | 28 Typ | 43 Typ | 60 Typ | 42 Typ | 2 | |||||
| Light Anneal | O50 | 63 Typ | 30 Typ | 40 Typ | 60 Typ | 42 Typ | 0.25 | |||||
| Soft Anneal | O60 | 58 Typ | 27 Typ | 45 Typ | 56 Typ | 40 Typ | 0.25 | |||||
| Soft Anneal | O60 | 56 Typ | 25 Typ | 47 Typ | 55 Typ | 40 Typ | 2 | |||||
| Soft Anneal | O60 | 57 Typ | 25 Typ | 47 Typ | 55 Typ | 40 Typ | 1 | |||||
| Rod & Bar | 1/2 Hard | H02 | 75 Typ | 20 Typ | 45 Typ | 44 Typ | 1 | 20 | ||||
| 1/2 Hard | H02 | 80 Typ | 57 Typ | 20 Typ | 45 Typ | 45 Typ | 0.24 | 20 | ||||
| Tube | Hard Drawn | H80 | 88 Typ | 18 Typ | 95 Typ | 35 | ||||||
Material Grades of Tubesheet
| Type of materials | Technical requirements according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
Application
1. Heat Exchangers
2. Boilers
3. Condensers
4. Reactors
5. Oil and Gas Industry
6. Air Conditioning and Refrigeration
7. Pressure Vessels
