ASTM A179/ASME SA179 Heat Exchanger Tube Cold Drawn Killed with 100% ET/HT
Price:
USD 700-1000 /TONS
MOQ:
1000KGS
Delivery Time:
20-70DAYS
Brand:
YUHONG
Product Description
Product Description

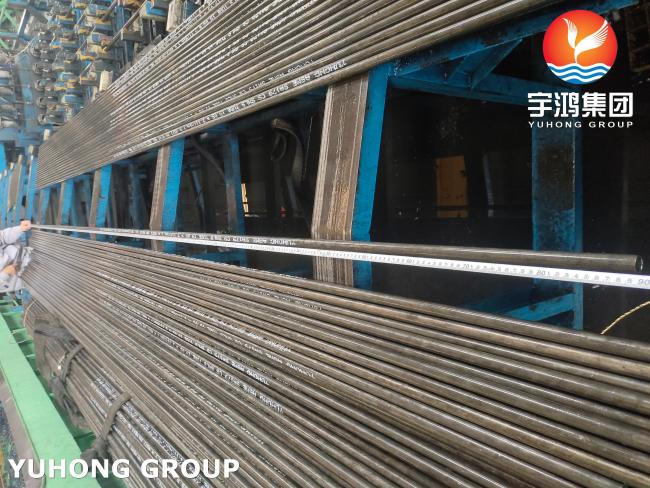

YUHONG ASTM A179 Seamless Heat Exchanger Tube Cold Drawn, with 100% ET/HT
|
Standard
|
ASTM A179,
|
|
Material
|
Carbon Steel
|
|
Size
|
WT: 1-15mm; OD: 6-168mm; Length: max 33000mm
|
|
Applications
|
For Heat-Exchangers,
Cold Condensers and High-Pressure Services, High-Temperature Services for H Constructions |
|
Manufacture
|
Tubes are manufactured by seamless process and both hot finished and cold finished are applicable.
|
|
Heat treatment
|
Hot finished tubes need not be heat treated.
Cold Finished tubes are heat treated after the final cold finishing pass at a temperature of 1200℉(650℃) or higher |
|
Test
|
Tension Test, Flaring Test, Flange Test,
Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc |
Chemical Composition
|
C
|
Mn
|
P
|
S
|
Si
|
|
0.06-0.18
|
0.27-0.63
|
≤0.035
|
≤0.035
|
≤0.25
|
Mechanical Properties
|
Tensile Streghth, min
ksi [Mpa]
|
Yield Point, min
ksi [Mpa]
|
Elongation, %
|
|
47[325]
|
26[180]
|
≥35%
|
Hardness
|
Brinell Hardness
|
Rockwell Hardness Number
|
|
WT≥0.200in(5.1mm)
|
WT<0.200in(5.1mm)
|
|
137HRB
|
77HRB
|
Tolerance for OD and WT(SA-450/SA-450M)
|
OD in(mm)
|
+
|
-
|
WT in(mm)
|
+
|
-
|
|
<1''(25.4)
|
0.10
|
0.10
|
≤1.1/2''(38.1)
|
20%
|
0
|
|
1''~1.1''(25.4~38.1)
|
0.15
|
0.15
|
>1.1/2''(38.2)
|
22%
|
0
|
|
>1.1/2''~<2''(38.1~50.8
|
0.20
|
0.20
|
|
|
|
|
2''~<2.1/2''(50.8~63.5)
|
0.25
|
0.25
|
|
|
|
|
2.1/2''~<3''(63.5~76.2)
|
0.30
|
0.30
|
|
|
|
|
3''~<4''(76.2~101.6)
|
0.38
|
0.38
|
|
|
|
|
4''~<7.1/2''(101.6~190.5)
|
0.38
|
0.64
|
|
|
|
|
>7.1/2~9''(190.5~228.6)
|
0.38
|
1.14
|
|
|
