ASTM A182 F92 Alloy Steel 90° Elbow 6000# High Pressure Forged Pipe Fittings
B16.11 Forged ASTM A182 F92 Alloy Steel CLASS 6000 FORGED 90DEG. Elbow
- High-Temperature Strength: Excellent resistance to oxidation and carburization.
- Toughness: Maintains strength and ductility under varying temperatures.
- Weldability: Generally considered to be weldable with appropriate techniques.
ASTM A182 F92 Equivalent Grade
| Trade Name | Grade | UNS # | Flanges |
| F92 | F92 | K92460 | A182 / SA182 |
ASTM A182 F92 Chemical Composition
| Grade | C | Cr | Si | S | Mn | P | Mo |
|---|---|---|---|---|---|---|---|
| ASTM A182 F92 | 0.08 – 0.15 | 8.0 – 9.5 | 0.20 – 0.50 | 0.010 max | 0.30 – 0.60 | 0.020 | 0.85 – 1.05 |
ASTM A182 F92 Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A182 F92 | 415 | 585 | 20 |
| Sr. No. | Material | Size | Sch. & Class | Specification | Item |
| 1. | Forged Stainless Steel | 15 NB To 100 NB |
3000, 6000 & 9000 LBS |
A-182 S/W & SCRD ANSI B16.11 |
|
| 2. | Forged Alloy Steel | 15 NB To 100 NB |
3000, 6000 & 9000 LBS |
A-182 S/W & SCRD ANSI B16.11 |
|
| 3. | Forged Carbon Steel | 15 NB To 100 NB |
3000, 6000 & 9000 LBS |
A-105 S/W & SCRD ANSI B16.11 |

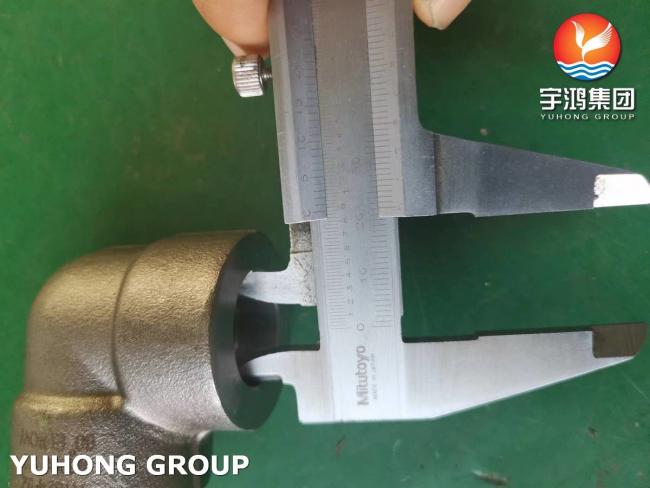

| Product Pictures and Drawings | ||||||||||||||||||||
|
||||||||||||||||||||
High Pressure Fittings are used in various industrial processes.
- They are used for lines conveying flammable, toxic or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI.
- They are used only in conjunction with ASME Pipe and are available in the same size range.
- They are used in areas where pipe-work is permanent and are designed to provide good flow characteristics.
- They are are produced to several ASTM standards and are manufactured in accordance with ASME B16.11. The B16.11 standard covers pressure-temperature ratings, dimensions, tolerances, marking, and material requirements for forged carbon and alloy steel. Acceptable material forms are forgings, bars, seamless pipe, and Seamless Tubeswhich conform to the fittings chemical requirements, melting practices, and mechanical property requirements of ASTM A105, A182, or A350.
- They are available in three pressure ratings: Class 3000, 6000 and 9000.
Applications
1. Oil and Gas Industry
Used in pipelines for transporting oil and gas, particularly in high-pressure and high-temperature settings.
2. Power Generation
Essential in steam and cooling systems, where they facilitate the movement of fluids and gases in power plants.
3. Chemical Processing
Commonly used in chemical plants for the transportation of corrosive chemicals, requiring materials that can withstand harsh environments.
4. Water & Wastewater Treatment
Utilized in systems that handle water purification and municipal wastewater management, ensuring efficient flow control.
5. Manufacturing and Fabrication
Found in various manufacturing processes, including those dealing with high-pressure steam, water, or gases.
6. Aerospace and Defense
Used in applications requiring lightweight yet strong fittings to manage fluids and gases efficiently under extreme conditions.
7. HVAC Systems
Employed in heating, ventilation, and air conditioning systems, enabling the distribution of air and other gases effectively.
