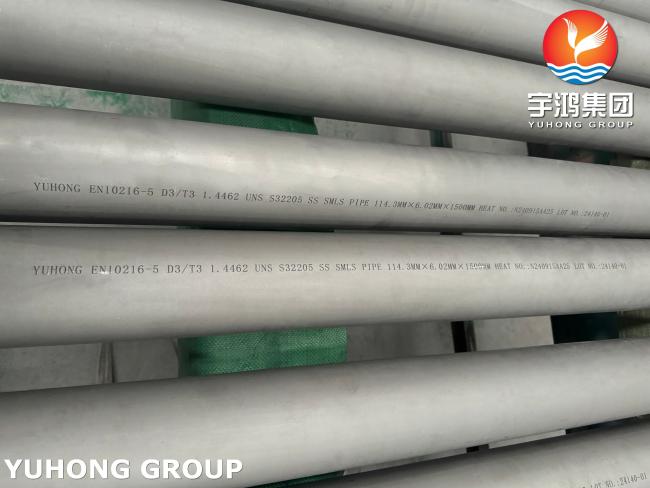

EN 10216-5 1.4462 UNS S32205 Duplex 2205 Stainless Steel Seamless Pipe
EN 10216-5 1.4462 UNS S32205 Duplex 2205 Stainless Steel Seamless Pipe
Equivalent Grade of Duplex 2205
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 2205 | S31803 / S32205 | 318S13 | - | 1.4462 | X2CrNiMoN22-5-3 | 2377 | SUS 329J3L |
Corrosion Resistance
- Pitting Corrosion: Has a high pitting resistance equivalent number (PREN), typically around 40. This makes it suitable for use in aggressive environments, such as those containing chlorides.
- Stress Corrosion Cracking (SCC): Better resistance to SCC compared to conventional austenitic stainless steels, making it a preferred choice in chloride-rich environments.
- General Corrosion: Excellent resistance to general corrosion in a variety of environments, including acids.
Testing and Standards
- Non-Destructive Testing (NDT): Pipes are often subjected to NDT methods (like ultrasonic testing) to ensure integrity and detect any internal flaws.
- Dimensional and Mechanical Tests: Encompasses tests for tensile strength, yield strength, elongation, and hardness as per the standard requirements.
- Hydrostatic Testing: Each pipe may also undergo hydrostatic testing to ensure it can withstand pressure without leaking.
Fabrication and Forming
- Welding:
- Suitable for welding using most conventional methods (TIG, MIG, etc.).
- It is recommended to use filler materials that match the composition of the base metal to ensure corrosion resistance and mechanical properties.
- Post-weld heat treatment (PWHT) is not typically required, but it should be controlled to prevent overheating.
- Cold Working: Duplex steels can be cold worked, but this should be done carefully to avoid work hardening, which can lead to reduced ductility.
Other Material Grade
|
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP314,TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501,1.4841 |
|
GOST Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Applications
- Oil and Gas Industry: Used in pipelines, fittings, and components for offshore and subsea applications due to its high strength and corrosion resistance.
- Chemical Processing: Ideal for processes involving aggressive chemicals, particularly in environments where chlorides are present.
- Marine Applications: Frequently used in hulls, vessels, and other marine structures exposed to seawater.
- Heat Exchangers: Suitable for heat exchangers in both seawater and industrial applications.
