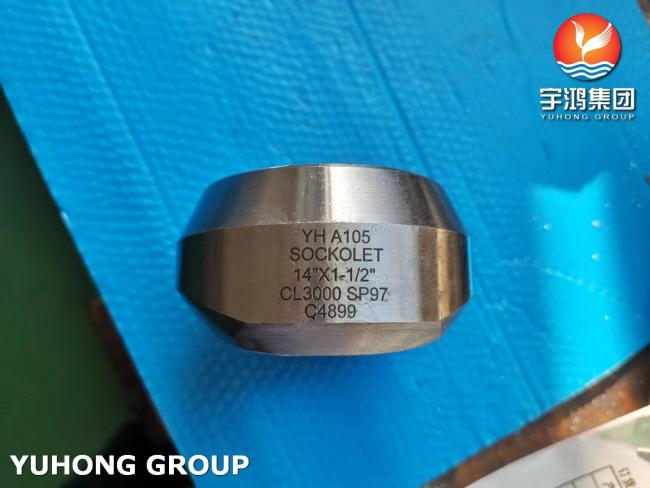

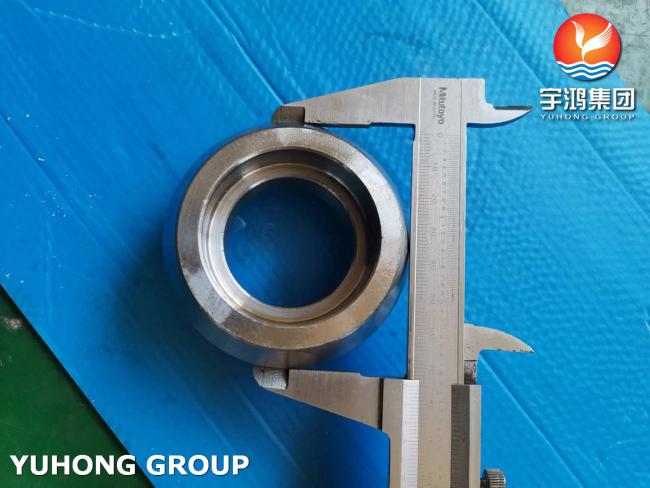

ASTM A105 Carbon Steel Fitting MSS-SP- 97 Sockolet For Oil And Gas
ASTM A105 Carbon Steel Fitting MSS-SP- 97 Sockolet For Oil And Gas
What is MSS SP-97?
The MSS SP-97 standard defines the design, size, materials, and pressure ratings of integrally reinforced branch outlet fittings, including welded, sleeved, and threaded pipe. These fittings provide branch connections on piping systems and are an integral part of establishing safe, reliable connections. By specifying reinforcement requirements, MSS SP-97 helps ensure that branch outlets can withstand the pressure of high-pressure environments without the need for additional reinforcement.
Carbon Steel Sockolet Weight In Class 3000
| DN | 3000LB |
|---|---|
| 6 | 0.05 |
| 8 | 0.05 |
| 10 | 0.09 |
| 15 | 0.14 |
| 20 | 0.16 |
| 25 | 0.27 |
| 32 | 0.39 |
| 40 | 45 |
| 50 | 0.73 |
| 65 | 125 |
| 80 | 1.72 |
| 90 | 1.95 |
| 100 | 3.29 |
Benefits of using MSS SP-97 fittings
-Enhanced safety: Provides a reinforced connection, reducing the risk of leaks and failures.
-Versatility: Suitable for use with a wide range of materials, including carbon, alloy and stainless steel.
-Easy to install: Available in threaded, socket weld and butt weld configurations for installation flexibility.
-Durability: Manufactured to withstand high pressure and temperature conditions, ensuring durability.
Chemical Composition:
| Chemical Composition of A105 | |
|---|---|
| Elements | Composition, % |
| Carbon [C] | ≤0.35 |
| Manganese [Mn] | 0.60-1.05 |
| Phosphorus [P] | ≤0.35 |
| Sulfur [S] | ≤0.40 |
| Silicon [Si] | 0.10-0.35 |
| Copper [Cu] | ≤0.40 |
| Nickel [Ni] | ≤0.40 |
| Chromium [Cr] | ≤0.30 |
| Molybdenum [Mo] | ≤0.12 |
| Vanadium [V] | ≤0.08 |
A105 Physical Properties:
| Density (lb / cu. in.) | 0.284 |
| Specific Gravity | 7.9 |
| Thermal Conductivity | 360 |
| Mean Coeff Thermal Expansion | 6.7 |
| Modulus of Elasticity Tension | 30 |
| Specific Heat (Btu/lb/Deg F - [32-212 Deg F]) | 0.107 |
| Melting Point (Deg F) | 2740 |
| Modulus of Elasticity Torsion | 11 |
Mechanical Properties:
| Tensile Strength min. | Yield Strength min. | Elongation min. | Reduction of Area, min. | Hardness | ||
|---|---|---|---|---|---|---|
| MPa | ksi | MPa | ksi | % | % | HBW |
| 485 | 70 | 250 | 36 | 22 | 30 | 137-187 |
Applications:
-Oil and Gas
-Power Generation
-Chemical Processing
-Water Treatment
-Food and Beverage
