ASTM B177 C70600 Square Tubesheet Ultimate Heat Exchanger Component
Price:
NEGOTIABLE
MOQ:
500KGS
Delivery Time:
10-90 Days
Brand:
YUHONG
Product Description

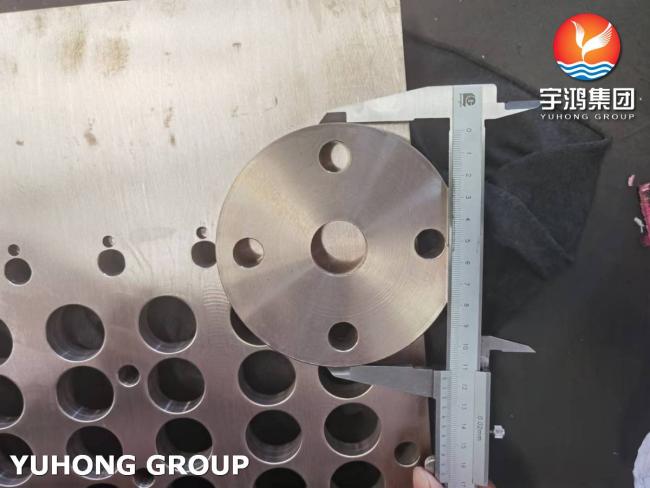

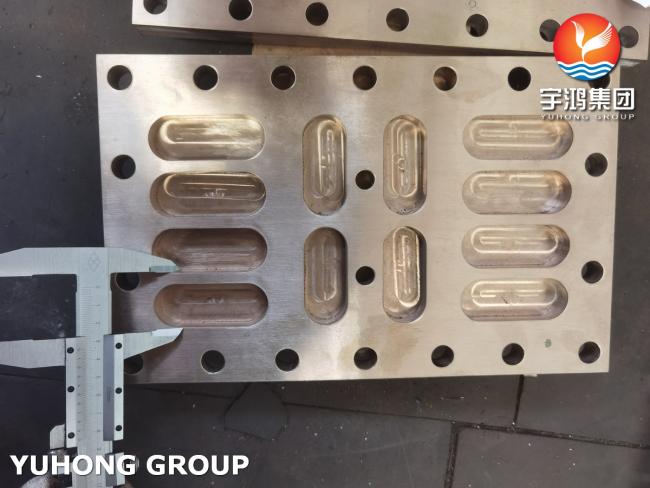

ASTM B177 C70600 Square Tubesheet For Heat Exchangers
C70600 square tubesheet refers to a square tubesheet made from this specific copper-nickel alloy. A tubesheet is a perforated sheet or welded structure used to separate two fluid streams while allowing heat transfer between them. It usually has holes drilled or punched to accommodate the tubes of a heat exchanger.
C70600 is a copper-nickel alloy. It is often referred to as 90/10 (copper/nickel) copper-nickel. Tubesheets made from it have excellent corrosion resistance (especially in saltwater environments) and are often used in marine and industrial applications.
Copper Nickel 90/10 Chequered Plate Equivalent Grade
| STANDARD | WERKSTOFF NR. | UNS |
| Cu-Ni 90/10 | 2.0872 | C70600 |
Cu-Ni 90/10 Cold Rolled Sheets Chemical Composition
| Grade | Cu | Mn | Pb | Fe | Zn | Ni |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | .05 max | 1.8 max | 1 max | 9-11 max |
Cupro Nickel 90/10 Polished Cold Drawn Plates Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 90/10 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi - 35,000, MPa - 241 | 30 % |
Applications:
Shipbuilding
Power plants
Desalination plants
HVAC systems
