ASME SA105N Carbon Steel Self Reinforced Nozzle For Heat Exchanger
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
7-45DAYS
Brand:
Yuhong
Product Description

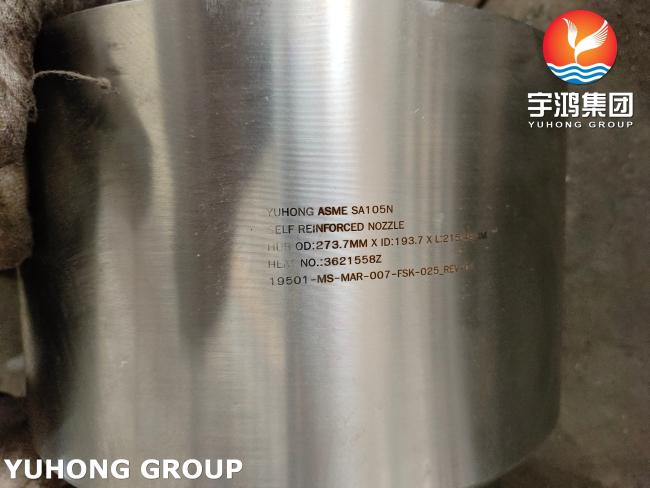

ASME SA105N Carbon Steel Self Reinforced Nozzle for heat exchanger
Key Features:
- Material: ASME SA105N Carbon Steel, an alloy designed for excellent mechanical properties and corrosion resistance, making it ideal for high-pressure and high-temperature environments, such as heat exchangers.
- Design: Self-Reinforced Nozzle, which provides enhanced strength and stability, allowing for effective attachment and sealing between the nozzle and the heat exchanger shell.
- Application: Specifically engineered for heat exchangers, these nozzles are designed to ensure a secure and robust connection to pipe systems, providing both mechanical support and fluid-tight integrity.
Chemical Composition:
| Element | ASME SA105N (Carbon Steel) |
|---|---|
| Carbon (C) | 0.35% (max) |
| Manganese (Mn) | 0.60% - 1.00% |
| Phosphorus (P) | 0.035% (max) |
| Sulfur (S) | 0.035% (max) |
| Silicon (Si) | 0.10% - 0.40% |
| Chromium (Cr) | ≤ 0.30% |
| Nickel (Ni) | ≤ 0.25% |
Mechanical Properties:
| Property | ASME SA105N (Carbon Steel) |
|---|---|
| Tensile Strength | 485 MPa (min) |
| Yield Strength | 205 MPa (min) |
| Elongation | 20% (min) |
| Hardness | Brinell hardness: 119 (max) |
Advantages:
- High Strength and Durability: SA105N carbon steel provides the necessary strength to withstand high-pressure conditions in heat exchangers, ensuring a long-lasting and reliable performance.
- Cost-Effective: As a commonly used material, SA105N carbon steel is a cost-effective solution for nozzles in heat exchangers while still offering good mechanical properties.
- Corrosion Resistance: While not as corrosion-resistant as stainless steel, SA105N offers good resistance to oxidation and corrosion in non-extreme environments, ensuring extended service life.
- Self-Reinforced Design: The self-reinforced structure adds strength and stability, reducing the need for additional reinforcements and simplifying the nozzle design.
Applications:
- Heat Exchangers: Used in both shell-and-tube and air-cooled heat exchangers, connecting piping systems to heat exchanger units.
- Pressure Vessels: Providing a secure connection between piping and the vessel itself, especially in high-pressure applications.
- Chemical Processing: For applications in chemical and petrochemical industries, where the nozzle provides a reliable interface for fluid transfer.
- Power Plants: For use in the cooling systems of boilers, condensers, and heat exchangers in power plants.
