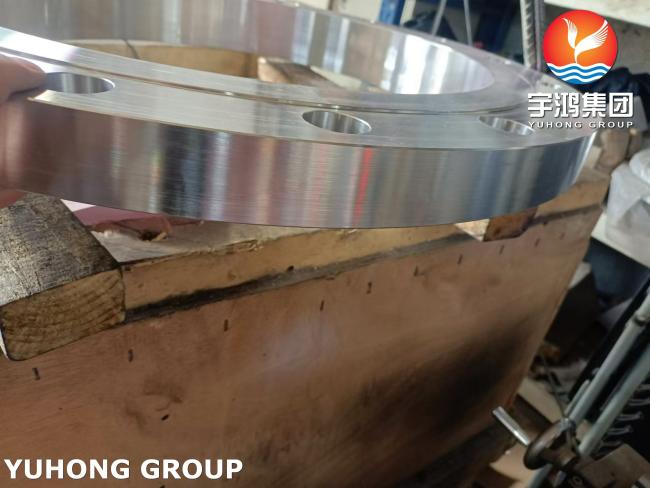

ASTM A182 F904L / UNS N08904 Stainless Steel Slip On Flange B16.5 SORF Flange
ASTM A182 F904L / UNS N08904 Slip On Stainless Steel Flanges B16.5 Forged SORF Flange
ASTM A182 F904L stainless steel Flange is a premium material designed for highly demanding applications where common stainless steels like 304 and 316 would fail. Its superior corrosion resistance (in the corrosive environments, including sulfuric acid, phosphoric acid, and chloride-containing solutions.), durability, and performance in extreme environments justify its higher cost. 904L has a polished, attractive finish, making it suitable for architectural and decorative applications. In contrast, 304 and 316 are more economical and suitable for general-purpose usage with less demanding conditions.
Flange Specifications
-
Dimensions: ASME B16.5 (up to 24" NPS) or B16.47 for larger sizes.
-
Pressure Ratings: Class 150 to 2500 (dependent on size and design).
-
Face Finish: Raised Face (RF) typically has a serrated finish (125-250 µin) for better gasket grip.
Equivalent Grades of ASTM A182 F904L Stainless Steel SORF Flange
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR | JIS | BS | KS |
| SS 904L | 1.4539 | N08904 | X1NiCrMoCu25-20-5 | Z2 NCDU 25-20 | SUS 904L | 904S13 | STS 317J5L |
Chemical Composition of ASTM A182 F904L Stainless Steel SORF Flange
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
Mechanical Properties of ASTM A182 F904L Stainless Steel SORF Flange
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Summary Table: 904L vs. Common Stainless Steels
| Property | 904L Stainless Steel | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|---|
| Nickel Content | 23-28% | 8-12% | 10-14% |
| Molybdenum Content | 4-5% | 0% | 2-3% |
| Copper Content | 1-2% | 0% | 0% |
| Corrosion Resistance | Exceptional | Moderate | Good |
| Cost | High | Low | Moderate |
| Applications | Highly corrosive environments | General-purpose | Marine, medical, chemical |
Applications
-
Chemical processing equipment
-
Seawater desalination plants
-
Oil and gas industry components
-
Pharmaceutical manufacturing
-
Heat exchangers and condensers
-
Marine and offshore structures
